• Model NO.：CBWKA-F3**-AFQ
• Nominal Displacement：6.0 Ml,R
• Rated Pressure：200 Bar
• Maximum Pressure：250 Bar
• Minimum Speed：800 Rpm
• Rated Speed：2500 Rpm
• Maximum Speed：3000 Rpm
• Volume Efficiency：92%
• Warranty：1 Year
• Certificate：ISO9001:2008
• Transport Package：1 Piece , Carton

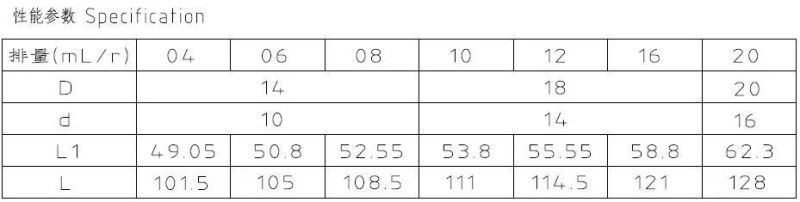

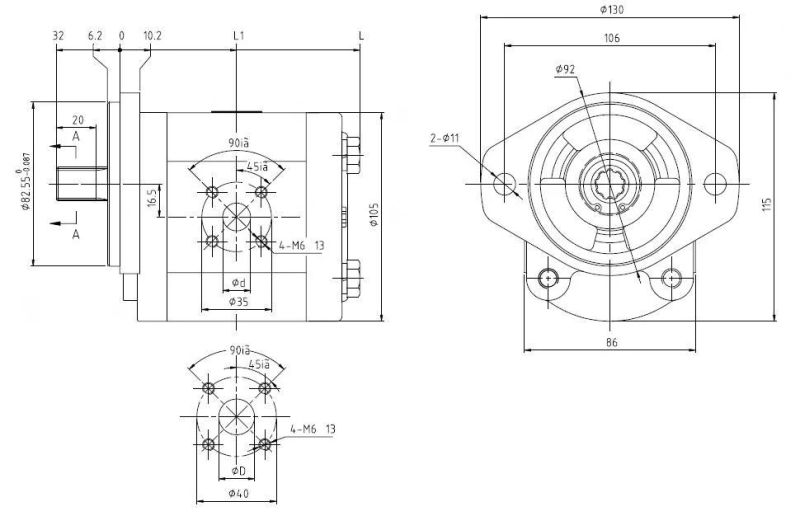

• Specification：As drawing
• Trademark：HCHC
• Origin：Anhui, China
• HS Code：8413602220
• Production Capacity：8000 Sets Per Month

Basic Info.

Model NO. CBWKA-F3**-AFQ Nominal Displacement 6.0 Ml/R Rated Pressure 200 Bar Maximum Pressure 250 Bar Minimum Speed 800 Rpm Rated Speed 2500 Rpm Maximum Speed 3000 Rpm Volume Efficiency 92% Warranty 1 Year Certificate ISO9001:2008 Transport Package 1 Piece / Carton Specification As drawing Trademark HCHC Origin Anhui, China HS Code 8413602220 Production Capacity 8000 Sets Per Month

Product Description

 Performance Characteristics:CBWKA-F3**-AFφ

★ High strength aluminum alloy housing.
★ The connection form of input shaft includes flat key, rectangle spline, involute spline and flat end.
★ The connection form of oil inlet and oil outlet has options of thread and flange.
★ The automatic compensation mechanism of axial clearance enables gear pump to maintain a long-time high efficiency work.
★ High working pressure and wide speed range.
