• Model NO.：SOV-RCH series
• Structure：Piston Type
• Material：Steel
• Name：Single Acting Hollow Plunger Hydraulic Jack Cylind
• Cylinder Capacity Ton (Kn)：13 (125)-95 (931)
• Stroke(mm)：8-155
• Cylinder Effective Area(Cm2)：17, 9-133
• Oil Capacity(Cm3)：14-1259
• Collapsed Height (a)：55-330mm
• Extended Height (B)(mm)：63-485
• out- Side Dia- Meter (D)：69-212mm
• Center Hole Dia. (Y) mm：19, 6-79
• Weight(Kg)：1, 5-63
• Transport Package：in a Wooden Case
• Specification：CE, ISO9001
• Trademark：SOV, Can OEM
• Origin：China
• HS Code：841221
• Production Capacity：5000sets Per Month

Model
NumberCylinder
CapacityStrokeCylinder
Effective
AreaOil
CapacityCollapsed
Height
(A)Extended
Height
(B)Out-
Side
Dia-
Meter
(D)Center
Hole
Dia.
(Y)Weight Ton (kN)MmCm2Cm3MmMmMmMmKgSOV-RCH-12013 (125)817,91455636919,61,5SOV-RCH-121*4217,9751201626919,62,8SOV-RCH-12114217,9751201626919,62,8SOV-RCH-1237617,91361842606919,64,4SOV-RCH-202*20 (215)4930,71501622119826,97,7SOV-RCH-20615530,74763064619826,914,1SOV-RCH-302*30 (326)6446,629817824211433,310,9SOV-RCH-30615546,672233048511433,321,8SOV-RCH-603*60 (576)7682,362624732315953,828,1SOV-RCH-60615382,3125932347615953,835,4SOV-RCH-1003*95 (931)76133101125433021279,063
Description

§  SOV hollow plunger cylinders provide versatility in testing, maintenance and tensioning applications.The hollow plunger design allows for both pull and push forces
§  Single-acting spring return
§  Cylinders are nickel-plated, floating center tube on models over 20 tons increases product life
§  Baked enamel finish for increased corrosion resistance
§  Collar threads for easy fixturing
§  SOV-RCH-120 cylinders include AR-630 coupler and has 1/4 NPTF port
§  SOV-RCH-121 and SOV-RCH-1211 cylinders have FZ-1630 reducer and AR-630 coupler, all other models feature CR-400 coupler

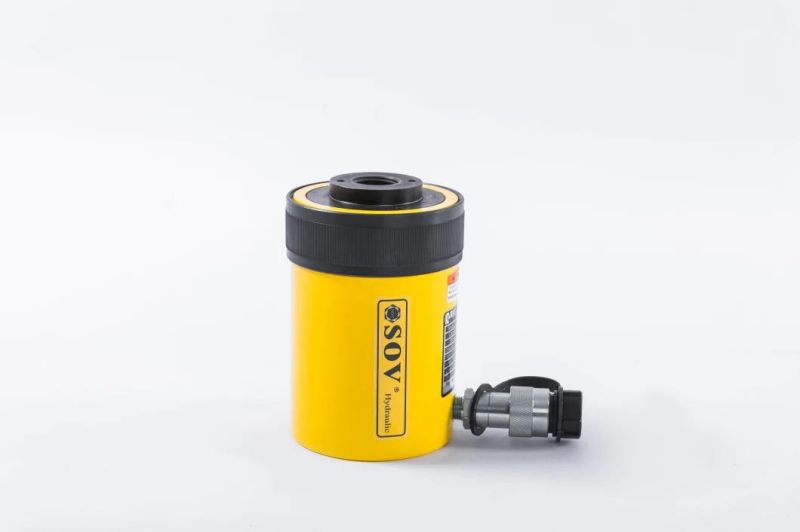

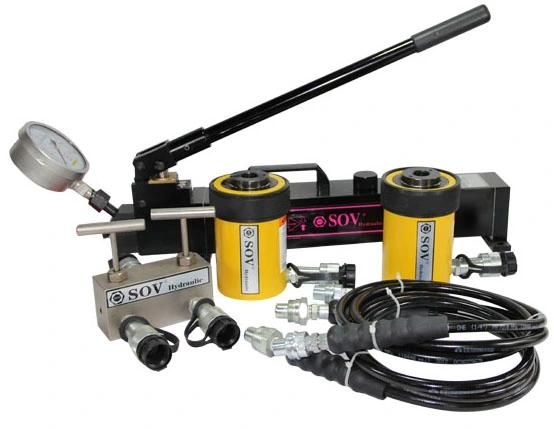

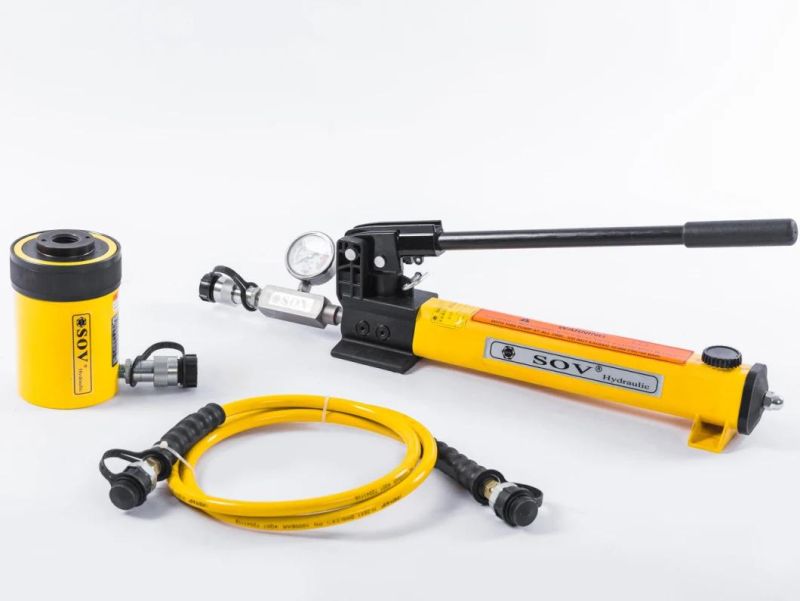

Photos

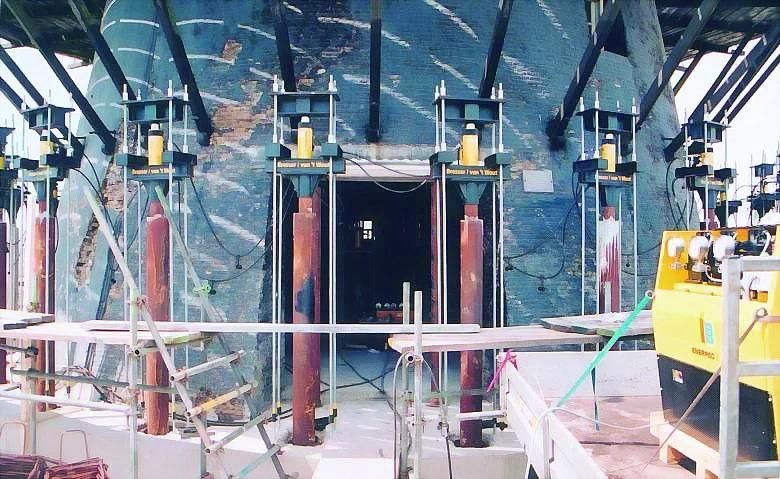

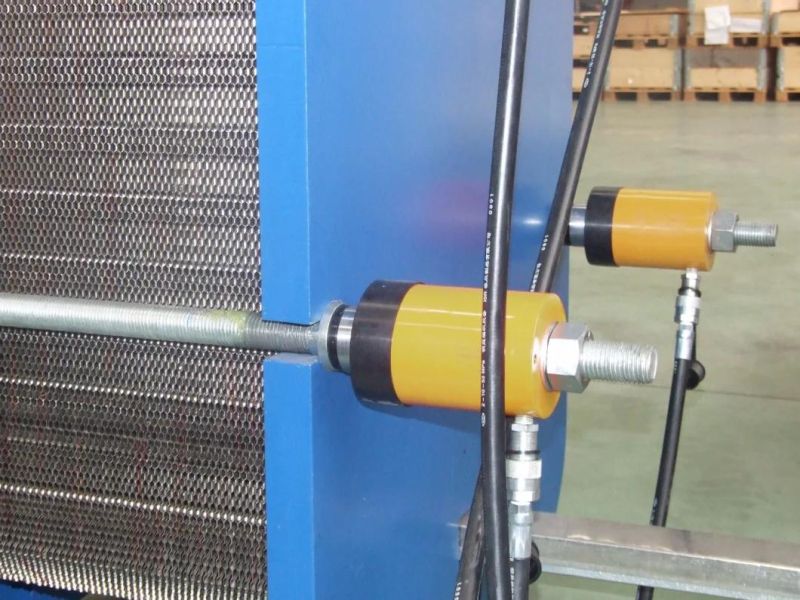

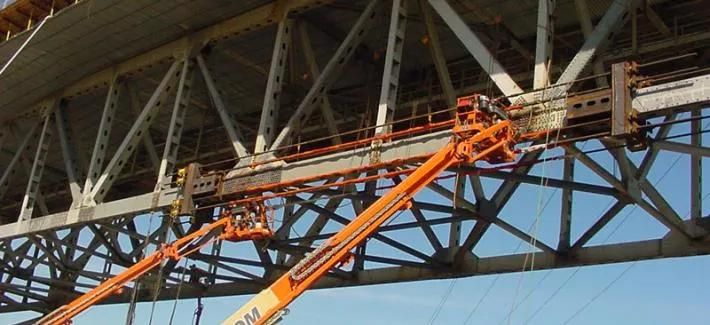

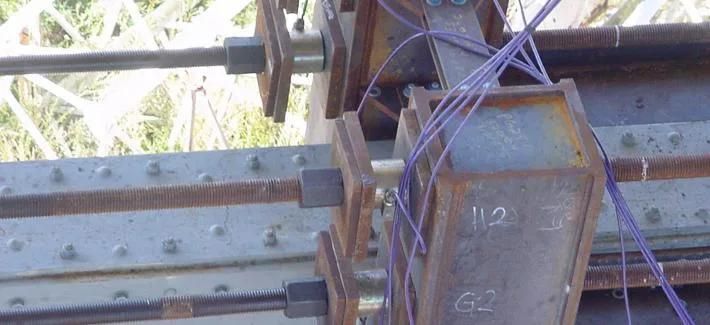

Applications








Packing

Packaging information:In a wooden case

Customer warranty:Free repairment and replacement for one year.

Company information


SOV Hydraulic Technology (Shanghai) Co., Ltd is the foremost hydraulic tools manufacturer and has the largest hydraulic tools factory in China.Since 1995, we've successfully transferred from OEM factory for ENERPAC & TITAN to create our own brand SOV with products and factory certified by CE and ISO 9001.SOV hydraulic tools have been exported to more than 40 countries in the global world market won by reliable quality, excellent after-sales service, competitive price and professional marketing service.
SOV has always been focusing on providing customers with the most stable and the safest hydraulic tools and helping customers to achieve the maximum efficiency with our suggested hydraulic solution.SOV earned good reputation from Chinese local market and international market for the following SOV main product lines,

?Hydraulic Cylinder (5ton-3000ton).--Single Acting--Double Acting--Hollow Plunger.
?PLC Based Synchronous Lift Systems( 4-72 lift pointes for house translation or leveling, bridge supporting and tank welding supporting, etc.)
?Hydraulic/ Electric /Pneumatic Torque Wrench (100Nm-160000Nm).
?Hydraulic Bolt Tensioner (M24-M600).
?Hydraulic Nut.
?Hydraulic puller (5-1000 ton).
?Hydraulic pump.--Hand and Electric Type (Max Up To 4000Bar).
?Hydraulic Hose, Quick Coupling, Manifold and other hydraulic tools accessories.

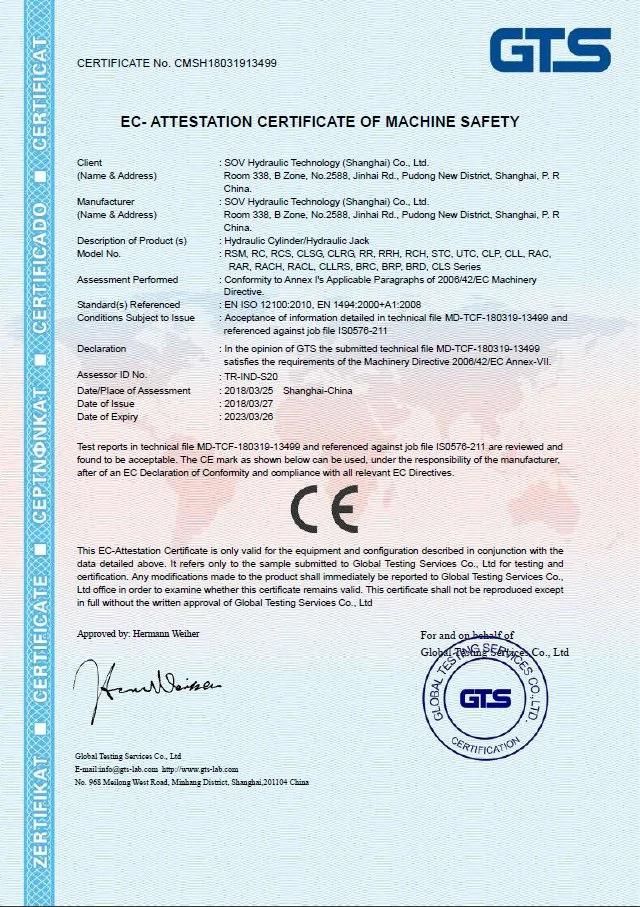

Certificate
