Bi-Directional Hydraulic Gear Motor with out Bearing

Shanghai Guorui Hydraulic Technology Co., Ltd.
  • Certification：CE
  • Type：Hydraulic Motor
  • Name：Grh Ce Proved Hydraulic Gear Pump Type Gear Motor
  • Material：Cast Iron or Aluminum
  • Warranty：1 Year
  • Feature：High Pressure

Base Info

  • Model NO.：2AMF**-B-O
  • Displacement：0.16cc,R to 99cc,R
  • Rotation：Bi-Direction, Ccw, Cw
  • Mode of Drain：Inner Drain, Outside Drain
  • Continuous Work Pressure：200bar
  • Seal：FKM Seal or NBR Seal
  • Hydraulic Motor：Gear-Type Hydraulic Motor
  • Transport Package：Neutral Package,Wooden Pallet
  • Specification：CE; ISO9001: 2008
  • Trademark：GRH
  • Origin：Jiangsu Yancheng
  • HS Code：84122910
  • Production Capacity：100, 000PCS Per Year

Description

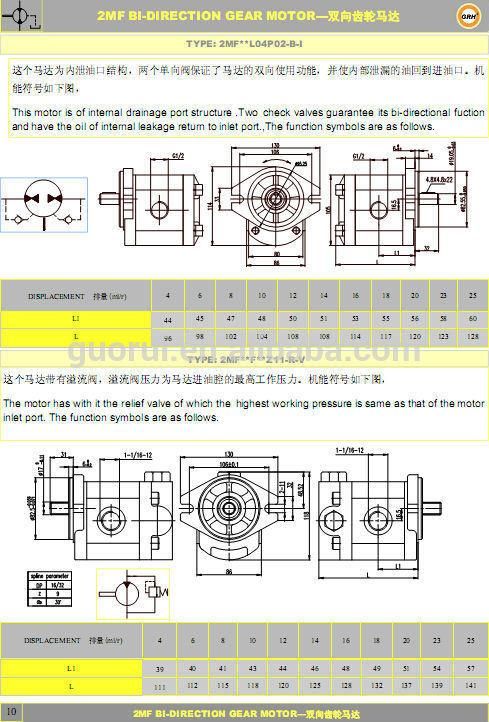

gear motor modeldisplacement(ml/r)Rated pressure(bar)Max pressure(bar)Min speed(r/min)Max speed(r/min)1MF1.1-5.120025065040001MF5.1-8.520025065036002MF4-820025060040002MF8-1520028060035002MF15-2020028060030002MF20-2620028060025002MF26-3020028060020002.5MF10-2020025050036002.5MF20-3020025050036002.5MF30-4018025050030003MF22-4320025050030003MF43-7020025050025003MF70-8920025050022003.5MF52-7317021050036003.5MF73-10015018050030003.5MF100-1151201405002500
Bi-Directional Hydraulic Gear Motor with out Bearing



Company Information

Q: What is our main application?A: 1.Hydraulic system;    2.Agriculture machine;    3.Constraction machine;                  4. Automobile:                            5.Local distributorsQ: What Is The Payment Terms.A: Full order: 30% as deposit, the balance before shipment;     Small order /sample order: full payment in advance;                    Q: Can I Mark My Own Brand On The Pump?A: Yes. Full order could mark your logo and code;Q: What is our main export market?A: America(45.5%):The United States, Canada,  Brazil;  Europe(30.8%):Italy,Germany,England,Holland,Spain,Poland.  Asia(18.5%):Korea,India,Turkey,Iran, Syria, Israel;                   Others(5.8%):
