Hydraulic Parts

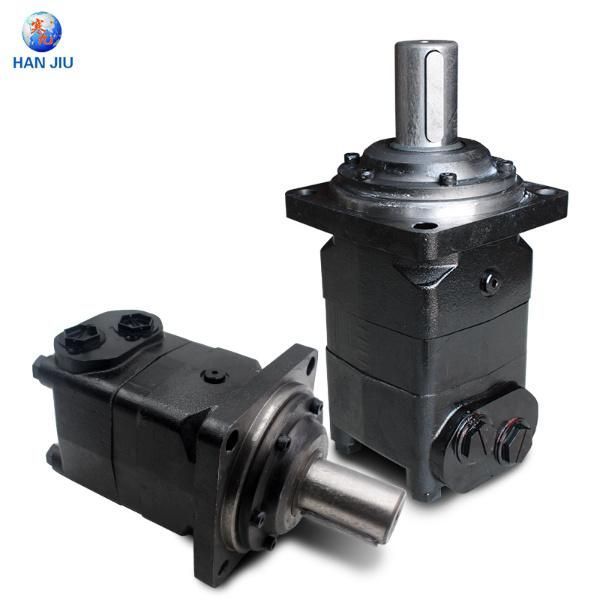

Wire Sawing Machine Cycloid Hydraulic Motor Bmv-400 Omv400 Smooth Operation High Pressure

Shijiazhuang Hanjiu Technology Co., Ltd.
  • Certification:CE
  • Pressure:High Pressure
  • Work Temperature:High Temperature
  • Feature:Wear-Resistant
  • Material:Alloy Steel
  • Transport Package:Carton Packing, and Finally with Pallet or Wooden

Base Info

  • Model NO.:BMV
  • Specification:BMV
  • Trademark:HANJIU
  • Origin:China
  • HS Code:8708941000
  • Production Capacity:500, 000 Sets Per Year

Description

TypeBMV 315BMV 400BMV 500BMV 630BMV 800BMV 1000Geometric displacement (cm3 /rev.)333419518666801990Max. speed (rpm)cont.510500400320250200int.630600480380300240Max. torque (N·m)cont.92011801460166018802015int.111014101760194021102280peak129016402050221024702400Max. output (kW)cont.384747403328.6int.465656564440Max. pressure drop (MPa)cont.202020181614int.242424211816peak282828242118Max. flow (L/min)cont.160200200200200200int.200240240240240240Weight (kg)31.832.633.534.936.538.6

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.


Wire Sawing Machine Cycloid Hydraulic Motor Bmv-400 Omv400 Smooth Operation High PressureWire Sawing Machine Cycloid Hydraulic Motor Bmv-400 Omv400 Smooth Operation High PressureWire Sawing Machine Cycloid Hydraulic Motor Bmv-400 Omv400 Smooth Operation High Pressure

Wire Sawing Machine Cycloid Hydraulic Motor Bmv-400 Omv400 Smooth Operation High Pressure
Wire Sawing Machine Cycloid Hydraulic Motor Bmv-400 Omv400 Smooth Operation High Pressure


Applicaions:

The BMV orbital motor can widely use for the following machines:

* Soil Compactor
* skid loader
* Food Processing
* drilling rig machine
* transport mixer
* log splitter
* waste plant conveyors


Shijiazhuang HanJiu technology co., LTD., is specialized in the production of BM series cycloid hydraulic motor, the BZZ redirector enterprise, my factory has dozens of high-quality, professional engineering and technical personnel, and more than in 2010, has introduced the most advanced production equipment, is in northern China's largest factories, production of more than 300000 units a year.
My factory specializes in designing and producing the motors and steering gear of any type, from large to small, from low to high, and so on. And can replace danfoss, Eaton, M+S series models. Products are widely used in engineering machinery, mining machinery, metallurgical machinery, petroleum machinery, agricultural machinery, injection molding machinery, fishery machinery and other fields.
My factory take the good faith first, quality first for the purpose, from the employee on-boarding, raw materials into the factory, from parts processing, assembly proposal until products, has a relatively perfect system of product quality. And through CE certification. Our factory is dedicated to the establishment of an internationally renowned brand, looking forward to the long-term cooperation with more demand of hydraulic products.





Hanjiu Hydraulic gear pump for any hydraulic system, our company uses high-end machine tools, excellence, the most humane service, manufacture and service the world, with good products and services to serve the world, welcome advice.
