High Pressure Hydraulic Gear Oil Pump Hydraulic Power Unit Cbwcd-F206-CF1z
HEFEI CHANGYUAN HYDRAULIC CO., LTD.- Certification：ISO9001
- Pressure：High Pressure
- Work Temperature：Normal Temperature
- Installation：Vertical
- Material：Aluminum Alloy
- Product Name：Hydraulic Triple Gear Pump
Base Info
- Model NO.：CBWCD-F206-CF1Z
- Nominal Displacement：6.0 Ml,R
- Rated Pressure：200 Bar
- Maximum Pressure：250 Bar
- Minimum Speed：800 Rpm
- Rated Speed：2500 Rpm
- Maximum Speed：3000 Rpm
- Volume Efficiency：92%
- Warranty：1 Year
- Certificate：ISO9001:2008
- Transport Package：1 Piece , Carton
- Specification：As drawing
- Trademark：HCHC
- Origin：Anhui, China
- HS Code：8413602220
- Production Capacity：8000 Sets Per Month
Description
Volume Efficiency
(≥%)
800

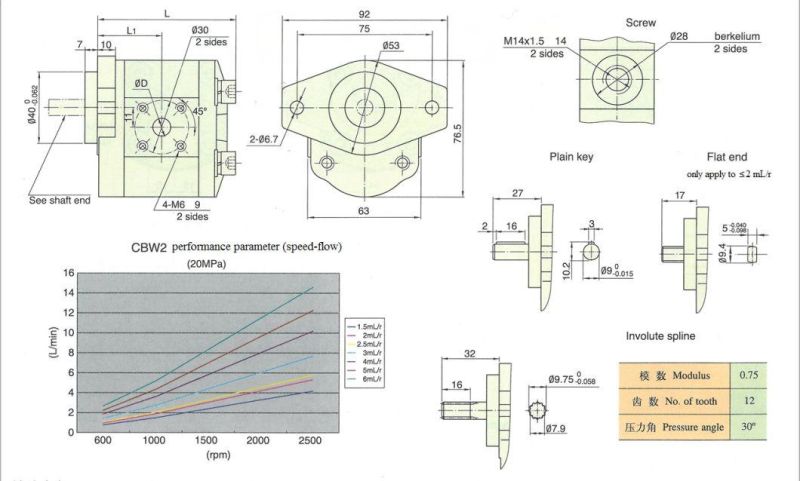

Outline Dimensions:
