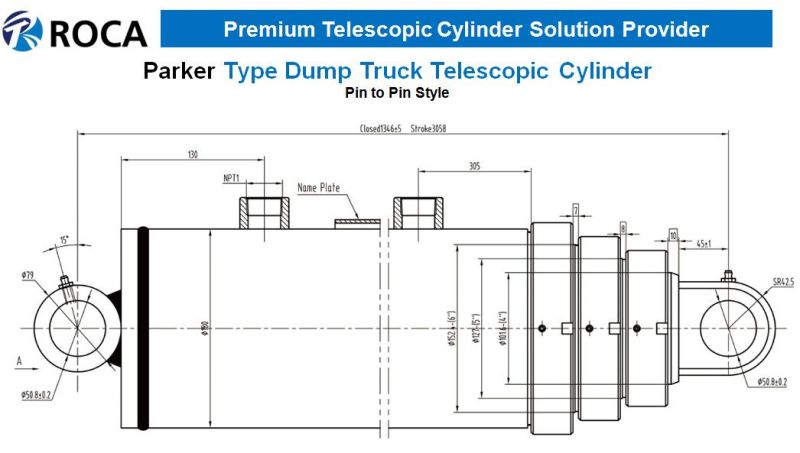

Parker Type 3 Stages Sat S63DC-102-120 Replacement Dump Truck Hoist Cylinder
XIAMEN ROCA IMP.& EXP. CO., LTD.- Certification：CE, ISO9001
- Pressure：Medium Pressure
- Work Temperature：Normal Temperature
- Acting Way：Single Acting
- Working Method：Straight Trip
- Adjusted Form：Regulated Type
Base Info
- Model NO.：S63DC-102-120
- Structure：Piston Type
- Material：Alloy Steel
- Sku：3771413325
- Stroke：120.00"

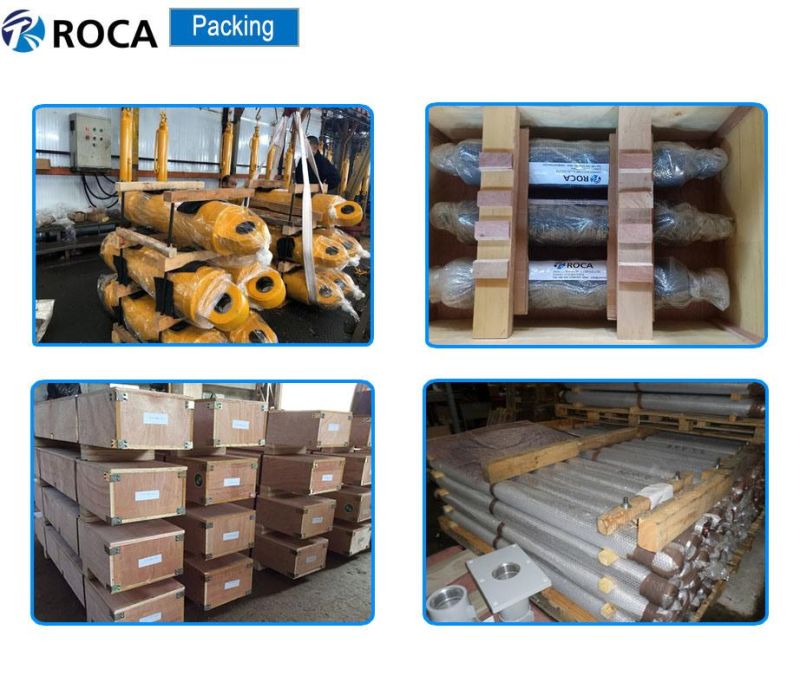

- Transport Package：Plywood Case
- Specification：Stages: 3
- Trademark：ROCA
- Origin：China
- HS Code：8412210000
- Production Capacity：1000000
Description
Parker Type Single Acting Telescopic Cylinder ROCA Model No. Model No. First Stage Diameter Stroke Retracted Length Extend Length XM S53DC-66-72 3TG F5*72 5" 127 72"(1829mm) 37.19" (945mm) 109.19" (2773mm) XM S53DC-65-126 3TG F5*126 5" 127 126.63" (3216mm) 54.56" (1386mm) 181.19" (4602mm) XM S63DC-101-86 3TG F6*86 6" 152.4 86.75" (2203mm) 40.88" (1038mm) 127.63" (3241mm) XM S63DC-97-111 3TG F6*111 6'' 152.4 111" (2819mm) 49.94" (1268mm) 160.94" (4087mm) XM S63DC-102-120 3TG F6*120 6'' 152.4 120" (3048mm) 53.5" (1359mm) 173.5" (4407mm) XM S63DC-101-140 3TG F6*140 6'' 152.4 140.25" (3562mm) 59.81" (1519mm) 200.06" (5081mm) XM S64DC-12-135 4TG F6*135 6'' 152.4 135" (3429mm) 47.19" (1199mm) 182.19" (4628mm) XM S64DC-14-156 4TG F6*156 6'' 152.4 156" (3962mm) 53.62" (1362mm) 209.62" (5324mm) XM S73DC-66-140 3TG F7*140 7" 177.8 140.44" (3567mm) 60" (1524mm) 200.44" (5091mm) XM S73DC-66-150 3TG F7*150 7" 177.8 150" (3810mm) 63.50" (1613mm) 213.50" (5423mm) XM S74DC-74-120 4TG F7*120 7" 177.8 120" (3048mm) 44.12" (1120mm) 164.12" (4168mm) XM S74DC-74-167 4TG F7*167 7" 177.8 167" (4242mm) 56.38" (1432mm) 223.38" (5674mm) XM S74DC-74-180 4TG F7*180 7" 177.8 180" (4572mm) 61.12" (1552mm) 241.12" (6124mm) XM S84DC-66-148 4TG F8*148 8" 203.2 147.75" (3753mm) 51.50" (1308mm) 199.25" (5061mm) XM S84DC-66-156 4TG F8*156 8" 203.2 156" (3962mm) 53.75" (1365mm) 209.75" (5327mm) XM S85DC-66-250 5TG F8*250 8" 203.2 249" (6325mm) 68.62" (1743mm) 317.62" (8068mm) XM S85DC-66-265 5TG F8*265 8" 203.2 265" (6731mm) 71" (1803mm) 336" (8534mm) XM S95DC-52-320 5TG F9*320 9" 228.6 320" (8128mm) 83" (2108mm) 403" (9628mm) XM S95DC-52-340 5TG F9*340 9" 228.6 340" (8636mm) 87" (2210mm) 427" (10846mm)
Hydraulic cylinders are the most effective and efficient method of pushing, pulling, lifting, and lowering.
Nowadays hydraulic cylinders play an essential role in daily application and industry:

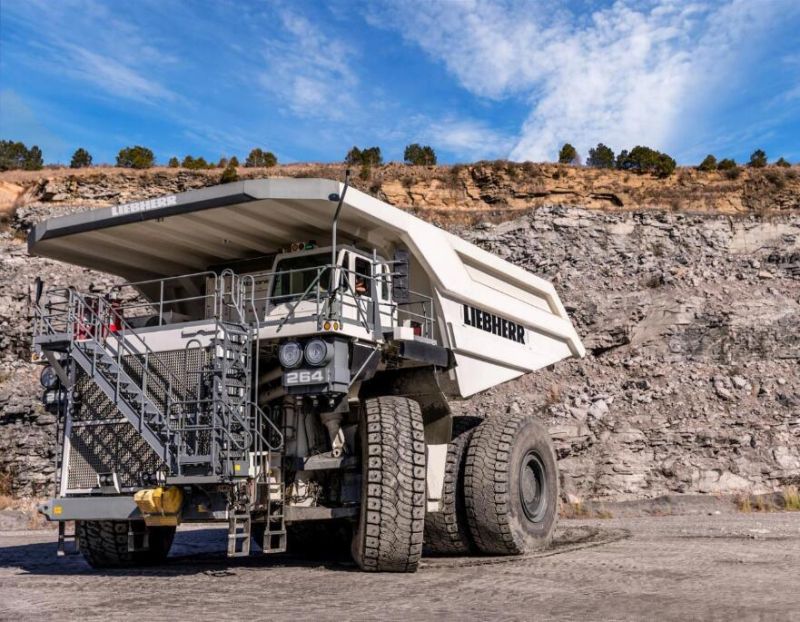

√ Mining

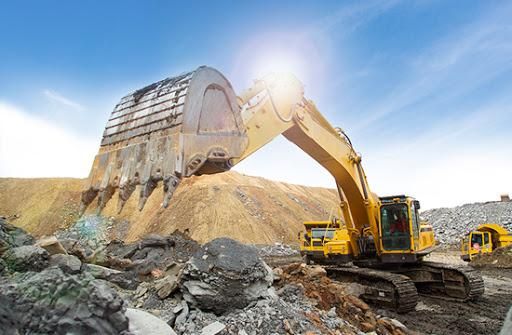

√ Earthmoving & Construction
√ Agriculture &Forestry

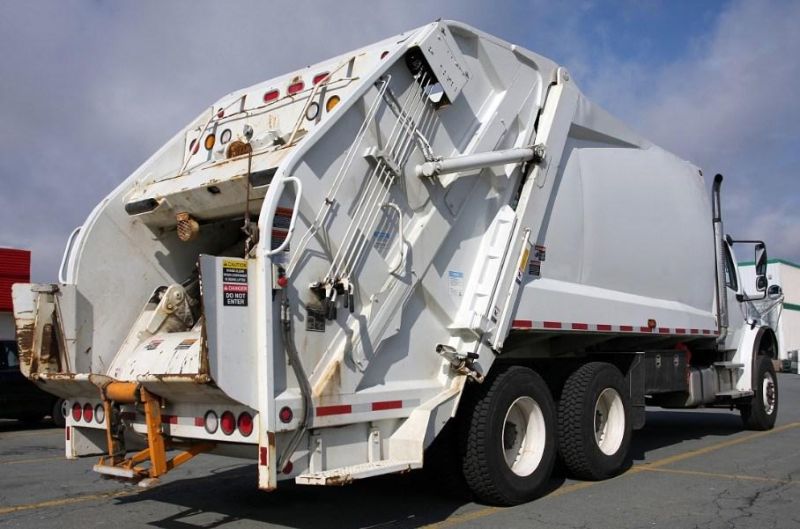

√Waste Management & Material Handing

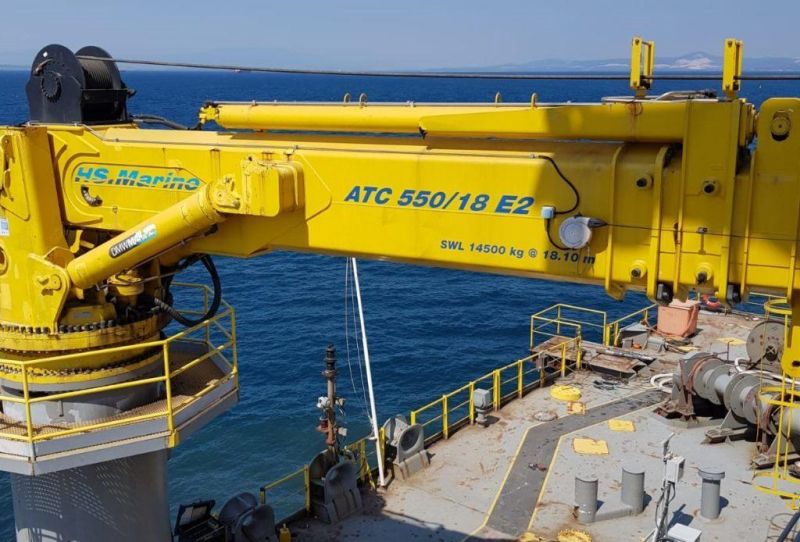

√Ship crane & offshore
Select the right cylinders for an application is critical in obtaining maximum performance and reliability.
ROCA team takes all your concerns into consideration to suit your hydraulic cylinder requirements.
Together, we work out the best design solution for your application.
Hydraulic cylinders are the most effective and efficient method of pushing, pulling, lifting, and lowering. Nowadays hydraulic cylinders play an essential role in daily application and industry: √ Mining
√ Earthmoving & Construction
√ Agriculture &Forestry
√Waste Management & Material Handing
√Ship crane & offshore
Select the right cylinders for an application is critical in obtaining maximum performance and reliability. ROCA team takes all your concerns into consideration to suit your hydraulic cylinder requirements. Together, we work out the best design solution for your application.
