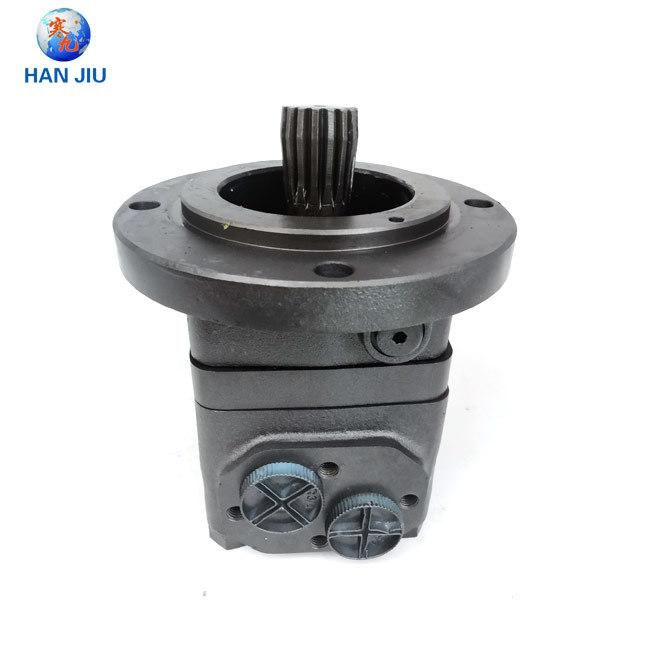

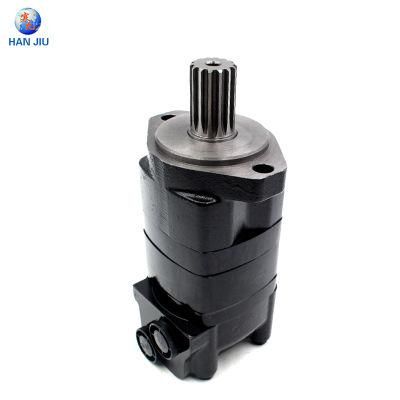

Omts Motor Fuchs 722m Wheel Excavator Hydraulic Motors 151b3039 Bearingless Orbital Motor

Shijiazhuang Hanjiu Technology Co., Ltd.
  • Certification：CE
  • Pressure：Medium Pressure
  • Work Temperature：High Temperature
  • Voltage：0
  • Installation：Horizontal
  • Material：Alloy Steel

Base Info

  • Model NO.：bmts
  • Warranty：12months
  • Delivery：10-15 Working Days
  • Transport Package：Carton Packing, and Finally with Pallet or Wooden
  • Specification：BMT
  • Trademark：HANJIU
  • Origin：China
  • HS Code：8412291000
  • Production Capacity：500, 000 Sets Per Year

Description

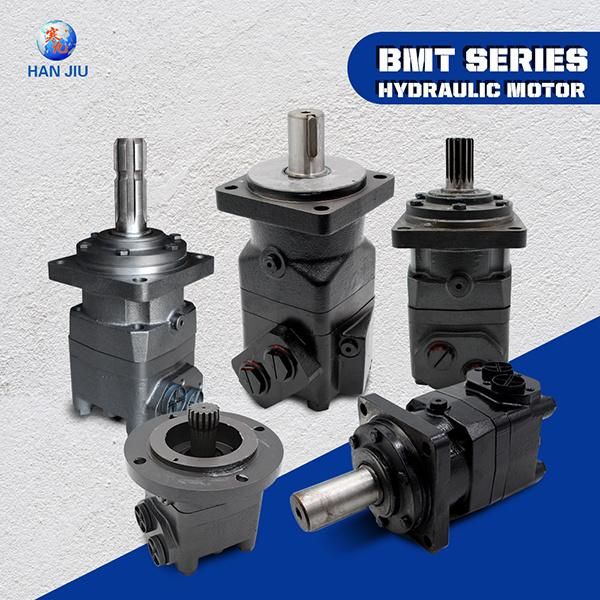

TypeBMT 160BMT 200BMT 230BMT 250BMT 315BMT 400BMT 500BMT 630BMT 800Geometric displacement
(cm3 /rev.)161.1201.4232.5251.8326.3410.9523.6629.1801.8Max. speed (rpm)cont.625625536500380305240196154int.780750643600460365285233185Max. torque (N·m)cont.4705906707309501080122013181464int.56071082188011401260137014981520peak66983895810361346.31450.31643.81618.81665Max. output (kW)cont.27.734.934.734.534.931.228.825.322.2int.3240404040353527.526.8Max. pressure drop
(MPa)cont.202020202018161412.5int.242424242421181613peak282828282824211916Max. flow (L/min)cont.100125125125125125125125125int.125150150150150150150150150Max. inlet pressure
(MPa)cont.212121212121212121int.252525252525252525peak303030303030303030Weight (kg)19.52020.420.52122232425



* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.


Omts Motor Fuchs 722m Wheel Excavator Hydraulic Motors 151b3039 Bearingless Orbital MotorOmts Motor Fuchs 722m Wheel Excavator Hydraulic Motors 151b3039 Bearingless Orbital MotorOmts Motor Fuchs 722m Wheel Excavator Hydraulic Motors 151b3039 Bearingless Orbital MotorOmts Motor Fuchs 722m Wheel Excavator Hydraulic Motors 151b3039 Bearingless Orbital MotorOmts Motor Fuchs 722m Wheel Excavator Hydraulic Motors 151b3039 Bearingless Orbital MotorOmts Motor Fuchs 722m Wheel Excavator Hydraulic Motors 151b3039 Bearingless Orbital MotorOmts Motor Fuchs 722m Wheel Excavator Hydraulic Motors 151b3039 Bearingless Orbital Motor
