High Speed Omm50 Orbital Hydraulic Motor Replace Danfoss Hydromotor

Dongguan Blince Machinery & Electronics Co., Ltd.
  • Speed：High Speed
  • Type：Hydraulic Power Units
  • Displacement(Cc/Rev)：50
  • Continuous Max Speed(Rpm)：400
  • Continuous Max Torque(N.M)：46
  • Max Pressure(MPa)：10

Base Info

  • Model NO.：Omm50
  • Hole Middle Distance：80mm
  • Cylinde Parallel Shaft Size：16mm
  • Flange：Standard 2 Hole Diamond Flange
  • Ports and Drain Port：G3,8, G1,8
  • Material：Rust-Proof Cast Iron
  • Warranty：One Year
  • Flow Control Valve：Hydraulic Motor
  • Pressure Control Valve：Hydraulic Motor
  • Hydraulic Control Unit：Hydraulic Motor
  • Hydraulic Motor：Omm50hydraulic Motor
  • Hydraulic Actuator：Hydraulic Motor
  • Transport Package：Sale Packing Contians Carton or Wood Case
  • Specification：CE
  • Trademark：Blince
  • Origin：Guangdong Province, China (Mainland)
  • HS Code：8412291000
  • Production Capacity：3000 Units Per,Month

Description

TypeOMM
8OMM
12.5OMM
20OMM
32OMM
40OMM
50Geometric  displacement 8.212.919.931.639.850.3Max.speed (rpm)cont.195015501000630500400int.245019401250800630500Max.torque(N.m)cont.111625404546int.152335577088Max.output(KW)cont.1.82.42.42.42.21.8Int.2.63.23.23.23.23.2Max.pressure
Drop  (Mpa)
 cont.1010101097int.141414141414Max.flow(L/min)cont.162020202020int.202525252525Weight(kg)1.922.12.22.32.4

High Speed Omm50 Orbital Hydraulic Motor Replace Danfoss Hydromotor
High Speed Omm50 Orbital Hydraulic Motor Replace Danfoss Hydromotor
High Speed Omm50 Orbital Hydraulic Motor Replace Danfoss Hydromotor
High Speed Omm50 Orbital Hydraulic Motor Replace Danfoss Hydromotor
High Speed Omm50 Orbital Hydraulic Motor Replace Danfoss Hydromotor
High Speed Omm50 Orbital Hydraulic Motor Replace Danfoss Hydromotor
High Speed Omm50 Orbital Hydraulic Motor Replace Danfoss Hydromotor

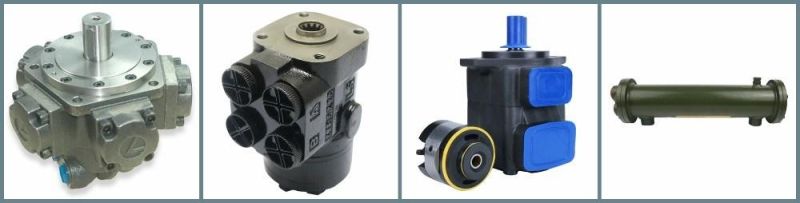

Blince profssion supply all series hydraulic motor like:

OMM/OMP/OMPH/OMR/OMRS/OZ/OK/OMH/OMSY/OMT/OMV hydraulic orbit motor, hydraulic pump like ( PV2R series / V V series / SQP series ) vane pumps. If you are interested in any our blince hydraulic motor pls contact me. Thanks! !
