• Model NO.：SV-RCH-202
• Structure：Piston Type
• Material：Cast Steel
• Carrying Capacity：20t
• Body Height：162mm
• Effective Journey：49mm

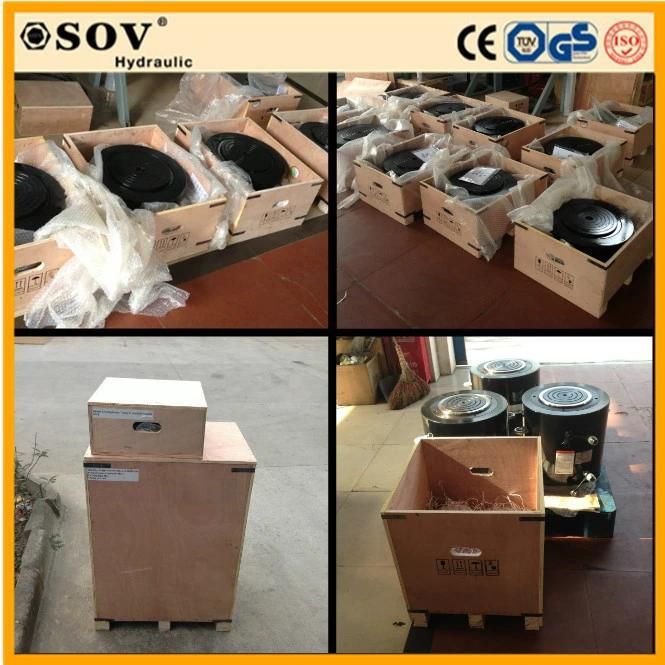

• Transport Package：Export Wooden Box
• Specification：7.7kg
• Trademark：SOV
• Origin：Shanghai, China
• HS Code：8412210000
• Production Capacity：200sets,Month

Basic Info.

Model NO. SV-RCH-202 Structure Piston Type Material Cast Steel Carrying Capacity 20t Body Height 162mm Effective Journey 49mm Transport Package Export Wooden Box Specification 7.7kg Trademark SOV Origin Shanghai, China HS Code 8412210000 Production Capacity 200sets/Month

Product Description

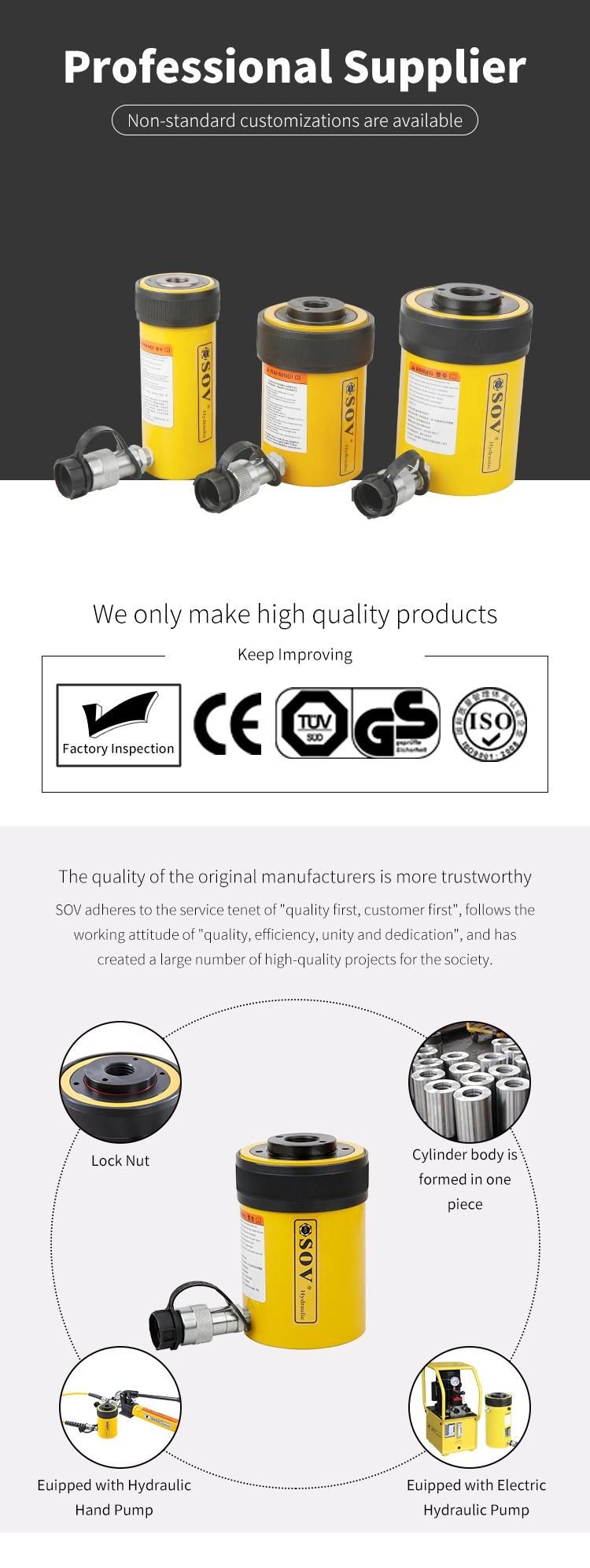

Single Acting Hollow Plunger Hydraulic Cylinder
 Product Descriptions
Double acting hydraulic cylinder is suitable for lifting operation of high tonnage equipment and lifting  maintenance operations required precise control of load, also suitable for horizontal pushing operations.




Product Features
Single-acting, spring return
Baked enamel finish for increased corrosion resistance;The chrome-plated surface extends the service life of the hollow plunger.
Hollow plunger design allows for both pull and push forces
Collar threads for easy fixturing
Built-in scraper seal reduces contamination, extending cylinder life
3/8 "- 18NPT coupler and dust cap included on all models.

Industry Applications
Welding and lifting of ship hull.
Equipment maintenance and lifting in steel plant.
Equipment maintenance and lifting in thermal power plant.
Maintenance and synchronous lifting of ancient buildings.
Equipped with a variety of hydraulic tools to bending, cutting, punching, pressing and so on.
Model

Capacity	Working Pressure	Coll. Height A	Stroke	Effective Area	Center Hole Dia. Y	Oil Capacity	Outside Diameter D	Plunger  Dia. F	Weight
	(T)	(MPa)	(mm)	(mm)	(cm2)	(mm)	(cm3)	(mm)	(mm)	(kg)
SOV-RCH-120	13	70	55	8	17.9	19.6	14	69	35.1	1.5
SOV-RCH-121			120	42	17.9	19.6	75	69	35.1	2.8
SOV-RCH-123			184	76	17.9	19.6	136	69	35.1	4.4
SOV-RCH-202	20	70	162	49	30.7	26.9	150	98	54.1	7.7
SOV-RCH-206			306	155	30.7	26.9	476	98	54.1	14.1
SOV-RCH-302	30	70	178	64	46.6	33.3	298	114	63.5	10.9
SOV-RCH-306			330	155	46.6	33.3	722	114	63.5	21.8
SOV-RCH-603	60	70	247	76	82.3	53.8	626	159	91.9	28.1
SOV-RCH-606			323	153	82.3	53.8	1259	159	91.9	35.4
SOV-RCH-1003	100	70	254	76	133.0	79.0	1011	212	127	63.0

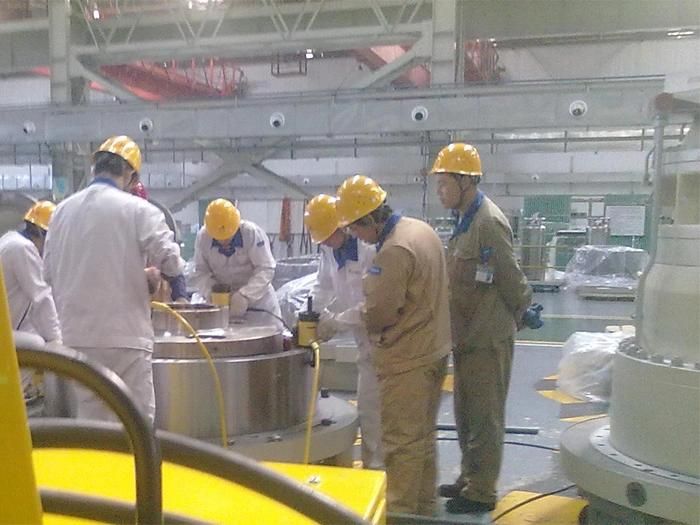

Field Applications

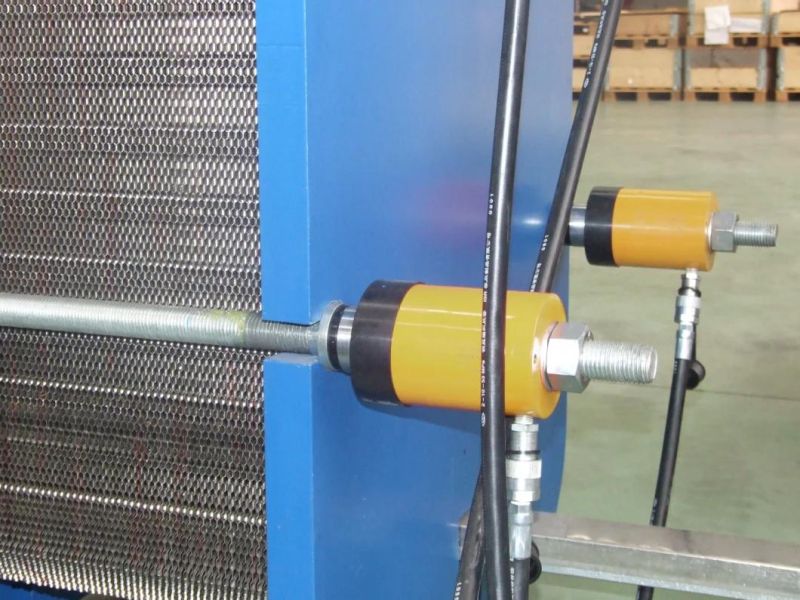

Heat exchanger assembling and compacting
Steel cable locking in bridge construction
Synchronous lifting of steel structure in gymnasium construction
Steel strand pre-tightening in bridge box girder prefabricating





FAQ

Q1: How can contact sales ?



Q2: How can I buy SOV products in my country?

A2: Please send us an inquiry or email , we will reply to your if there is distributor in your country.

Q3: Can I have SOV products catalog and price list ?

A3: Please visit our English website:sov-china.en.made-in-china.com to download our E-catalog, and send us an email for price list

Q4: How long does it take to get the product If I place an order?

A4: If products stock available, after confirmation of your payment or advance payment , we will pack and deliver in 3-7 days. If you select international parcel service, it can be arrived in 3-7 days. If it is by sea shipment, it will take 15-45 days depending on different locations

Q5: How to make payment ?

A5: First send us an inquiry, and we will reply you quotation, if our price suits you, we will prepare proforma invoice with our banking details.

Q6: Manufacturing time?

A6: Please send us an inquiry for stock condition, if we don't have stock, and it is our standard products (refer to our model),it can be produced in 10-20 days. If it is customized, not our standard products, it will take 20-45 days to produce.


Why Choose SOV ?

Quality: SOV has been in the industry for than 20 years. We have been trusted by domestic mega statedstate owned companies, as well as international distributors and renowned brands. We put quality as lifeline. We never manufacture or sale defected product, or lowering our price at the cost of products quality.

Service: SOV promised to respond to customers products quality or service in 24 hours reported, and solutions shall be provided in 48 hours.

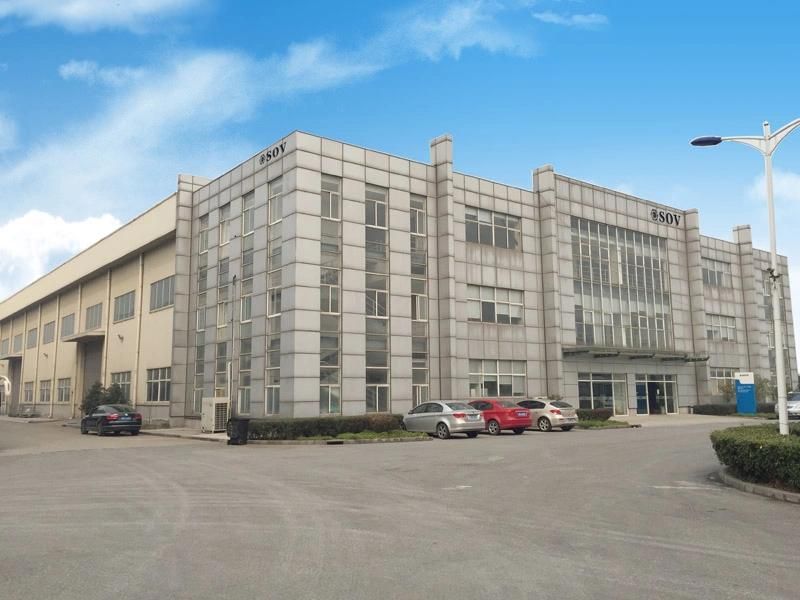

Company Information

 SOV is a profesional manufacturing in hydraulic tools and products,we have been in the industry for more  than 20years.Since the establishment in 1995,we successfully transformed from OEM manufacturer to creater  our own brand SOV ,and our factory has been approved by CE ,ISO9001:2008 consecutively .Our Products  have been widely uesd in petrochemical ,cement ,shipbuilding ,steel plant and  heavy constructions areas,etc.
