• Model NO.：BMV
• Warranty：12months
• Delivery：10-15 Working Days
• Transport Package：Carton Packing, and Finally with Pallet or Wooden
• Specification：BMV
• Trademark：HANJIU
• Origin：China
• HS Code：8412291000
• Production Capacity：500, 000 Sets Per Year

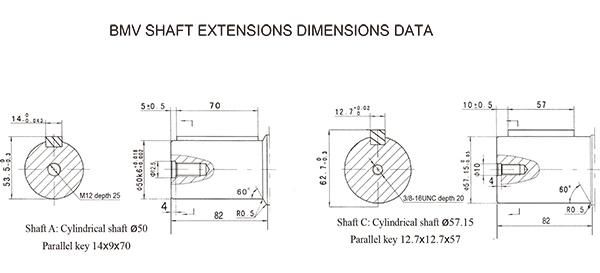

DescriptionManufacturer: HANJIUCountry of origin: CHINACondition: NEW packagingMaterialnumber: 151B3103Modelcode: BMVMotorseries: O-SeriesDisplacement: 630Mounting Flange: StandardMounting Thread Dimension: NoneShaft Style: CylindricalShaft Size: 50 mm ; M12 x 1,75 tapShaft Key: A14 x 9 x 70 mm (DIN 6885)Port Size: Side portPort Dimension: G 1Drain Port Style: StandardDrain port Dimension: G 1/4Brake Release Port: NoneBrake Release Port Dimension: NonePainted: BLACKSpecial Features External 1: NoneSpecial Features External 2: NoneSpecial features External 3: NoneDust Seal: StandardShaft Seal: NBR - StandardFront bearing: Tapered roller bearingRear bearing: Tapered roller bearingGear wheel set: StandardCheck valve: YesValve function: NoneSpecial Features Internal 1: NoneSpecial Features Internal 2: NonePackaging: Single packOption Type: Standard

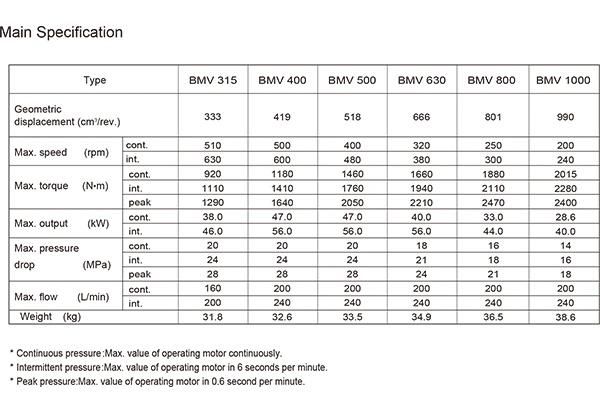

Weight (kg)31.832.633.534.936.538.6
