• Model NO.：OMM 8
• Type：Gear Type
• Displacement：8.2cc
• Highest Speed (Cont.)：1950rmp
• Highest Operating Pressure(Cont.)：10MPa
• Inlet Pressure (Cont.)：17.5
• Port：Botton Port
• Highest Flow (Cont.)：16L,Min
• Weight (Cont.)：1.9kg
• Highest Torque (Cont.)：11nm
• Highest Output Power (Cont.)：1.8kw
• High(Not Include The Shaft)：104
• Transport Package：Plastic Tube +Carton+Wooden Pallets
• Specification：CE, CCC, ISO
• Trademark：Blince
• Origin：Dongguan, China
• HS Code：8413602220
• Production Capacity：1000 Per Month

Basic Info.

Model NO. OMM 8 Type Gear Type Displacement 8.2cc Highest Speed (Cont.) 1950rmp Highest Operating Pressure(Cont.) 10MPa Inlet Pressure (Cont.) 17.5 Port Botton Port Highest Flow (Cont.) 16L/Min Weight (Cont.) 1.9kg Highest Torque (Cont.) 11nm Highest Output Power (Cont.) 1.8kw High(Not Include The Shaft) 104 Transport Package Plastic Tube +Carton+Wooden Pallets Specification CE, CCC, ISO Trademark Blince Origin Dongguan, China HS Code 8413602220 Production Capacity 1000 Per Month

Product Description

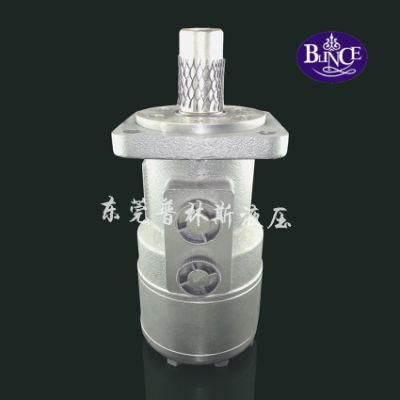

                  China Blince Bmm8cc Hydraulic Motor,Omm8 Small Volume Orbit Hydraulikmotor
OMM series motor are small volume, economical type, which is designed with shaft distribution flow, which adapt
the Gerotor gear set design and provide compact volume, high power and low weigth.
Characteristic features:
* Advanced manufacturing devices for the Gerotor gear set, which provide small volume, high efficiency and long life.
* Shaft seal can bear high pressure of motor of which can be used in parallel or in series.
* Advanced construction design, high power and low weight.

Tips:
In order to make the motors working in optimal situation, we recommend the following:
1, oil temperature :normal 20°C~60°Cupper limit 90°C (no more than one hour).
2, The motors can be operated in parallel or in series. When the pressure of the back exceeds 2MPa,it is necessary to install an external drain line to the tank.
3, In order to obtain a longer life of operating motor should operate motors at first for one hour under 30% of rated pressure. In any case, be sure to fill up with hydraulic oil inside motor before increasing load.
Q: If the product fails during use, how to do?
A: please feel free to contact us, we will be the first time to help you solve the problem.


Packaging & Shipping
Packaging details:
1. Industrial packing: plastic tube +carton+wooden pallets
2. Commercial packing: plastic bag +color box+wooden pallets
3. The transportation as per your request

Our Services
Our company professional produce all kinds of hydraulic motors and related parts that can meet all your need. We have the experienced engineers to select the appropriate models for you.
Warranty:
1. Guarantee for one year or 1000 hours (according to whichever ends first) from the purchasing date on.
2. During the guarantee period, our company will provide the easy-damaged spare parts for problems caused by our
quality of production or raw material. Pls provide the defective appearance and related invoice number.
3. Sorry for you should responsible for the freight come-and-go,and the custom tax.
4. After expiration, our company can provides cost spare-parts maintenance for engines.
5. To save the cost,you can choose send the motor back without packing.
6. My dear friend, your emails can be get within one business day. If you do not receive our reply, please kindly re-sent
your email or give us a call any time.
