Cxsd Vertical Cylinder Compact Hydraulic Cylinder
Dongguan Blince Machinery & Electronics Co., Ltd.- Certification：GS, CE, ISO9001
- Pressure：Medium Pressure
- Work Temperature：High Temperature
- Acting Way：Double Acting
- Working Method：Straight Trip
- Adjusted Form：Regulated Type
Base Info
- Model NO.：CXSD
- Structure：Piston Type
- Material：Carbon Steel

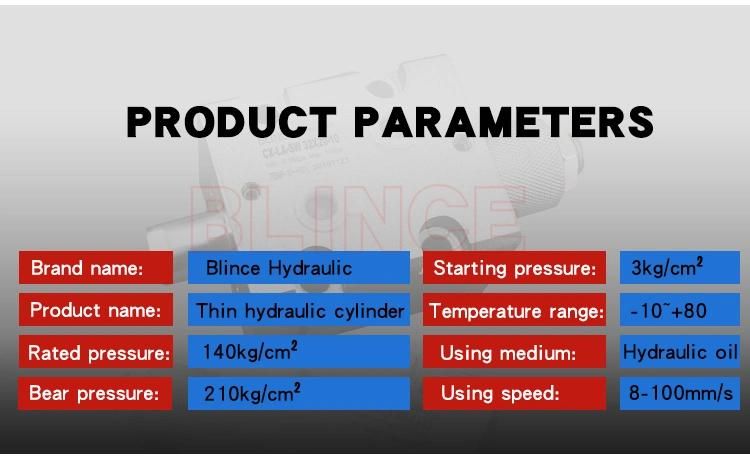

- Product Name：Cx Thin Hydraulic Cylinder
- Rate Pressure：140kg,Cm2
- Start Pressure：3kg,Cm2
- Bear Pressure：210kg,Cm2 11MPa
- Medium：Hydraulic Oil
- Temperature：-10-80degree
- Color：Blue
- Using Speed：8-100mm,S
- Transport Package：Carton
- Trademark：Blince
- Origin：China
- Production Capacity：3000PCS,Month
Description
Basic Info.
Model NO. CXSD Structure Piston Type Material Carbon Steel Product Name Cx Thin Hydraulic Cylinder Rate Pressure 140kg/Cm2 Start Pressure 3kg/Cm2 Bear Pressure 210kg/Cm2 11MPa Medium Hydraulic Oil Temperature -10-80degree Color Blue Using Speed 8-100mm/S Transport Package Carton Trademark Blince Origin China Production Capacity 3000PCS/MonthProduct Description
CXSD vertical cylinder compact hydraulic cylinderProduct introduction:
CX-SD hydraulic cylinder is compact and easy to install. It is suitable for equipment or machinery with tight installation space.

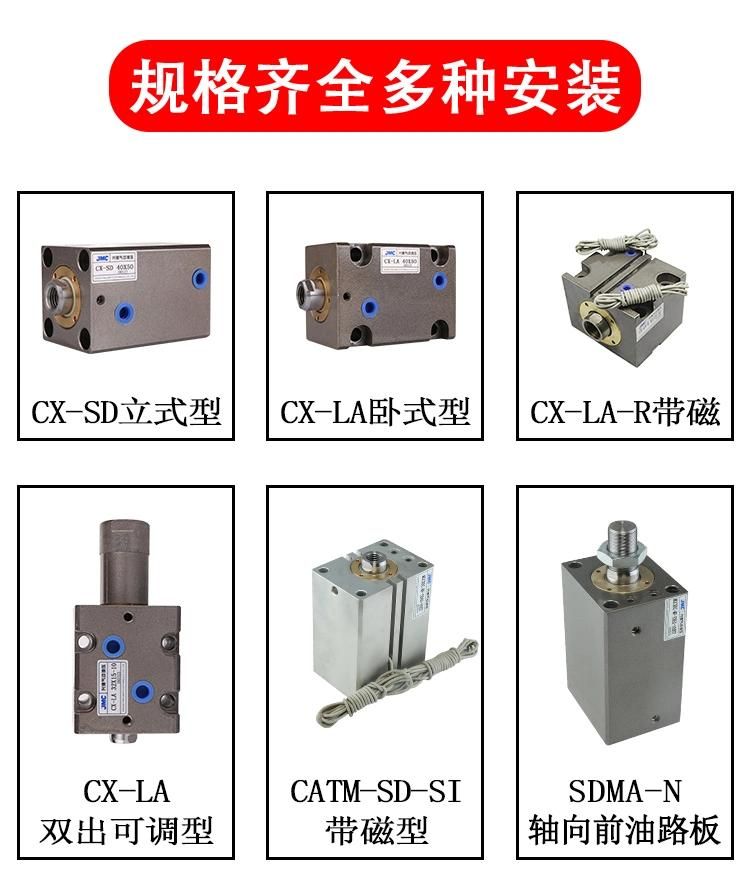

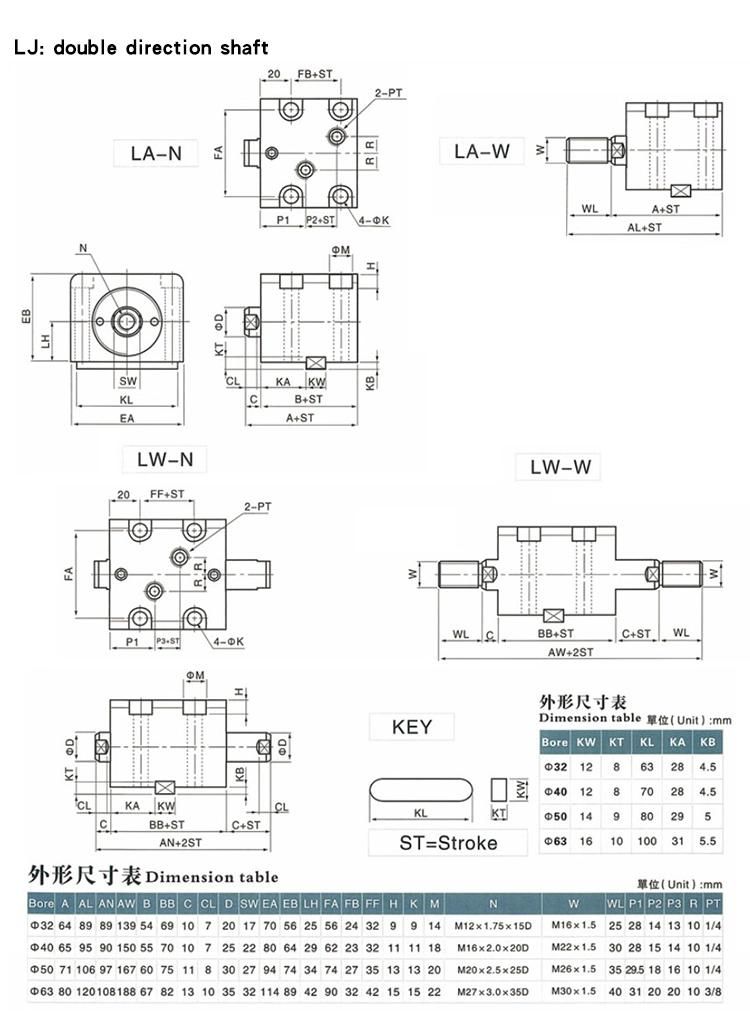

The working medium is standard hydraulic oil. A variety of mounting methods are available (front flange, rear earring, rear flange, intermediate swing shaft, etc.)
Applicable pressure range is 0.3mpa-14mpa, and the applicable temperature range is -10 degrees to 70 degrees.

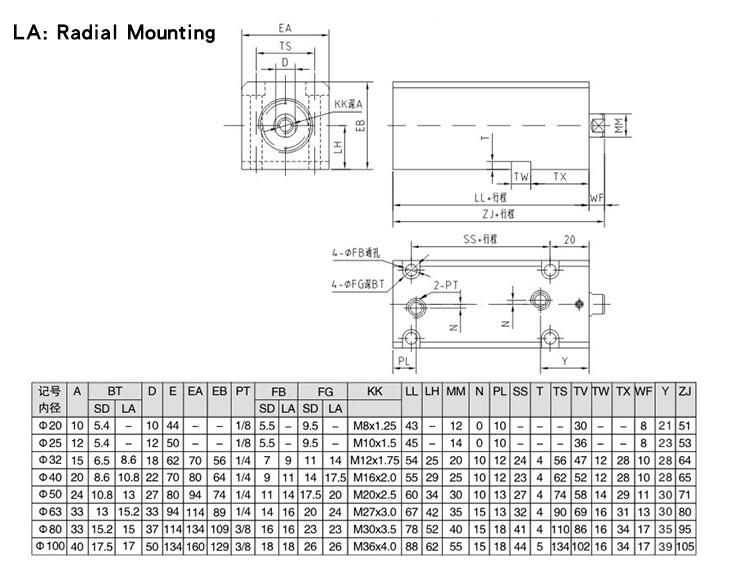

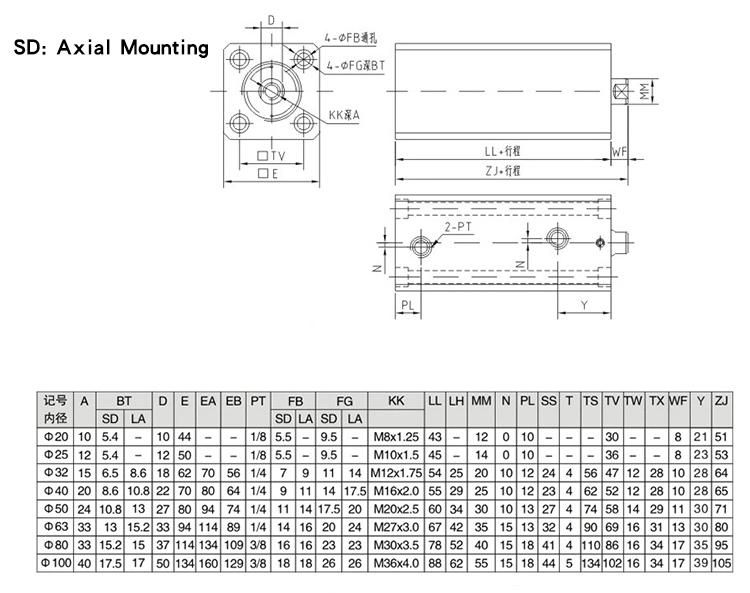

The cylinder block fixing method of the hydraulic cylinder can be selected by radial and axial bolt fixing, and the connection mode of the bar head is internal and external thread connection.

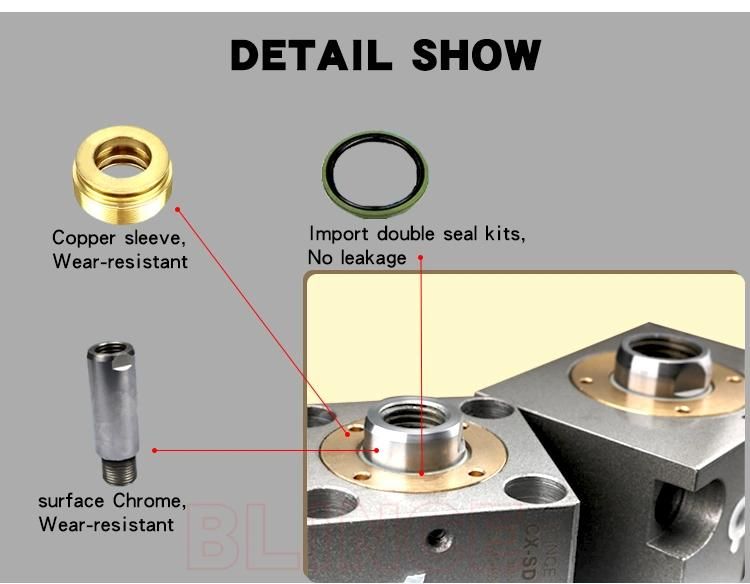

Product details:
