• Model NO.：DR20
• Trademark：Power or OEM
• Origin：China
• HS Code：8481100090
• Production Capacity：10000PCS,M

Basic Info.

Model NO. DR20 Trademark Power or OEM Origin China HS Code 8481100090 Production Capacity 10000PCS/M

Product Description

1. Product Description
Pilot operated pressure reducing valves type DR ... L5XPressure control valves type DR series L5X are pilot operated pressure reducing valves. They are used to control secondary circuit in a system .They consist mainly of the main valve (1) with main spool assembly (3) and pilot valve (2) with pressure adjustment element.
At static state, the valves are normally open, fluid flows free from port B to port A via the main spool (3). Pressure at port A acts on the underside of main spool (3) and its spring-loaded side via throttle orifice (4). Fluid also acts on the ball valve (6) of the pilot valve (2) via the channel (5). Meanwhile, pressure fluid flows via throttle orifice (7), control line (8),check valve (9) and throttle orifice (10) to the ball valve(6). Based on the setting value of the spring (11), control piston(13) keeps open, then fluid can flow free from port B to port A, until pressure at port A exceed the setting value of spring(11), and then ball valve (6) is opened. Control piston (13) moves to close position. When pressure at port A is balanced with setting value at spring, pressure reducing is achieved as expected. Control oil returns from spring chamber (14) to tank via channel (15).
A check valve (16) can be fitted optionally to give free return flow from line A to B.
Pressure gauge connection (17), used for monitoring the reduced pressure at the port A.

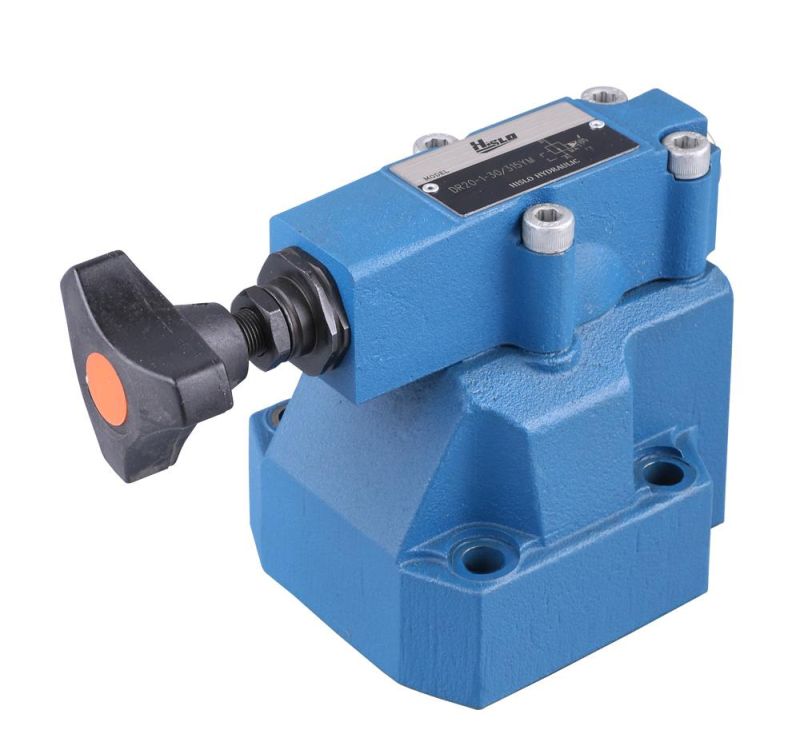

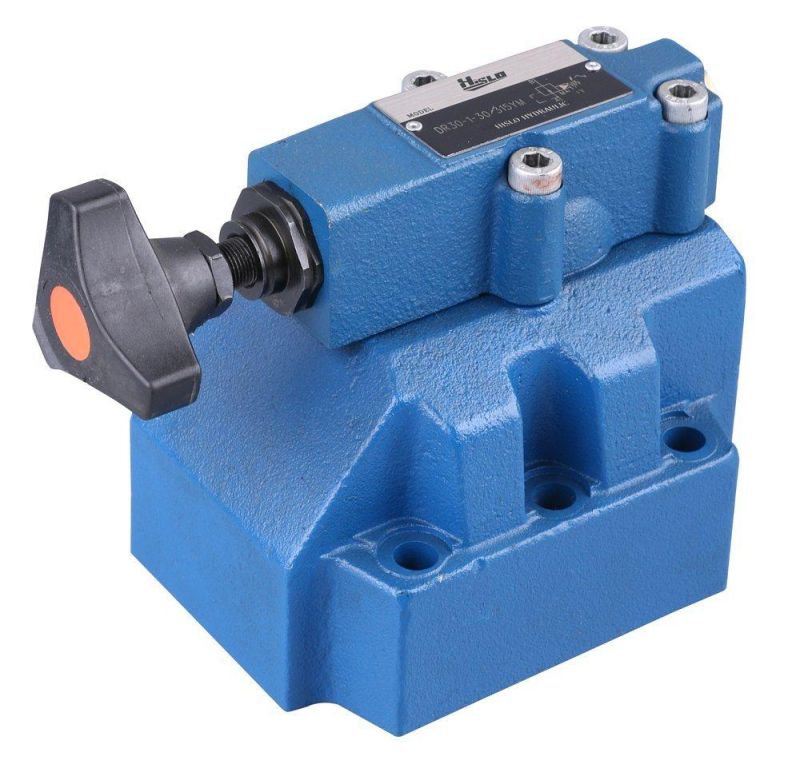

2. Product Photos

3. Company Profile

      NNINGBO POWER HYDRAULIC MOTOR CO.,LTD is a wel-trusted manufacturer in hydraulic industy.
      The company have achieved IS09001:2015 quality system, relying on strong technology development and production capacity,our annual output 600 thousand pieces. We produce all kinds of hydraulic valve, mainly include Rexroth and Yuken series of hydraulic valve products. Our products are widely used in mining, engineering, construction, plastics, chemicals, machine tools and so on. Our goal is to continue to deliver cost-effective products and more improved electro-hydraulic technology solutions.
     We also aim to help our customer to attain competitive advantage. It is our business to create more solutions, not just to satisfy the needs of our customers but also to help them progress in the industry.


4. Certificates

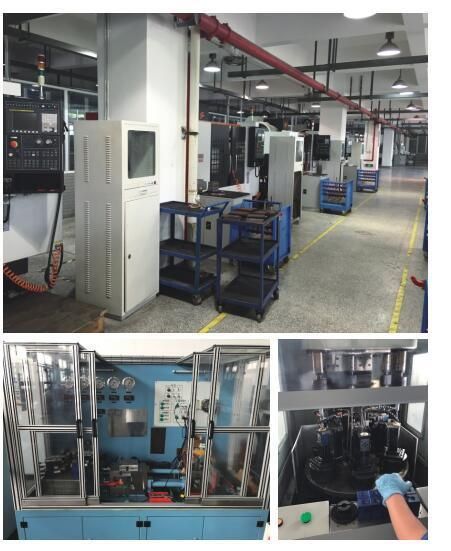

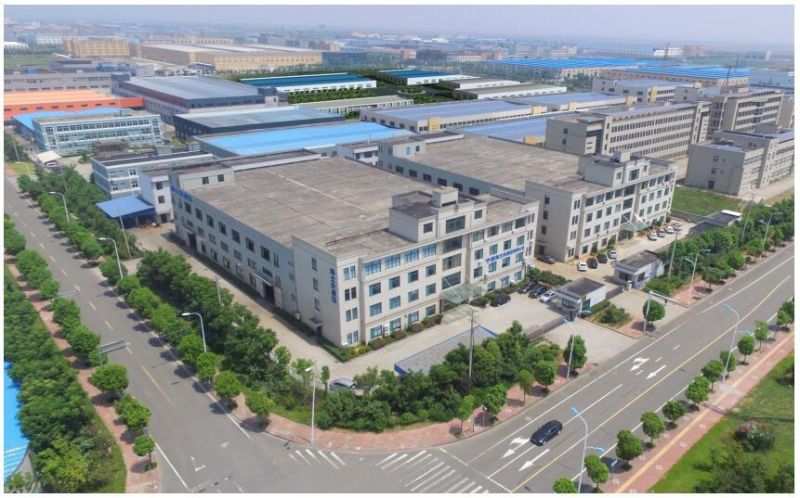

5. Factory

6. FAQ
Q1: Are you trading company or manufacturer ?

A: We are factory.

Q2: How long is your delivery time?

A: Generally it is 3-5 days if the goods are in stock, or it is 20-30 days if the goods are not in stock, it is according to quantity.

Q3: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q4: What is your terms of payment ?

A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us.
