• Model NO.：P40
• Transport Package：Carton, Pallet
• Specification：7 KGS
• Trademark：HANJIU
• Origin：China
• HS Code：8481201000
• Production Capacity：10000 Pieces

Basic Info.

Model NO. P40 Transport Package Carton, Pallet Specification 7 KGS Trademark HANJIU Origin China HS Code 8481201000 Production Capacity 10000 Pieces

Product Description

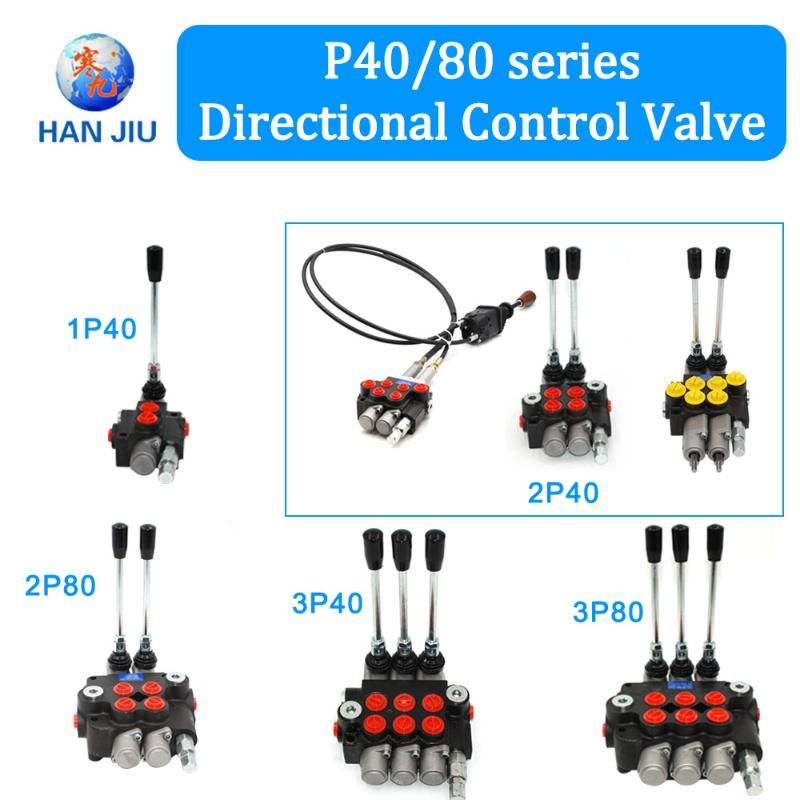

P40 - 1-7 LEVER CONTROL VALVE 40 LPM
For different spool & lever options please contact our sales team

P40 HYDRAULIC CONTROL VALVES AVAILABLE IN 1-7 SPOOL BANKS WITH ADJUSTABLE RELIEF VALVE AND MACHINED FOR CARRYOVER PLUG. ALL STANDARD CONTROL VALVES COME WITH DOUBLE ACTING (A) SPOOLS AND SPRING TO CENTER LEVER CONTROL.
Construction

Р40 is a mono-bloc distributor. Its body is made of cast iron EN-GJL300. Plungers are made of carburized steel with hard chrome plating.

Mounting

The distributor is fixed with two bolts M8

SPECIFICATION

- PORT SIZES = P,T+N = 1/2" BSP - A/B = 3/8" BSP
- CAST IRON BODY - EN-GJL300
- MAX WORKING PRESSURE - P = 250 BAR, T = 50 BAR, A/B = 300 BAR
- MAX FLOW RATE = 40 LPM
- OPERATING TEMPERATURE BETWEEN -40ºC TO +60ºC
- RELIEF VALVE SETTING = 180 BAR STANDARD (MAX = 250 BAR)
- SPOOL LEAKAGE AT 120 BAR = 15CM3 P/M

TO VIEW TECHNICAL DATA SHEET PLEASE VIEW THE PHOTO BELOW
