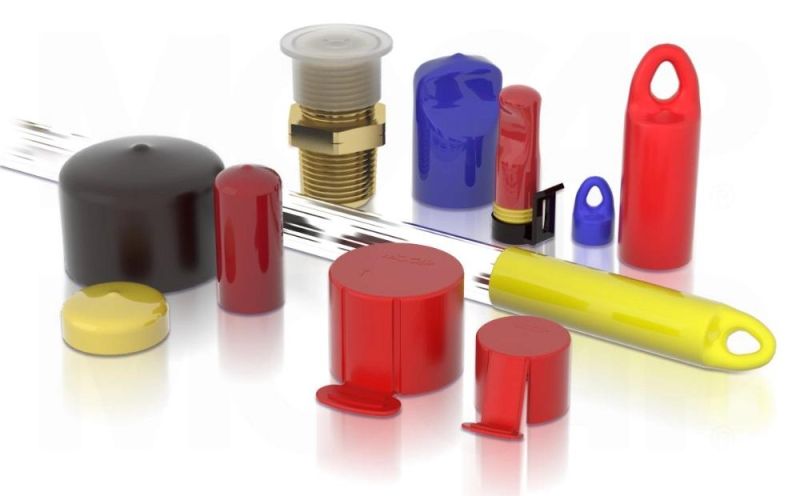

Plastic Soft End Caps for Round Tubing with RoHS
Zhongshan Mocap Industry Co., Ltd.- Certification：RoHS, ISO9001, Reach
- Pressure：Low Pressure
- Work Temperature：Normal Temperature
- Feature：Dust-Proof
- Material：Vinyl
- Temperature：-29~149c
Base Info
- Model NO.：CRVC
- Hardness：73 Shore a
- Elongation：380%
- Tensile Strength：1520 Psi
- Transport Package：Plastic and Carton
- Specification：1.6-152.4mm
- Trademark：MOCAP
- Origin：Zhongshan, Guangdong
- HS Code：3923500000
- Production Capacity：10000000000 PCS , Year
Description
Overview

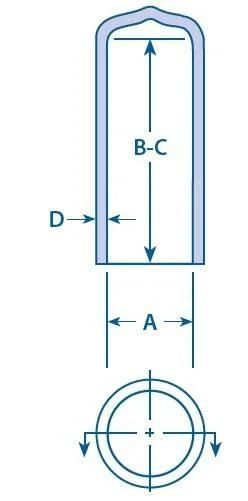

Product DescriptionProduct Parameters Part # To Fit STD Thread To Fit METRIC Thread To Fit NPT (A) (B) (C) (D) Inside Diameter Min Inside Length Max Inside Length Wall Thickness in mm in mm in mm in mm RVC9001 1 0.062 1.6 0.188 4.8 0.5 12.7 0.022 0.6 RVC9002 1 or 2 0.07 1.8 0.188 4.8 0.5 12.7 0.022 0.6 RVC9003 2 or 3 0.08 2 0.188 4.8 0.625 15.9 0.028 0.7 RVC9004 3 or 4 0.093 2.4 0.188 4.8 0.75 19.1 0.028 0.7 RVC9005 4 or 5 0.112 2.8 0.188 4.8 1 25.4 0.033 0.8 RVC9006 5 or 6 0.125 3.2 0.188 4.8 1.5 38.1 0.033 0.8 RVC9007 M4 0.137 3.5 0.188 4.8 1.5 38.1 0.033 0.8 RVC9008 8 M4 0.156 4 0.188 4.8 1.5 38.1 0.038 1 RVC9009 10 M5 0.172 4.4 0.188 4.8 1.5 38.1 0.038 1 RVC9010 M5 0.187 4.7 0.188 4.8 1.5 38.1 0.038 1 RVC9011 12 0.207 5.3 0.188 4.8 1.5 38.1 0.038 1 RVC9012 0.218 5.5 0.188 4.8 1.5 38.1 0.038 1 RVC9440 1/4 - 20 M6 0.234 5.9 0.188 4.8 1.5 38.1 0.038 1 RVC9013 1/4 - 20 0.25 6.4 0.188 4.8 1.5 38.1 0.038 1 RVC9014 0.281 7.1 0.188 4.8 1.5 38.1 0.038 1 RVC9278 5/16 - 24 M8 0.3 7.6 0.188 4.8 1.5 38.1 0.038 1 RVC9015 5/16 - 24 M8 0.313 8 0.188 4.8 1.5 38.1 0.038 1 RVC9016 0.32 8.1 0.188 4.8 1 25.4 0.038 1 RVC9017 0.343 8.7 0.188 4.8 1.5 38.1 0.038 1 RVC9018 3/8 - 24 0.364 9.2 0.188 4.8 1.5 38.1 0.038 1 RVC9019 3/8 - 24 M10 0.375 9.5 0.188 4.8 1.5 38.1 0.038 1 RVC9542 M10 1/8 0.39 9.9 0.188 4.8 2 50.8 0.055 1.4 RVC9021 7/16 - 20 1/8 0.406 10.3 0.188 4.8 1.5 38.1 0.055 1.4 RVC9022 7/16 - 20 M12 0.437 11.1 0.188 4.8 1.5 38.1 0.055 1.4 RVC9096 0.468 11.9 0.188 4.8 1.5 38.1 0.055 1.4 RVC9023 1/4 0.5 12.7 0.188 4.8 1.5 38.1 0.06 1.5 RVC9024 9/16 - 18 M14 1/4 0.531 13.5 0.188 4.8 1.5 38.1 0.06 1.5 RVC9025 9/16 - 18 0.562 14.3 0.188 4.8 1.5 38.1 0.06 1.5 RVC9306 5/16 - 18 M16 0.61 15.5 0.188 4.8 1 25.4 0.06 1.5 RVC9034 11/16 - 16 M16 3/8 0.625 15.9 0.188 4.8 1.5 38.1 0.06 1.5 RVC9035 3/4 - 16 M18 0.687 17.4 0.188 4.8 1.5 38.1 0.06 1.5 RVC9036 13/16 - 16 M20 0.75 19.1 0.188 4.8 1.5 38.1 0.06 1.5 RVC9037 13/16 - 16 1-2 0.812 20.6 0.188 4.8 1.5 38.1 0.06 1.5 RVC9038 7/8 - 14 M22 0.843 21.4 0.188 4.8 1.5 38.1 0.06 1.5 RVC9039 7/8 - 14 0.875 22.2 0.188 4.8 1.5 38.1 0.06 1.5 RVC9040 1-16 M24 0.937 23.8 0.188 4.8 1.5 38.1 0.06 1.5 RVC9041 1-1/16 - 12 M26 3/4 1 25.4 0.25 6.4 1.5 38.1 0.06 1.5 RVC9397 1-1/16 - 12 M27 1.062 27 0.25 6.4 1.5 38.1 0.06 1.5 RVC9273 1-3/16 - 12 M30 1.125 28.6 0.25 6.4 1.5 38.1 0.06 1.5 RVC9042 1-3/16 - 12 1.187 30.1 0.25 6.4 1.5 38.1 0.06 1.5 RVC9043 1-5/16 - 12 M32 1 1.25 31.8 0.25 6.4 1.5 38.1 0.06 1.5 RVC9320 1.313 33.4 0.25 6.4 1.5 38.1 0.065 1.7 RVC9118 1.375 34.9 0.25 6.4 1.5 38.1 0.065 1.7 RVC9044 1-5/8 - 12 M39, M40 1.5 38.1 0.25 6.4 1.5 38.1 0.06 1.5 RVC9045 1-11/16 - 12 M42 1 - 1/4 1.625 41.3 0.25 6.4 1.5 38.1 0.06 1.5 RVC9119 1.687 42.8 0.25 6.4 1.5 38.1 0.065 1.7 RVC9120 1.75 44.5 0.25 6.4 1.5 38.1 0.065 1.7 RVC9046 1-7/8 - 12 M48 1 - 1/2 1.875 47.6 0.25 6.4 1.5 38.1 0.06 1.5 RVC9324 1-7/8 - 12 1.937 49.2 0.25 6.4 2 50.8 0.06 1.5 RVC9047 2 M52 2 50.8 0.25 6.4 1.75 44.5 0.06 1.5 RVC9048 2-1/4 - 12 M52 2.125 54 0.25 6.4 1.5 38.1 0.06 1.5 RVC9049 2-1/4 - 12 M58, M60 2 2.25 57.2 0.25 6.4 1.5 38.1 0.06 1.5 RVC9050 2-1/2 - 12 2 2.375 60.3 0.25 6.4 1.5 38.1 0.06 1.5 RVC9051 2-1/2 - 12 M64 2.5 63.5 0.25 6.4 1.5 38.1 0.06 1.5 RVC9052 M68 2.625 66.7 0.25 6.4 1.5 38.1 0.06 1.5 RVC9053 M72 2 - 1/2 2.75 69.9 0.25 6.4 1.5 38.1 0.06 1.5 RVC9054 M80 3 76.2 0.25 6.4 1.5 38.1 0.06 1.5 RVC9579 M85 3.25 82.6 0.25 6.4 1.5 38.1 0.06 1.5 RVC9055 M90 3 3.5 88.9 0.25 6.4 1.5 38.1 0.06 1.5 RVC9490 M105 3 - 1/2 4 101.6 0.25 6.4 1.5 38.1 0.06 1.5 RVC9121 4.53 115.1 0.25 6.4 1.5 38.1 0.065 1.7 RVC9123 4.625 117.5 0.25 6.4 1.5 38.1 0.065 1.7 RVC9056 6 152.4 0.25 6.4 1.75 44.5 0.06 1.5
Packaging & Shipping
FAQ
Q1. Can you provide sample to test?
Yes, MOCAP China provides customers free samples and catalog within one day on request.
Q2. What's your MOQ?
MOCAP China have no MOQ requirement, we offer Mini pack and Micro Pack to meet your less than case quantity requirement.
Q3. What's your delivery time?
1-3 working days for thousands of in-stock items;
1-2 weeks for non-stock itmes.
Q4. What's your incoterms?
EXW,FOB,CIF,CFR.
Q5. What's your terms of payment?
T/T 100% in advance.
Q6.What certificate do you have for your products?
Our products are compliant with RoHS, REACH
Q7: Can you make the plastic or rubber parts in different colors and shapes?
Yes, MOCAP is glad to provide the parts in different colors to meet the customer's requirement. For custom parts, please contact the sales to get more detailed reply.
