250cc Hydraulic Engine, BMS315 Hydraulic Motors-Oms Motor
Dongguan Blince Machinery & Electronics Co., Ltd.- Certification：GS, CE
- Excitation Mode：Excited
- Power Rating：2500W
- Casing Protection：Protection Type
- Number of Poles：6
- Speed：High Speed
Base Info
- Model NO.：OMS 80cc-375cc hydraulic motor
- Type：Hydraulic Motor
- Processing：Forging & Cutting &Phosphating
- Motor Shafts：Straight, Splined and Tapered
- Hydraulic Power Units：Vane Pump
- Hydraulic Motor：Vane Hydraulic Motor
- Usage：Hydraulic Oil
- Application：Plastic Machine, Agriculture Machine
- Hydraulic Actuator：Hydraulic Motor
- Motor Flange Shape：Square and Rhombus Flange
- Motor Material：Cast Iron
- Transport Package：Industrail Plastic Bag+Carton
- Specification：CE, ISO9001
- Trademark：blince
- Origin：Guangdong
- HS Code：8412291000
- Production Capacity：60000
Description
Type OMS
OMSE
80 OMS
OMSE
100
OMS
OMSE
125
OMS
OMSE
160 OMS
OMSE
200 OMS
OMSE
250 OMS
OMSE
315 OMS
OMSE
375 Displacement
(cc/rev)
80.6
100.8
125
157.2
200
252
314.5
370 Max torque
(n.m) cont 190 240 310 316 400 450 560 536 int 240 300 370 430 466 540 658 645 Max pressure
(Mpa) cont 17.5 17.5 17.5 15 14 12.5 12 10 int 21 21 21 21 16 16 14 12 Max speed rate
(rpm) cont 800 748 600 470 375 300 240 200 int 988 900 720 560 450 360 280 240 Max flow
(L/min) cont 65 75 75 75 75 75 75 75 int 30 30 30 30 30 30 30 30 Weight(kg) 9.8 10 10.3 10.7 11.1 11.6 12.3 12.6
MOUNTING FLANGE:
2 Bolt 106.4mm Dia. Pilot: 82.5mm Dia. X 6.3
4 Bolt 106.4mm Dia. Pilot: 82.5mm Dia. X6.3
Output Shaft Size:
25mm Dia flat key: 8mm X7mm X32mm
32mm Dia flat key: 10mm X8mm X45mm
Inlet And Outlet Ports Size: G1/2 G1/4
Hydraulic motor application:
Hydraulic motors are widely applied in agriculture machinery, fishing machinery, plastic industry, mining, and construction machinery, especially fitted to lower load applications, such as plastic injection mold machine, cleaner, grass cutter, etc.

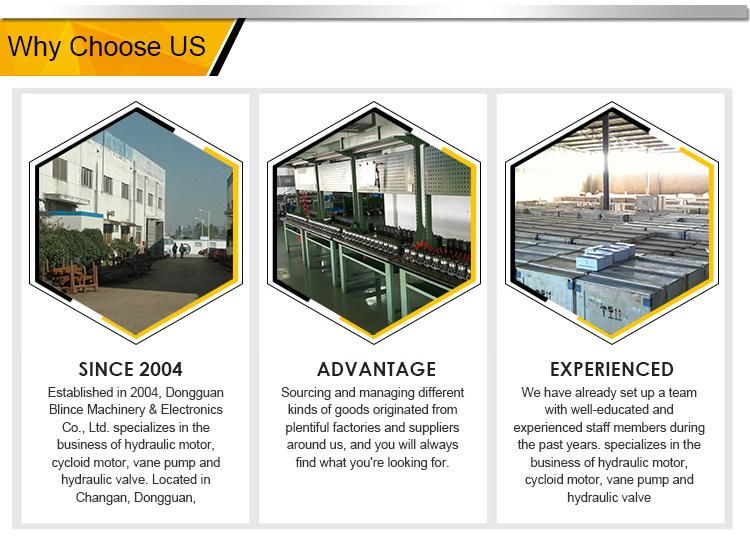

Blince factory:
Blince profssion supply all series hydraulic motor like OMM/OMP/OMPH/OMR/OMRS/OZ/OK/OMH/OMSY/OMT/OMV hydraulic orbit motor, hydraulic pump like
(PV2R series / V/VQ series / SQP series ) vane pumps.If you are interested in any our blince
hydraulic motor pls contact me. Thanks! !
Blince hydraulic motor perfect replace
Parker hydraulic motor
White hydraulic motor
Eaton hydrualic motor
M+S hydraulic motor
