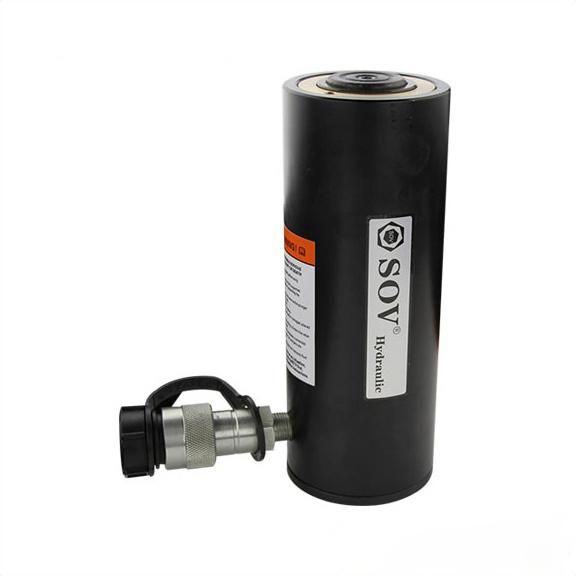

Short Delivery Time Single Acting Hydraulic Cylinder
SOV Hydraulic Technology (Shanghai) Co., Ltd.- Certification：GS, RoHS, CE, ISO9001
- Pressure：Medium Pressure
- Work Temperature：Normal Temperature
- Acting Way：Single Acting
- Working Method：Hydraulic
- Adjusted Form：Regulated Type
Base Info
- Model NO.：SOV-RC-308
- Structure：Piston Type
- Material：Cast Steel
- Name：Single Acting Hydraulic Cylinder
- Capacity：5-100 T
- Working Pressure：70 MPa
- Closed Height：110-449 mm
- Extended Height：135-709 mm
- Stroke：25-260 mm
- out-Side Diameter：38-177 mm
- Weight：1-72.6 Kg
- Certificate：Ce,ISO9001
- OEM：Yes
- Transport Package：Wooden Case
- Specification：CE, ISO, SGS
- Trademark：SOV
- Origin：Shanghai, China
- HS Code：8412210000
- Production Capacity：500 Sets,Month
Description

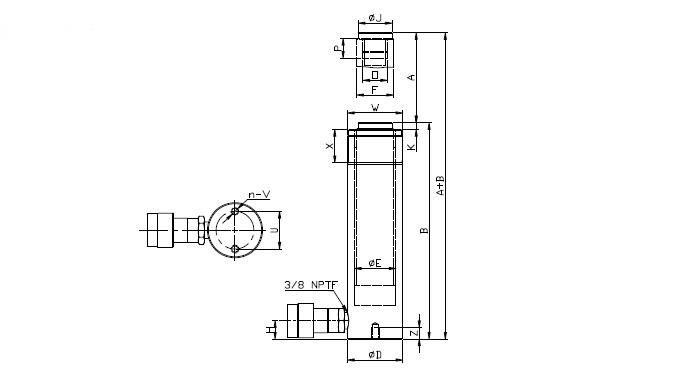

ModelCapacity Working Pressure Coll. Height
A Stroke Effective Area Oil Capacity Ext. Height
B Outside Diameter
D Saddle Dia.
J Weight (T) (MPa) (mm) (mm) (cm2) (cm3) (mm) (mm) (mm) (kg) SOV-RC-51 5 70 110 25 6.5 16 135 38 25 1.0 SOV-RC-53 5 70 165 76 6.5 50 241 38 25 1.5 SOV-RC-55 5 70 215 127 6.5 83 342 38 25 1.9 SOV-RC-57 5 70 273 177 6.5 115 450 38 25 2.4 SOV-RC-59 5 70 323 232 6.5 151 555 38 25 2.8 SOV-RC-101 10 70 89 26 14.5 38 115 57 - 1.8 SOV-RC-102 10 70 121 54 14.5 78 175 57 35 2.3 SOV-RC-104 10 70 171 105 14.5 152 276 57 35 3.3 SOV-RC-106 10 70 247 156 14.5 226 403 57 35 4.4 SOV-RC-108 10 70 298 203 14.5 294 501 57 35 5.4 SOV-RC-1010 10 70 349 257 14.5 373 606 57 35 6.4 SOV-RC-1012 10 70 400 304 14.5 441 704 57 35 6.8 SOV-RC-1014 10 70 450 356 14.5 516 806 57 35 8.2 SOV-RC-151 15 70 124 25 20.3 51 149 69 38 3.3 SOV-RC-152 15 70 149 51 20.3 104 200 69 38 4.1 SOV-RC-154 15 70 200 101 20.3 205 301 69 38 5.0 SOV-RC-156 15 70 271 152 20.3 308 423 69 38 6.8 SOV-RC-158 15 70 322 203 20.3 411 525 69 38 8.2 SOV-RC-1510 15 70 373 254 20.3 516 627 69 38 9.5 SOV-RC-1512 15 70 423 305 20.3 619 728 69 38 10.9 SOV-RC-1514 15 70 474 356 20.3 723 830 69 38 11.8 SOV-RC-251 25 70 139 26 33.2 86 165 85 50 5.9 SOV-RC-252 25 70 165 50 33.2 166 215 85 50 6.4 SOV-RC-254 25 70 215 102 33.2 339 317 85 50 8.2 SOV-RC-256 25 70 273 158 33.2 525 431 85 50 10.0 SOV-RC-258 25 70 323 210 33.2 697 533 85 50 12.2 SOV-RC-2510 25 70 374 261 33.2 867 635 85 50 14.1 SOV-RC-2512 25 70 425 311 33.2 1033 736 85 50 16.3 SOV-RC-2514 25 70 476 362 33.2 1202 838 85 50 17.7 SOV-RC-308 30 70 387 209 42.1 880 596 101 50 18.1 SOV-RC-502 30 70 176 51 71.2 362 227 127 71 15.0 SOV-RC-504 30 70 227 101 71.2 719 328 127 71 19.1 SOV-RC-506 30 70 282 159 71.2 1131 441 127 71 23.1 SOV-RC-5013 30 70 460 337 71.2 2399 797 127 71 37.6 SOV-RC-756 75 70 285 156 102.6 1601 441 146 71 29.5 SOV-RC-7513 75 70 492 333 102.6 3417 825 146 71 59.0 SOV-RC-1006 100 70 357 168 133.3 2239 525 177 71 59.0 SOV-RC-10010 100 70 449 260 133.3 3466 709 177 71 72.6
Pictures

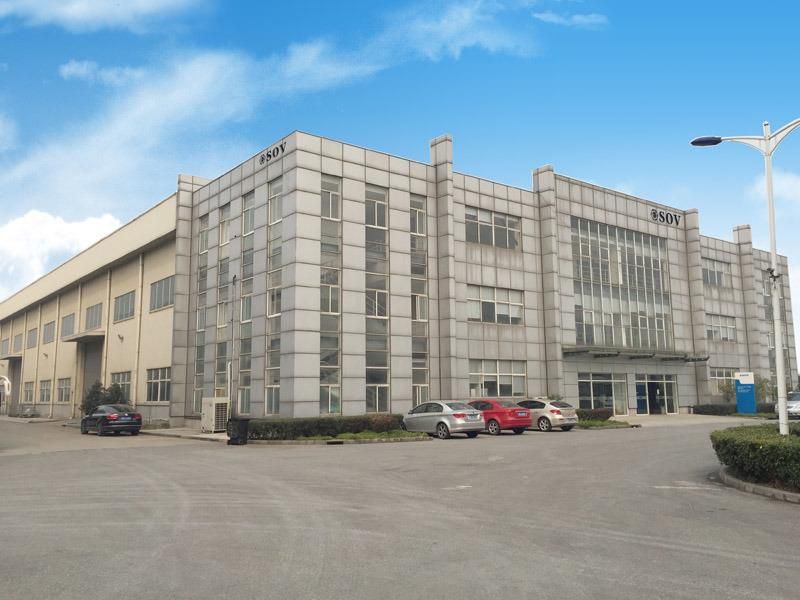

Company Information
Certification
Since the establishment in 1995, we successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.
Our Main Series Products
1.Hydraulic cylinders, jacks (5-3000ton), single acting and double acting, hollow plunger; Low height, ultra pressure, lock nut;
2.Hydraulic torque wrench, electric torque wrench, pneumatic torque wrench (100-160000Nm);
3.Hydraulic bolt tensioner (M24-M600); Hydraulic pullers;
4.Hydraulic pumps, manual and electric type (max up to 4000bar);
5.Integrated hydraulic lifting system solutions ( 4-99 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
6.Hydraulic nut and couplings. (M50-Tr1000), hydraulic hose
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
Our Services
One Year Warranty, repair and service for the whole life, question report response in 24 hours, and reply in 48 hours.
FAQ
Q1: How can contact sales ?
A1: Please call: 0086-21-6856 1366 for pre-sales or click the contact find our website and email address.
Q2: How can I buy sov products?
A2: You can send us an email or an inquiry , our sales provides 24 hours online service.
Q3: How can I get SOV products catalog and price list ?
A3: You can ask our sales man by an inquiry or visit our website.
Q4: What is the shippment time?
A4:Please send us an inquiry fist,then if we have stock , the goods will be shipped at 10-15 days after the payment , if you need custom-made,it will need 20-30 days.
Q5:What is the payment term?
A5: Uaually we sopport 100% T/T , T/T30% in advance, the balance will be paid, L/C at sight, western union.
Contact information
Tel: +86-021-6856 1366
Moble: +86 18918158366
Web: sov-china.en.made-in-china.com
A
B
D
J
Pictures
Company Information
SOV is a manufacturer engaged in designing and manufacturing hydraulic cylinders (capacity covers from 5- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
Since the establishment in 1995, we successfully transformed from OEM manufacturer for many international brands, to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
We are a manufacturer in tools, such as:
- Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
- Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
- Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
- Hydraulic pumps, manual and electric type (max up to 3000bar);
- Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
- Hydraulic nut and couplings. (M50-Tr1000)
Certification
Since the establishment in 1995, we successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.
Our Main Series Products
1.Hydraulic cylinders, jacks (5-3000ton), single acting and double acting, hollow plunger; Low height, ultra pressure, lock nut;
2.Hydraulic torque wrench, electric torque wrench, pneumatic torque wrench (100-160000Nm);
3.Hydraulic bolt tensioner (M24-M600); Hydraulic pullers;
4.Hydraulic pumps, manual and electric type (max up to 4000bar);
5.Integrated hydraulic lifting system solutions ( 4-99 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
6.Hydraulic nut and couplings. (M50-Tr1000), hydraulic hose
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
Our Services
One Year Warranty, repair and service for the whole life, question report response in 24 hours, and reply in 48 hours.
FAQ
Q1: How can contact sales ?
A1: Please call: 0086-21-6856 1366 for pre-sales or click the contact find our website and email address.
Q2: How can I buy sov products?
A2: You can send us an email or an inquiry , our sales provides 24 hours online service.
Q3: How can I get SOV products catalog and price list ?
A3: You can ask our sales man by an inquiry or visit our website.
Q4: What is the shippment time?
A4:Please send us an inquiry fist,then if we have stock , the goods will be shipped at 10-15 days after the payment , if you need custom-made,it will need 20-30 days.
Q5:What is the payment term?
A5: Uaually we sopport 100% T/T , T/T30% in advance, the balance will be paid, L/C at sight, western union.
Contact information
Tel: +86-021-6856 1366
Moble: +86 18918158366
Web: sov-china.en.made-in-china.com
