Hydraulic Parts

Hydraulic Motor Parts Rotor Group for Ms02, Ms05, Ms08, Ms11, Ms18

Wuxi Hyphen Technology Co., Ltd.
  • Certification:CE, ISO9001
  • Type:Hydraulic Motor
  • Hydraulic Valve:Switch Control Valve
  • Auxiliary Components:Pipe and Pipe Fittings
  • Hydraulic Fluid:Mineral Oil
  • Flow Control Valve:Throttle Valve

Base Info

  • Model NO.:MS02-0-121
  • Pressure Control Valve:Sequence Valve
  • Hydraulic Control Unit:Check Valve
  • Hydraulic Motor:Piston Hydraulic Motor
  • Hydraulic Actuator:Hydraulic Cylinder Piston
  • Hydraulic Power Units:Piston Pump
  • Transport Package:in Plywood Case
  • Trademark:Hyphen
  • Origin:China
  • HS Code:8412299090
  • Production Capacity:1000PCS,Year

Description

Basic Info.

Model NO. MS02-0-121 Pressure Control Valve Sequence Valve Hydraulic Control Unit Check Valve Hydraulic Motor Piston Hydraulic Motor Hydraulic Actuator Hydraulic Cylinder Piston Hydraulic Power Units Piston Pump Transport Package in Plywood Case Trademark Hyphen Origin China HS Code 8412299090 Production Capacity 1000PCS/Year

Product Description

Hydraulic Motor Parts Rotor Group for Ms02, Ms05, Ms08, Ms11, Ms18

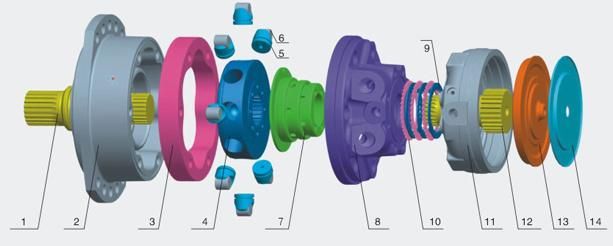

1. Modular design
The whole structure is a modular design and composed of three parts, that is mechanical output device set and hydraulic function set and mechanical brake set, with those sets, this motor is convenient to connect to many equipments in a optimized way.

2. High efficiency
The motors use multifunction plane distribution technology, which is less sensitive to both pressure and temperature and compensate the friction automatically so as to ensure high volume efficiency. Meanwhile rollers and plungers are applied to simplify force, decrease friction and enhance efficiency.

3. High working pressure, low speed, enabling working under free wheel
The maximum pressure can reach 40Mpa, for the inertia of force is small and the plunger is sealed with rings, starting efficiency is high and the low -speed function is good.

4. Supporting axial and radial loading
Independent mechanical output device is applied, the diameter size of the bearing and output axis are both big, at the same time, . The force balance of the hydraulic function device is output by pure torque, so the motor can bear larger axial and radial loading force and output directly through gears or allocated on driving wheels.

5. Driving mechanical brake
Modular structure design is applied, so it is easy to add mechanical brakes to realize direct safety brake and stop brake of output axis.
This series motor is widely used in construction machinery and engineer machinery and farming
equipment etc.
