• Model NO.：DLS2a-L15E
• Nominal Size：20 mm
• Nominal Flow Rate：100 L,Min
• Valve Shaft Stroke：9+9 mm
• Warranty：1 Year
• Certificate：ISO9001
• Color：Customized
• Customized Service：Yes
• Transport Package：Packed in Exported Standard
• Specification：as drawing
• Trademark：HCHC
• Origin：Anhui, China
• Production Capacity：5000 Sets Per Month

Basic Info.

Model NO. DLS2a-L15E Nominal Size 20 mm Nominal Flow Rate 100 L/Min Valve Shaft Stroke 9+9 mm Warranty 1 Year Certificate ISO9001 Color Customized Customized Service Yes Transport Package Packed in Exported Standard Specification as drawing Trademark HCHC Origin Anhui, China Production Capacity 5000 Sets Per Month

Product Description

Performance Characteristics:

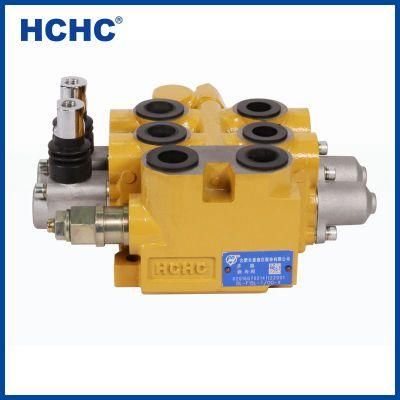

DLS2a-L15E series multi-way valve is a combination of oil inlet valve, reversing valve and oil return valve. Its oil return body is equipped with pressure outlet which can be used together with other hydraulic components. There are three types of reversing valve for selection: A type valve, O type valve and reversing lock. It is widely used in hydraulic system of engineering machinery, mining machinery and other machinery.

Internal hydraulic lock: the reversing lock has built-in a hydraulic lock to achieve the function of dual lock or monolock.
Integral overflow valve: the oil inlet valve built-in an overflow valve to control system pressure.
Oil circuit: parallel connection.

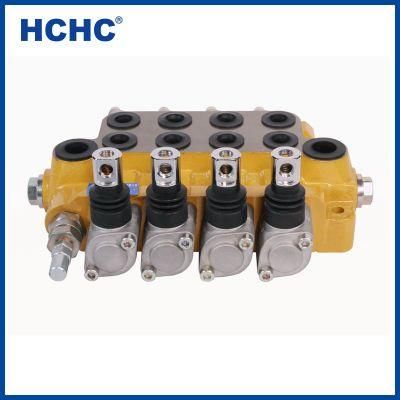

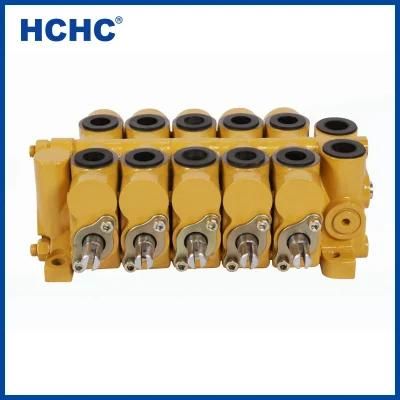

Structure type: sectional valve, any 1~10 sections may combine upon customer's requirement.
Spool function at neutral position: A, O, Y, A1, Y2.

Product Characteristics:
★ compact structure
★ high working pressure
★ good performance
★ reliable work
★ realization of close and remote control of multiple actuators
