• Model NO.：SW(H)-G04,06
• Application：General
• Material：Casting
• Pressure：Medium Pressure
• Structure：Control
• Standard or Nonstandard：Standard
• Selling Units：Single Item
• Temperature of Media：Normal Temperature
• Name：Stacked Pressure Reducing Valve
• Transport Package：Box and Carton Package
• Specification：hydraulic
• Trademark：XLF
• Origin：China
• HS Code：8481201000
• Production Capacity：3000sets,Month

A240AC240V/60Hz     AC220V/50Hz A220AC220V/60Hz     AC200V/50HzA120AC120V/60Hz     AC110V/50Hz A110AC110V/60Hz     AC100V/50HzR240AC240V/60Hz     AC220V/50Hz R220AC220V/60Hz     AC200V/50HzR120AC120V/60Hz     AC110V/50Hz R110AC110V/60Hz     AC100V/50HzD12DC12V D24DC24V

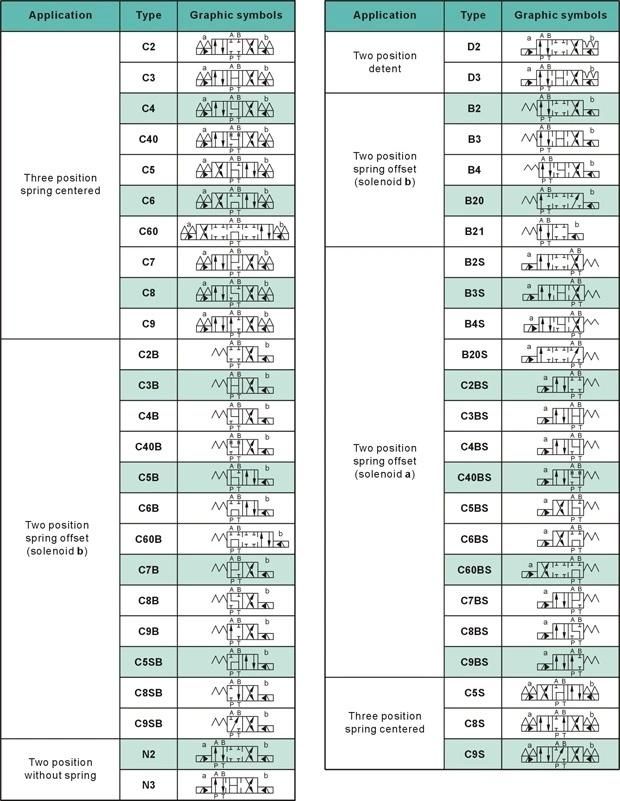

spool type



 Port interconnection:

          With solenoid a energized,P→A,B→T

          With solenoid b energized,P→B,A→T

          Port interconnection are reversed for C5,C6,C60 type

          Please contact us if you can't find spool type from above table.





Specifications

ModelMax. flow
(l/min)

Max. operated  pressure
 (bar)

Max. pilot pressure
(bar)Min. pilot pressure
(bar)Max. back pressure(bar)external draininternal drainSW-G04-**300315250
 8210160SW-G06-**5008SWH-G04-**30035014(external pilot)
4.5(internal pilot)250160SWH-G06-**65013(external pilot)
4.5(internal pilot)

Note: 1.The Max. flow refer to the ulmate flow under the common conditions. And it will be changed with different spool and working conditions.
2.When spool type is C3, C5 ,C6, C60, external pilot must be needed.



Delivery Details

Delivery time depends on the destination and other factors, it may up to 7 work days.

In order to ensure you receive you order tax free upon import, we will declare it as a "Sample"with a lower value.This lower price does not reflect the total price you paid.

After we ship the goods, we will email you the shipping information, as well as tracking number.



FAQ
Questions you maybe inquiry

Q1:Could you custom products?

We can manufacture it according to your drawings or samples.

Q2: I want to buy your products, how can I pay?

A :You can pay via T/T , WEST UNION or other payment terms we reach agreement.

Q3: How can you guarantee the quality?

A: One year's warranty against B/L date.

If You meet with quality problem, we promise to responsible for it.

Q4: If we don't find what we want on your website, what should we do?

A: You can email us the descriptions and pictures of the products you need, We will check whether we can make it.

Q5: Can we buy 1 pc of each item for quality testing?

A: Yes, we understand quality test is important and we are glad to send 1pc for quality testing.

Q6: What is the lead time?

A: For this product, normally 3 days,3 days and lead time is calculated from the day we receive your deposit.

Exact time is determined by factory schedule.


Quantity(Set)	1 - 10	11 - 100	>100
Est. Time(days)	3	15	To be negotiated

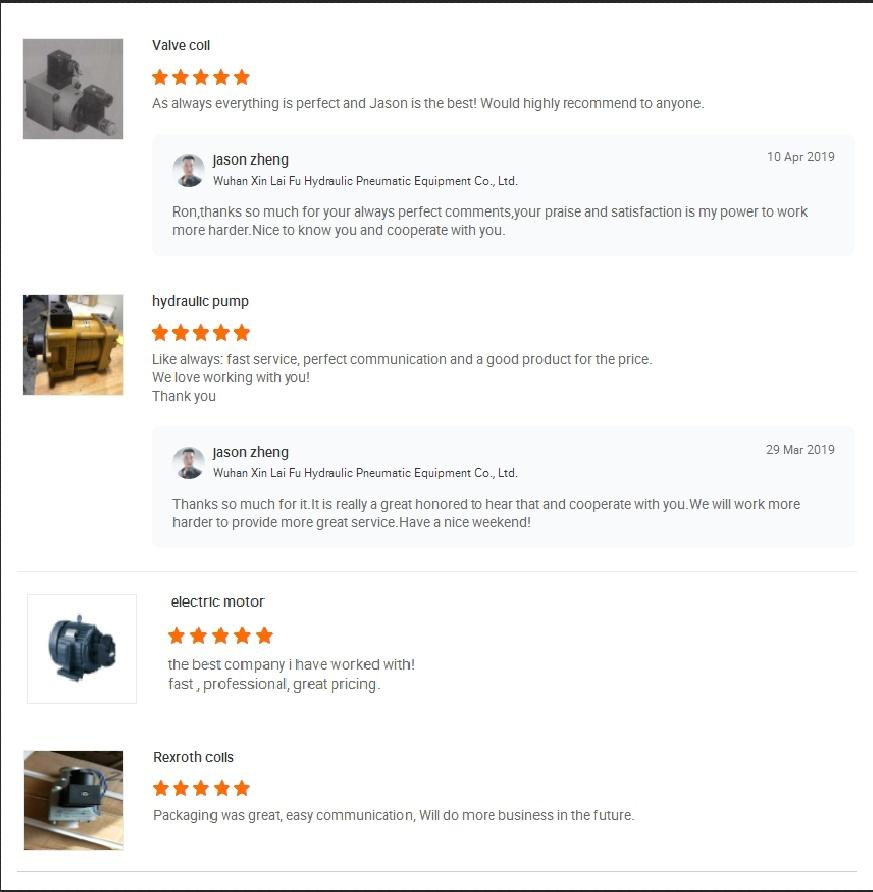

Our customer say:
