• Model NO.：SV-RSM-1500
• Body Height：100mm
• Effective Journey：18.5mm
• Transport Package：Export Wooden Box
• Specification：26.5kg
• Trademark：SOV
• Origin：Shanghai, China
• HS Code：8412210000
• Production Capacity：20sets,Month

Basic Info.

Model NO. SV-RSM-1500 Body Height 100mm Effective Journey 18.5mm Transport Package Export Wooden Box Specification 26.5kg Trademark SOV Origin Shanghai, China HS Code 8412210000 Production Capacity 20sets/Month

Product Description

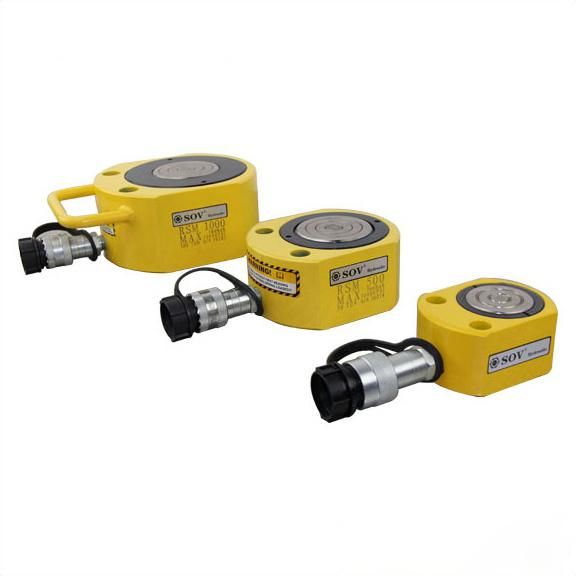

Single Acting Ultra Low Height Hydraulic Cylinder
 Product Descriptions
Ultra low height hydraulic cylinder is widely used in synchronous lifting to replace the rubber bearing for bridge maintenance, synchronous lifting for large equipment maintenance, welding positioning of structural parts, assembly of equipment, piping flange tray separation and other application occasions, spring return design applys to place with a high degree of closure and maximum stroke is the primary factor.






Product Features
Compact, flat design for where other cylinders will not fit
KET-RSM-750, 1000 and 1500 have handles for easy carrying
Mounting holes permit easy fixturing
High strength alloy steel for durability
Single acting, spring return
Hard chrome plated high-quality steel plungers
Plunger wiper reduces contamination, extending cylinder life
Baked enamel finish for increased corrosion resistance
3/8 "- 18NPT coupler and dust cap included on all models.


Model	Capacity	Working Pressure	Collasped height A	Stroke	Effective Area	Oil Capacity	Ext. Height B	Outside Diameter D	Bore Diameter E	Plunger Diameter F	Weight
	(T)	(MPa)	(mm)	(mm)	(cm2)	(cm3)	(mm)	(mm)	(mm)	(mm)	(kg)
SOV-RSM-50	5	70	32	6	6.5	4	38	58X41	28.7	25.4	1.0
SOV-RSM-100	10	70	42	11	14.5	18	54	82X55	42.9	38.1	1.4
SOV-RSM-200	20	70	51	11	28.7	32	62	101X76	60.5	50.8	3.1
SOV-RSM-300	30	70	58	13	42.1	55	71	117X95	73.2	63.4	4.5
SOV-RSM-500	45	70	66	16	62.1	99	82	140X114	88.9	69.8	6.8
SOV-RSM-750	75	70	79	16	102.6	164	95	165X139	114.3	82.6	11.3
SOV-RSM-1000	90	70	85	16	126.7	253	101	178X153	127	92.2	14.5
SOV-RSM-1500	150	70	100	16	198.1	317	116	215X190	158.8	114.3	26.3
SOV-RSM-2000	200	70	105	16.5	283.4	467	121.5	264X250	190	160	39.5

Industry Applications


Model	Capacity	Working Pressure	Coll. Height A	Stroke	Effective Area	Center Hole Dia. Y	Oil Capacity	Outside Diameter D	Plunger  Dia. F	Weight
	(T)	(MPa)	(mm)	(mm)	(cm2)	(mm)	(cm3)	(mm)	(mm)	(kg)
SOV-RCH-120	13	70	55	8	17.9	19.6	14	69	35.1	1.5
SOV-RCH-121			120	42	17.9	19.6	75	69	35.1	2.8
SOV-RCH-123			184	76	17.9	19.6	136	69	35.1	4.4
SOV-RCH-202	20	70	162	49	30.7	26.9	150	98	54.1	7.7
SOV-RCH-206			306	155	30.7	26.9	476	98	54.1	14.1
SOV-RCH-302	30	70	178	64	46.6	33.3	298	114	63.5	10.9
SOV-RCH-306			330	155	46.6	33.3	722	114	63.5	21.8
SOV-RCH-603	60	70	247	76	82.3	53.8	626	159	91.9	28.1
SOV-RCH-606			323	153	82.3	53.8	1259	159	91.9	35.4
SOV-RCH-1003	100	70	254	76	133.0	79.0	1011	212	127	63.0

Field Applications
Synchronous lifting to replace the rubber bearing for bridge maintenance
Synchronous lifting to replace the rubber bearing for high speed rail maintenance

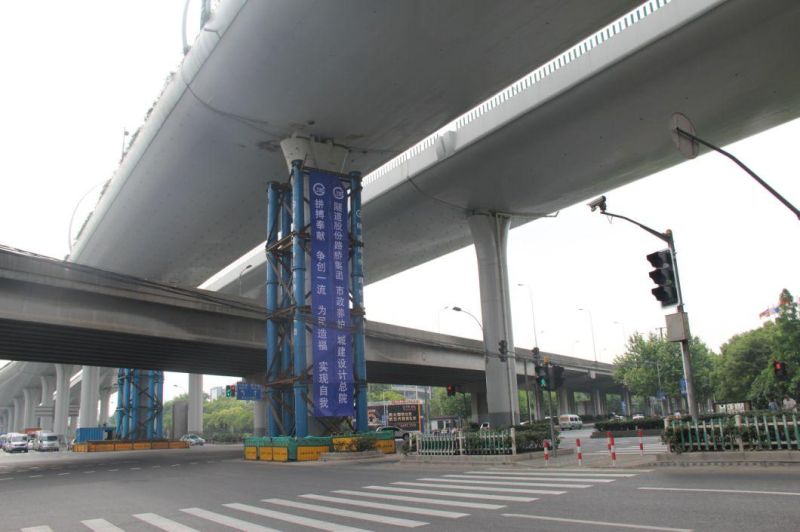

Fine tuning for synchronous lifting for urban viaduct construction
Fine tuning for  marine diesel engine installation
Synchronous lifting of steam turbine, equipment maintenance in thermal power plant

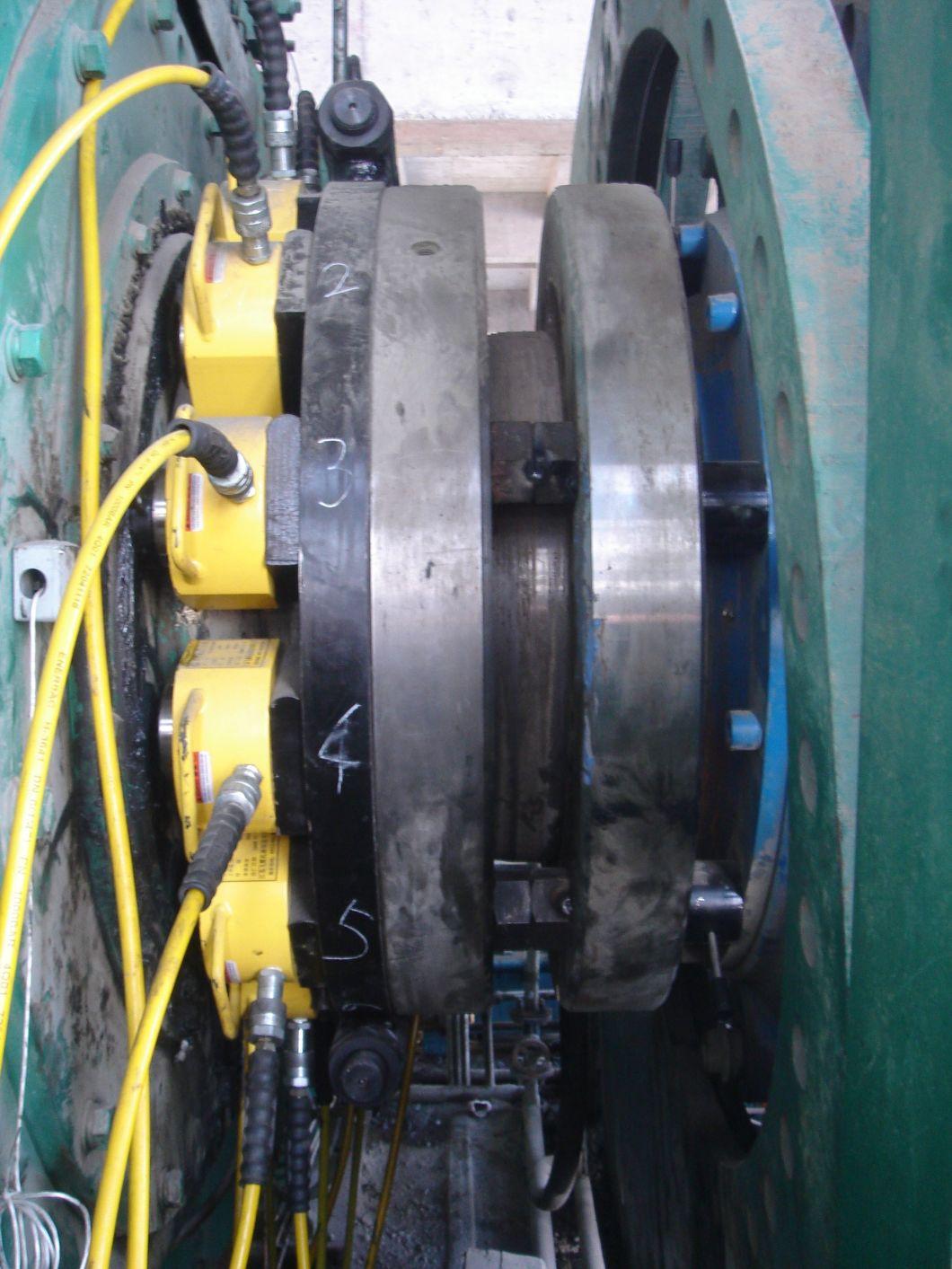

Simultaneous separation of speed reducer and roller press maintenance in cement plant
Welding adjustment of locomotive manufacturing car body structure
Lifting operation of large equipment installation and maintenance




FAQ

Q1: How can contact sales ?

A1: Please call: 0086 21 685 61366 for pre-sales or click the contact find our website and email address.

Q2: How can I buy SOV products in my country?

A2: Please send us an inquiry or email , we will reply to your if there is distributor in your country.

Q3: Can I have SOV products catalog and price list ?

A3: Please visit our English website:sov-china.en.made-in-china.com to download our E-catalog, and send us an email for price list

Q4: How long does it take to get the product If I place an order?

A4: If products stock available, after confirmation of your payment or advance payment , we will pack and deliver in 3-7 days. If you select international parcel service, it can be arrived in 3-7 days. If it is by sea shipment, it will take 15-45 days depending on different locations

Q5: How to make payment ?

A5: First send us an inquiry, and we will reply you quotation, if our price suits you, we will prepare proforma invoice with our banking details.

Q6: Manufacturing time?

A6: Please send us an inquiry for stock condition, if we don't have stock, and it is our standard products (refer to our model),it can be produced in 10-20 days. If it is customized, not our standard products, it will take 20-45 days to produce.


Why Choose SOV ?

Quality: SOV has been in the industry for than 20 years. We have been trusted by domestic mega statedstate owned companies, as well as international distributors and renowned brands. We put quality as lifeline. We never manufacture or sale defected product, or lowering our price at the cost of products quality.

Service: SOV promised to respond to customers products quality or service in 24 hours reported, and solutions shall be provided in 48 hours.





Company Information

 SOV is a profesional manufacturing in hydraulic tools and products,we have been in the industry for more  than 20years.Since the establishment in 1995,we successfully transformed from OEM manufacturer to creater  our own brand SOV ,and our factory has been approved by CE ,ISO9001:2008 consecutively .Our Products  have been widely uesd in petrochemical ,cement ,shipbuilding ,steel plant and  heavy constructions areas,etc.
