Carbon Steel Hydraulic Cylinder Hsg125/90 for Sale

HEFEI CHANGYUAN HYDRAULIC CO., LTD.
  • Certification：ISO9001
  • Pressure：High Pressure
  • Work Temperature：Normal Temperature
  • Acting Way：Double Acting
  • Working Method：Straight Trip
  • Adjusted Form：Regulated Type

Base Info

  • Model NO.：HSG125,90*40-00
  • Structure：Piston Type
  • Material：Carbon Steel
  • Body Material：Carbon Steel
  • Power：Hydraulic
  • Bore Diameter：125 mm
  • Rod Diameter：90 mm
  • Stroke：40 mm
  • Nominal Pressure：200 Bar
  • Type：Clamp Cylinder
  • Warranty：1 Year
  • Certificate：ISO9001:2008
  • Application：Trucks, Forklift, Crane, Loader, Road Machinery
  • Transport Package：Exported Standard
  • Trademark：HCHC
  • Origin：Anhui, China
  • Production Capacity：5000 Pieces Per Month

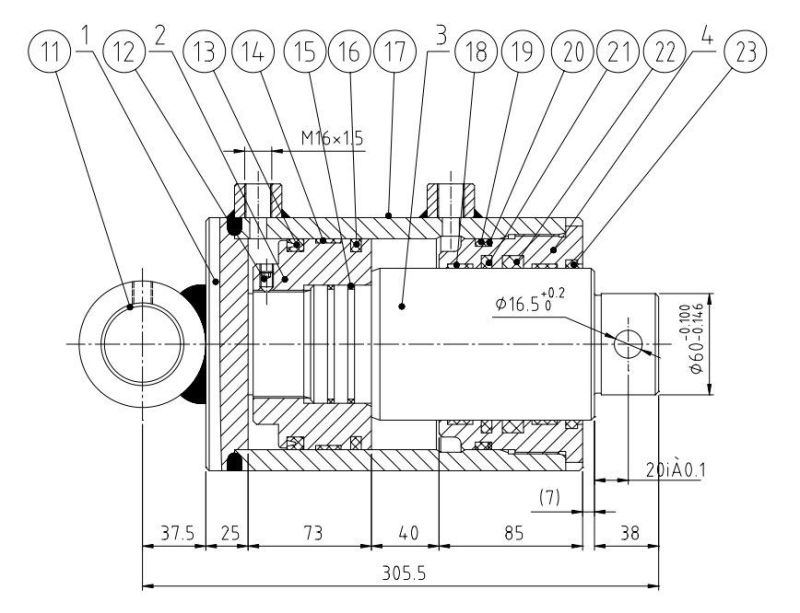

Description

ModelBore Diameter
(mm)Rod Diameter
(mm)Stroke
(mm)Nominal Pressure
(bar)HSG125/90*40-001259040200Carbon Steel Hydraulic Cylinder Hsg125/90 for SaleCarbon Steel Hydraulic Cylinder Hsg125/90 for Sale
