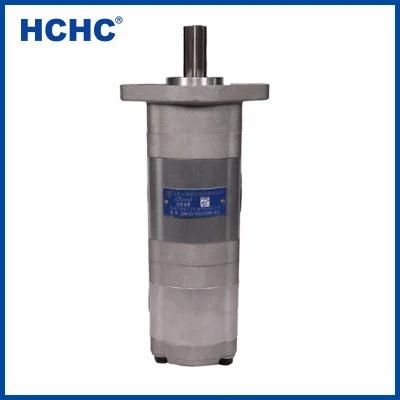

High Pressure Hydraulic Power Unit Hydraulic Double Gear Oil Pump Cbwlcq1-D320/D308-Alh
HEFEI CHANGYUAN HYDRAULIC CO., LTD.- Certification：ISO9001
- Pressure：High Pressure
- Work Temperature：Normal Temperature
- Installation：Vertical
- Material：Aluminum Alloy
- Product Name：Hydraulic Double Gear Pump
Base Info
- Model NO.：CBWLCQ1-D320,D308-ALH
- Nominal Displacement：20,12 Ml,R
- Rated Pressure：160 Bar
- Maximum Pressure：200 Bar
- Minimum Speed：800 Rpm
- Rated Speed：2000 Rpm
- Maximum Speed：3000 Rpm
- Volume Efficiency：90 %
- Warranty：1 Year
- Certificate：ISO9001:2008
- Transport Package：Packed in Export Standard
- Trademark：HCHC
- Origin：Anhui, China
- Production Capacity：8000 Sets Per Month
Description
Basic Info.
Model NO. CBWLCQ1-D320/D308-ALH Nominal Displacement 20/12 Ml/R Rated Pressure 160 Bar Maximum Pressure 200 Bar Minimum Speed 800 Rpm Rated Speed 2000 Rpm Maximum Speed 3000 Rpm Volume Efficiency 90 % Warranty 1 Year Certificate ISO9001:2008 Transport Package Packed in Export Standard Trademark HCHC Origin Anhui, China Production Capacity 8000 Sets Per MonthProduct Description
Performance Characteristics:
★ Pump housing is made of high strength aluminum alloy material.
★ The shaft extension type: P (plain key), H( rectangle spline), flat key, woodruff key.
★ The joining type of inlet/outlet is flange (F) or thread (L).
★ The auto-compensation unit of axial clearance ensures the high volumetric efficiency.
★ Higher working pressure, wider speed range.

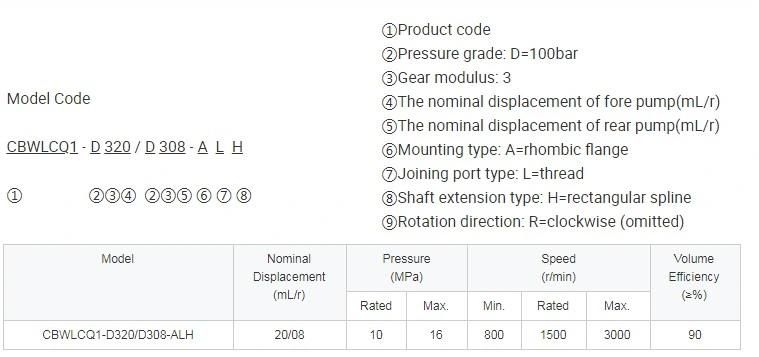

Model Code:

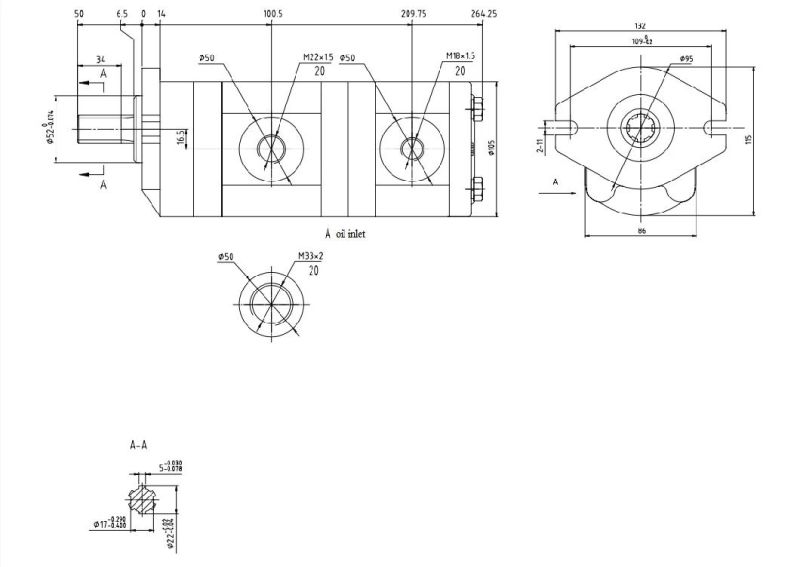

Outline Dimensions:
