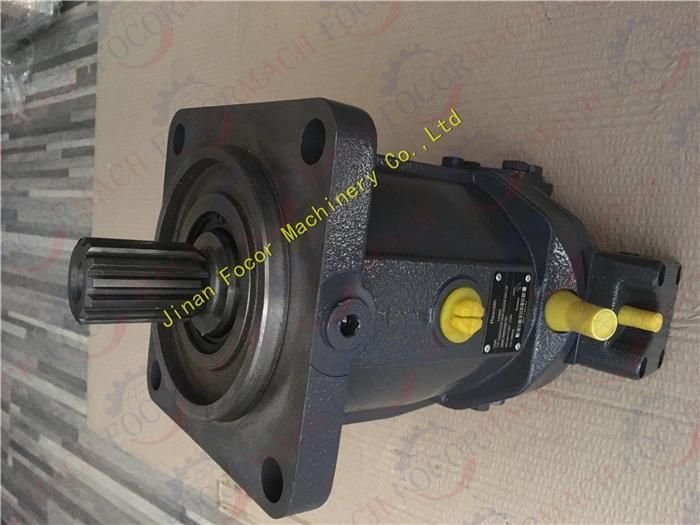

Rexroth A6vm Series Hydraulic Piston Motor
Jinan Focor Machinery Co., Ltd.- Certification：GS, CE, ISO9001
- Excitation Mode：Other
- Power Rating：Adjustable
- Casing Protection：Iron Casting
- Number of Poles：Other
- Speed：High Speed
Base Info
- Model NO.：A6vm
- Type：Plunger Type
- Model：A6ve55
- Original：China
- Application：Construction Machinery
- Transport Package：Wooden Case for Export
- Specification：piston
- Trademark：FOCOR
- Origin：China
- HS Code：84122910
- Production Capacity：2000 Sets,Month
Description
Weight (approx.)m kg 26 34 47 60 64 80 90 Hydraulic fluid
Before starting project planning, please refer to our data sheets RE 90220 (mineral oil), RE 90221 (environmentally acceptable hydraulic fluids), RE 90222 (HFD hydraulic fluids) and RE 90223 (HFA, HFB, HFC hydraulic fluids) for detailed information regarding the choice of hydraulic fluid and application conditions.
The variable motor A6VM is not suitable for operation with HFA hydraulic fluid. If HFB, HFC, or HFD or environmentally acceptable hydraulic fluids are used, the limitations regarding technical data or other seals must be observed.
Details regarding the choice of hydraulic fluid
The correct choice of hydraulic fluid requires knowledge of the operating temperature in relation to the ambient temperature: in a closed circuit, the circuit temperature, in an open circuit, the reservoir temperature.
The hydraulic fluid should be chosen so that the operating viscosity in the operating temperature range is within the optimum range.
We recommended that the higher viscosity class be selected in each case.
Example: At an ambient temperature of X °C, an operating temperature of 60 °C is set in the circuit. In the optimum viscosity range, this corresponds to the viscosity classes VG 46 or VG 68; to be selected: VG 68.
Note: The case drain temperature, which is affected by pressure and speed, can be higher than the circuit temperature or reservoir temperature. At no point of the component may the temperature be higher than 115 °C. The temperature difference specified is to be taken into account when determining the viscosity in the bearing.
Before starting project planning, please refer to our data sheets RE 90220 (mineral oil), RE 90221 (environmentally acceptable hydraulic fluids), RE 90222 (HFD hydraulic fluids) and RE 90223 (HFA, HFB, HFC hydraulic fluids) for detailed information regarding the choice of hydraulic fluid and application conditions.
The variable motor A6VM is not suitable for operation with HFA hydraulic fluid. If HFB, HFC, or HFD or environmentally acceptable hydraulic fluids are used, the limitations regarding technical data or other seals must be observed.
Details regarding the choice of hydraulic fluid
The correct choice of hydraulic fluid requires knowledge of the operating temperature in relation to the ambient temperature: in a closed circuit, the circuit temperature, in an open circuit, the reservoir temperature.
The hydraulic fluid should be chosen so that the operating viscosity in the operating temperature range is within the optimum range.
We recommended that the higher viscosity class be selected in each case.
Example: At an ambient temperature of X °C, an operating temperature of 60 °C is set in the circuit. In the optimum viscosity range, this corresponds to the viscosity classes VG 46 or VG 68; to be selected: VG 68.
Note: The case drain temperature, which is affected by pressure and speed, can be higher than the circuit temperature or reservoir temperature. At no point of the component may the temperature be higher than 115 °C. The temperature difference specified is to be taken into account when determining the viscosity in the bearing.
