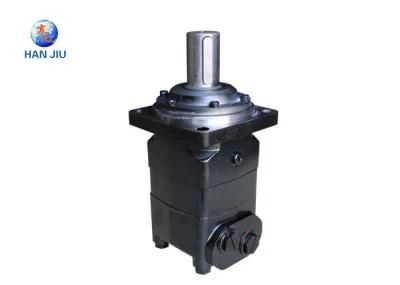

Hydraulic Char Lynn 2000 Series Motor Replacement BMK2 Series

Shijiazhuang Hanjiu Technology Co., Ltd.
  • Certification：CE, ISO9001
  • Type：-
  • Transport Package：Carton Packing
  • Specification：BMK2 series
  • Trademark：Hanjiu
  • Origin：China

Base Info

  • Model NO.：BMK2 series
  • HS Code：84122910
  • Production Capacity：500000 Per Year

Description

Main Specifications:TypeBMK2BMK2BMK2BMK2BMK2BMK2BMK2BMK2BMK2BMK26580100125160200250315400475Geometric displacement
(cm3 /rev.)6580100.9129.8156.8193.4242.5304.3390.8485Max. speed (rpm)cont.835800742576477385308246191153int.990980924720713577462365287230Max. torque (N·m)cont.185235295385455540660765775845int.245345445560570665820885925930Max. pressure drop (MPa)cont.20.521212120.520.520.52115.512int.27.5313131262626241714peak313131313131313120.517Max. flow (L/min)cont.55657575757575757575int.65809595115115115115115115Weight (kg)9.29.49.71010.210.51111.51212.4* Continuous pressure :Max. value of operating motor continuously.* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.* Peak pressure:Max. value of operating motor in 0.6 second per minute.
Hydraulic Char Lynn 2000 Series Motor Replacement BMK2 SeriesHydraulic Char Lynn 2000 Series Motor Replacement BMK2 SeriesHydraulic Char Lynn 2000 Series Motor Replacement BMK2 SeriesHydraulic Char Lynn 2000 Series Motor Replacement BMK2 SeriesHydraulic Char Lynn 2000 Series Motor Replacement BMK2 Series
