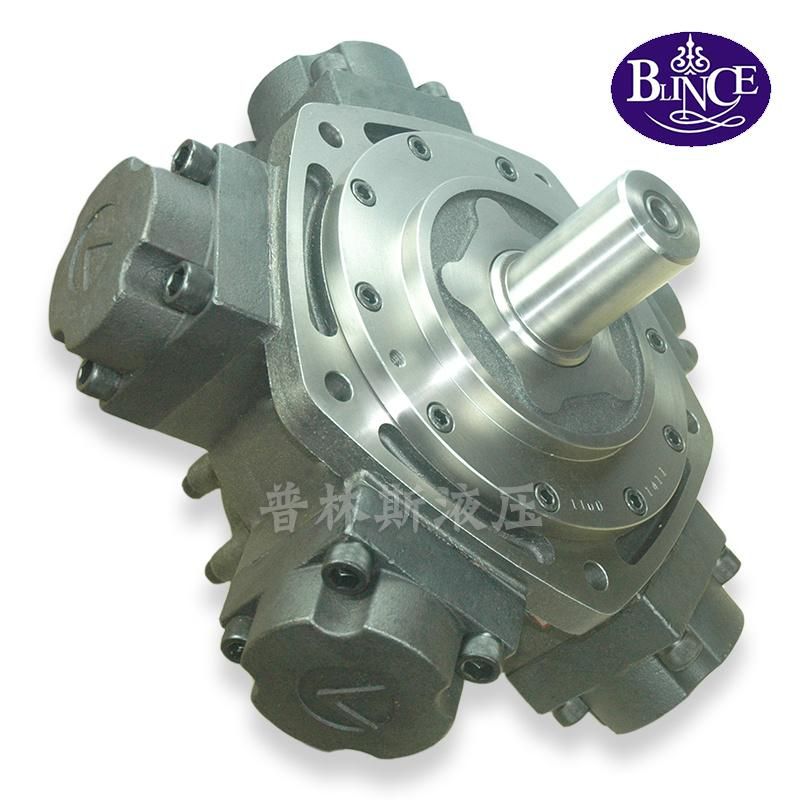

Blince Radial Piston Motor 31-2500-B21
Dongguan Blince Machinery & Electronics Co., Ltd.- Certification：CE, ISO9001
- Speed：Low Speed
- Type：Hydraulic Motor
- Brand Name：Blince
- Replace：Intermot Iam,Nhm;Sataffa;
- Minimum Order Quantity：1
Base Info
- Model NO.：31-2500-B21
- Weight：298 Kg
- Hydraulic Valve：Proportional Control Valve
- Auxiliary Components：Pipe and Pipe Fittings
- Hydraulic Fluid：Synthetic Hydraulic Oil
- Pressure Control Valve：Pressure Reducing Valve
- Hydraulic Motor：Piston Hydraulic Motor
- Hydraulic Power Units：Piston Pump
- Transport Package：Carton Box, Wooden Case, Pallet
- Specification：CE, ISO9001
- Trademark：Blince
- Origin：China
- HS Code：8412291000
- Production Capacity：1000 Sets Per Month Meet Your Requirment
Description
ModelDisplacement Pressure Torque Speed range Weight
(kg) Rated Max Rated N.m/Mpa NHM1-63 77 25 32 248 11 15-1500 20 NHM1-80 91 25 32 335 13 15-1250 20 NHM1-100 96 25 32 355 14 15-1000 20 NHM1-110 113 25 32 419 17 15-1000 20 NHM1-125 126 20 25 371 19 15-1000 20 NHM1-140 138 20 25 410 20 15-1000 20 NHM1-160 156 16 20 376 24 15-1000 20 NHM1-200 196 16 20 464 19 15-1000 20 NHM2-100 113 25 32 419 17 15-1250 27 NHM2-125 138 25 32 512 20 15-1250 27 NHM2-150 159 25 32 588 24 15-1000 27 NHM2-175 180 20 25 532 27 15-1000 27 NHM2-200 207 20 25 611 31 8-800 27 NHM2-250 235 16 20 556 35 8-630 27 NHM2-280 276 16 20 653 41 8-500 27 NHM3-175 181 25 32 670 27 8-1000 35 NHM3-200 201 25 32 743 30 8-800 35 NHM3-220 222 25 32 819 33 8-800 35 NHM3-250 254 20 20 752 38 8-630 35 NHM3-300 289 20 20 856 43 8-500 35 NHM3-350 340 20 20 1000 50 8-400 35 NHM3-400 380 18 22.5 1008 56 8-350 35 NHM6-400 397 25 32 1469 59 5-630 57.5 NHM6-450 452 25 32 1672 67 5-630 57.5 NHM6-500 491 20 25 1451 73 5-500 57.5 NHM6-600 594 20 25 1756 88 4-500 57.5 NHM6-700 683 16 20 1616 101 4-400 57.5 NHM6-750 754 16 20 1785 112 4-320 57.5 NHM8-600 617 25 32 2282 91 4-500 72 NHM8-700 710 25 32 2626 105 4-400 72 NHM8-800 810 20 25 2396 120 4-400 72 NHM8-900 889 20 25 2629 131 3-350 72 NHM8-1000 1000 16 20 2366 148 3-300 72 NHM11-700 707 25 32 2612 104 4-400 94 NHM11-800 784 25 32 2899 116 4-400 94 NHM11-900 894 25 32 3306 132 4-400 94 NHM11-1000 981 20 25 2902 145 3-320 94 NHM11-1100 1104 20 25 3265 163 3-320 94 NHM11-1200 1234 16 20 2929 182 3-320 94 NHM11-1300 1301 16 20 3079 192 3-250 94 NHM16-1400 1413 25 32 5224 209 2-400 170 NHM16-1600 1648 20 25 4874 244 2-400 170 NHM16-1800 1815 20 25 5367 268 2-350 170 NHM16-2000 2035 18 22.5 5416 301 2-350 170 NHM16-2400 2267 16 20 5364 335 2-250 170 NHM31-2500 2553 25 32 9438 378 2-200 298 NHM31-2800 2680 20 25 7935 397 1-200 298 NHM31-3000 3063 20 25 9057 453 1-200 298 NHM31-3150 3218 20 25 9518 476 1-160 298 NHM31-3500 3561 20 25 10530 527 1-160 298 NHM31-4000 4153 18 22.5 11053 614 1-160 298 NHM31-4500 4522 16 20 10698 669 1-160 298 NHM31-5000 4828 16 20 11423 714 1-160 298 NHM70-5000 4968 20 25 14626 731 1-160 550 NHM70-5400 5452 20 25 16125 806 1-160 550 NHM70-6000 5984 20 25 17697 885 0.5-125 550 NHM70-6300 6540 18 22.5 17408 967 0.5-125 550 NHM70-7000 7122 16 20 16849 1053 0.5-125 550
Product show for reference(16-1800 with standard flat key):
BLINCE motor features:
1, Shell processing technology - the shell is extruded after nitriding treatment (wear, fatigue, high temperature), was bright black.
2, Plunger - plunger nitriding process with the internal unique plunger ring more anti-wear.
3, Oil seal - original Taiwan NAK skeleton oil seal, high temperature and pressure is not easy to oil.
4, Production equipment - Chinese well-known brands, "Haitian" processing and production equipment, processing more accurate, better performance.
5, Crankshaft assembly - 120 degrees of high temperature through the "hot up" principle installed bearings, and then naturally "cold", will not damage the crankshaft. Bearings are purchased from the famous Chinese brand "Luo axis".
6, Screws - Taiwan Peng Chi brand.
7, Factory inspection - a clear responsibility system, each product on the machine after the success of the test, the quality inspection staff can be issued by the certificate and warranty card factory.
Applications:
BLINCE radial piston motor is widely used in plastic machinery (injection molding machine, blow molding machine, granulator, etc.), rubber machinery (disc shoes, etc.), fisheries (from network machines, network machines, hoists, Windlass machinery, engineering machinery (drilling machine, boring machine, etc.) and other mechanical fields.
Guarante:
1. Guarantee:1 year after selled.
2. During guarantee,the items share free repairs or replacement.
3. Customer is responsible for the freight come-and-go,and the custom tax.
4. You may consider to send the defective item with a economical way,and we send back the repaired items with your new order together.
5. To save the cost,pls send the item back without packing.
6. Pls provide the defective appearance and related invoice number.
7.We do not repair or replace item with an expired warranty.
8.All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email or give us a call any time.
If you have any questions about choosing model or techinical assistance,dont hesitate to ask winnie. 24 hours waiting for your call!
Winnie Tan
Cellphone:+8613527998635
Fax: 0086-769-851580786
Thanks for reading and hope you have a good day!
