• Model NO.：Eaton char-lynn 6000 series motor
• Type：Hydraulic Motor
• Usage：Hydraulic Oil
• Hydraulic Motor：Vane Hydraulic Motor
• Warranty：One Year
• Standard or Nonstandard：Standard
• Hydraulic Actuator：Hydraulic Motor
• Motor Shafts：Straight, Splined and Tapered
• Application：Plastic Machine, Agriculture Machine
• Hydraulic Power Units：Vane Pump
• Motor Flange Shape：Square and Rhombus Flange
• Processing：Forging & Cutting &Phosphating
• Transport Package：Industrail Plastic Bag+Carton
• Specification：CE, ISO9001
• Trademark：blince
• Origin：Guangdong
• HS Code：8412291000
• Production Capacity：6000

Basic Info.

Model NO. Eaton char-lynn 6000 series motor Type Hydraulic Motor Usage Hydraulic Oil Hydraulic Motor Vane Hydraulic Motor Warranty One Year Standard or Nonstandard Standard Hydraulic Actuator Hydraulic Motor Motor Shafts Straight, Splined and Tapered Application Plastic Machine, Agriculture Machine Hydraulic Power Units Vane Pump Motor Flange Shape Square and Rhombus Flange Processing Forging & Cutting &Phosphating Transport Package Industrail Plastic Bag+Carton Specification CE, ISO9001 Trademark blince Origin Guangdong HS Code 8412291000 Production Capacity 6000

Product Description

11.93 Cu in char-lynn 6000 Series hydraulic Motor
BMK6 series motor adapt the advanced Geroler gear set designed with disc distribition flow and high pressure.The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.

Interchangeable with CHARLYNN 6000 motors.

SPECIFICATIONS
Model BMK6-200
Disp. 11.93 cu.in./rev.

Pressure
2900 PSI (Cont.)
4350 PSI (Int.)

Torque
5000 in-lb. (Cont.)
7434 in-lb. (Int.)

Speed
765 RPM (Cont.)
865 RPM (Int.)

Flow
39.6 GPM (Cont.)
44.9 GPM (Int.)

Rotation Reversible

Mount 4 bolt SAE C
6.375 bolt circle, 5" pilot dia.
Shaft 1-1/2" dia. x 3.01" shaft w/5/16" key tapped 3/8-16
Ports SAE 16
Size 10.43" x 5.75" x 5.75"
Shpg. 61 lbs.

Characteristic features:
* Advanced manufacturing devices for the Geroler gear set,which use low pressure of start-up,provide smooth and reliable operation and high efficiency.
* Advanced design in disc distribution flow ,which can automatically compensate in operating with high volume efficiency and long life ,provide smooth and reliable operation.
* Shaft seal can bear high pressure of back .
* The output shaft adapts in tapered roller bearings that permit high axial and radial forces.The case can offers capacities of high pressure and high torque in the wide of applications.

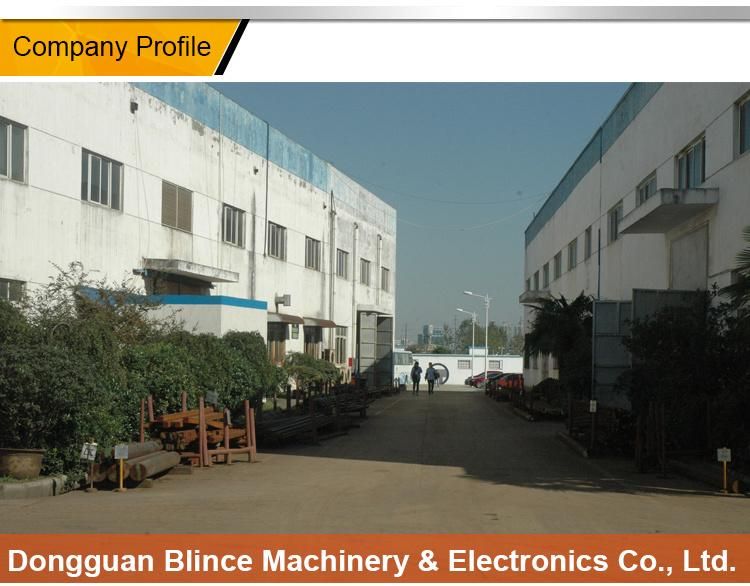

Blince factory:
Blince profssion supply all series hydraulic motor like OMM/OMP/OMPH/OMR/OMRS/OZ/OK/OMH/OMSY
/OMT/OMV hydraulic orbit motor, hydraulic pump like ( PV2R series /V series / SQP series ) vane pumps. If you are interested in any our blince hydraulic motor pls Contact me. Thanks! !









Amy chen
Tel: +86-13560881920
