Sn5 Sectional Directional Control Valves Manual Hydraulic Directional Valve 26gpm
Shijiazhuang Hanjiu Technology Co., Ltd.- Function：Flow Control
- Installation：Threaded Cartridge
- Drive：Hydraulic
- Type：Directly Operated Type
- Spool：1, 2, 3, 4, 5, 6, ...
- Flow：40lt, 50lt, 60lt, 90lt, 100lt, 120lt, 140lt, ...
Base Info
- Model NO.：DCV100
- Transport Package：Carton, Pallet
- Specification：20 KGS
- Trademark：HANJIU
- Origin：China
- HS Code：8481802990
- Production Capacity：10000 Pieces
Description
Basic Info.
Model NO. DCV100 Transport Package Carton, Pallet Specification 20 KGS Trademark HANJIU Origin China HS Code 8481802990 Production Capacity 10000 PiecesProduct Description

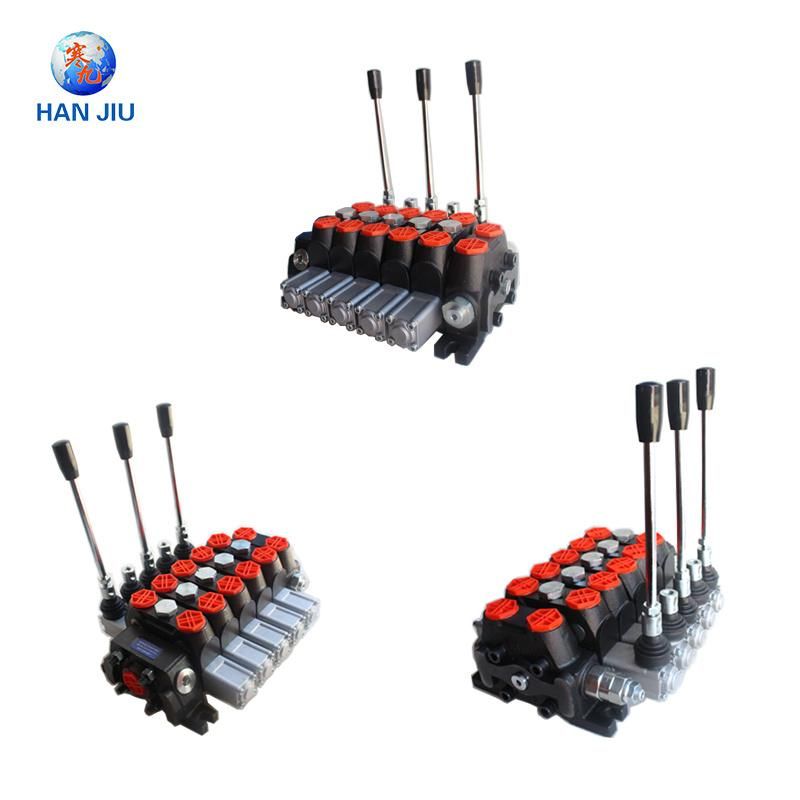

SN5 Sectional Directional Control Valves manual hydraulic directional valve 26gpmDCV directional control valve have the features of high pressure, compact construct, stable over load valveperformance and high universality.It is widely used on construction machine,sanitation vehicle, drilling machine, special purpose vehicle, etc.- Compact construction. Low pressure drop.
Long service life. High efficiency.
Choice of various operation methods, such as manual, pneumatic, hydraulic, and electro-hydraulic.
Choice of various ports and circuit valves.
Spring return.
High accuracy spool is hardened for long term accuracy.
Sub-plate mounting.
Handle shift operation.
| Norminal Flow | 100 L/min |
| Max Flow | 27GPM |
| Max Pressure | 315 bar/4600PSI |
| Control Type | manual, pneumatic, hydraulic, electro-hydraulic |
| Allowed back pressure | ≤1 mpa |
| Oil port size | customizable |
| Operating range | 15-75MM2/S |
| Viscosity | min 12 MM2/S |
| max 400 MM2/S | |
| Structure | sectional 1-12sections |
