• Model NO.：SOV-RRH-60012
• Structure：Piston Cylinder
• Material：Steel
• Name：Double Acting Hollow Hydraulic Cylinder
• Capacity：600 Ton
• Stroke：300 mm
• Closed Height：700 mm
• Working Pressure：70 MPa
• Extended Height：1000 mm
• Center Hole Diameter：140 mm
• out-Side Diameter：495 mm
• Certificate：Ce&ISO
• OEM：Yes
• Transport Package：Standard Export Wooden Box
• Specification：CE, ISO, SGS
• Trademark：SOV
• Origin：Shanghai, China
• HS Code：8412210000
• Production Capacity：5000sets Per Month

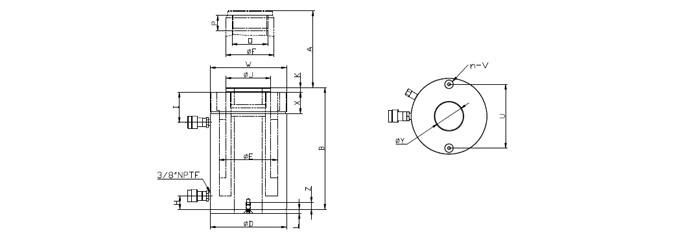

ModelCapacityWorking PressureColl. Height

AStrokeCapacityOutside Diameter
DPlunger
Diameter
FCentral hole Diameter
YWeight(kN)(T)(MPa)(mm)(mm)SpreadCollapse(mm)(mm)(mm)(kg) SOV-RRH-307307033017832621311463.533.321 SOV-RRH-301043125832621311463.533.327 SOV-RRH-60360702478957638015991.953.828SOV- RRH-60632316657638015991.953.835 SOV-RRH-601043825757638015991.953.845 SOV-RRH-1001100701653893161221212779.233SOV- RRH-10032547693161221212779.261 SOV-RRH-100634215393161221212779.279 SOV-RRH-1001046025793161221212779.2106 SOV-RRH-1508150703492031429718247152.479.2111 SOV-RRH-20010200705232502028933300203110208 SOV-RRH-200125733002028933300203110226SOV- RRH-600126007070030059822873495305140800
Pictures








Company Information

SOV is a manufacturer engaged in designing and manufacturing hydraulic cylinders (capacity covers from 5- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.

Since the establishment in 1995, we successfully transformed from OEM manufacturer for many international brands, to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.

Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards,China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.

We are a manufacturer in tools, such as:

• Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
• Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
• Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
• Hydraulic pumps, manual and electric type (max up to 3000bar);
• Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
• Hydraulic nut and couplings. (M50-Tr1000)

Certification

Since the establishment in 1995, we successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.






Our Services

One Year Warranty, repair and service for the whole life, question report response in 24 hours, and reply in 48 hours.


FAQ

Q1: How can contact sales ?
A1: Please call for pre-sales or click the contact find our website and email address.

Q2: How can I buy sov products?
A2: You can send us an email or an inquiry , our sales provides 24 hours online service.

Q3: How can I get SOV products catalog and price list ?
A3: You can ask our sales man by an inquiry or visit our website.

Q4: What is the shippment time?
A4:Please send us an inquiry fist,then if we have stock , the goods will be shipped at 10-15 days after the payment , if you need custom-made,it will need 20-30 days.

Q5:What is the payment term?
A5: Uaually we sopport 100% T/T , T/T30% in advance, the balance will be paid,  L/C at sight, western union.
