• Model NO.：210701
• Structure：Piston Type
• Material：Alloy Steel
• Transport Package：Plywood
• Specification：Weight: 101 Ib
• Trademark：ROCA
• Origin：China
• HS Code：8412210000
• Production Capacity：100000

Basic Info.

Model NO. 210701 Structure Piston Type Material Alloy Steel Transport Package Plywood Specification Weight: 101 Ib Trademark ROCA Origin China HS Code 8412210000 Production Capacity 100000

Product Description

Introduction

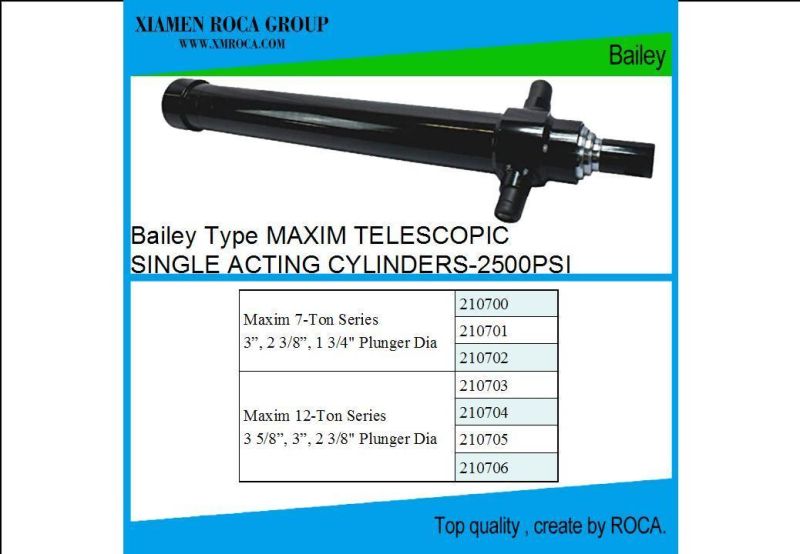

This 3-stage Bailey Hydraulics Maxim 7-Ton Telescopic Cylinder is designed with multiple stages that enable longer strokes to be achieved using less space. Features 2 3/8in, 3in, and 1 3/4in. sections for versatility. The collapsed cylinder size plus long stroke capability makes this an ideal choice for dump beds, trailers, and other applications where a constant force is not required.
 Feature
1.       Multiple stages enable longer strokes to be achieved using less space
2.       Angular swivels allow for a small amount of misalignment while still functioning fully
3.       Micro-honed inside and chrome plated outside to decrease corrosion and increase wear resistance and durability
4.       Handles continuous loads of 2500 PSI

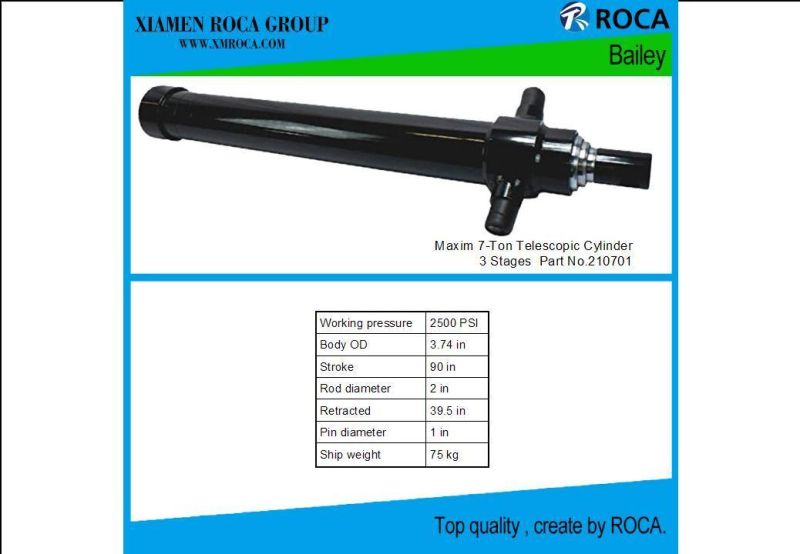

Bailey type telescopic hydraulic cylinder Maxim 7-ton telescopic cylinder 3 stages
Part No. 210701
SKU: 210701

Specification

Working pressure	2500PSI
Body OD	3.74 in
Stroke	90 in
Rod diameter	2 in
Retracted	39.5 in
Extended	129.5 in
Port size	1/2" NPT
Pin diameter	1 in
Weight	75 Ib
Stages	3
Plunger Dia	3", 2 3/8", 1 3/4"
