• Model NO.：SOV-STC Series
• Structure：Piston Type
• Material：-
• Name：1500 Bar Single Acting Hydraulic Cylinder
• Capacity：5-200 Ton
• Stroke：10-30 mm
• Coll.Height：30-80 mm
• Working Pressure：700,1500 Bar
• OEM：Yes
• Color：Yellow or Black
• Piston Diameter：21-165 mm
• Outside Diameter：60-220 mm
• Warranty：One Year
• Transport Package：Wooden Case
• Specification：Can customize
• Trademark：SOV
• Origin：China
• HS Code：841221
• Production Capacity：500 Pieces

Basic Info.

Model NO. SOV-STC Series Structure Piston Type Material - Name 1500 Bar Single Acting Hydraulic Cylinder Capacity 5-200 Ton Stroke 10-30 mm Coll.Height 30-80 mm Working Pressure 700/1500 Bar OEM Yes Color Yellow or Black Piston Diameter 21-165 mm Outside Diameter 60-220 mm Warranty One Year Transport Package Wooden Case Specification Can customize Trademark SOV Origin China HS Code 841221 Production Capacity 500 Pieces

Product Description

                                    1500 Bar Single Acting Hydraulic Cylinder

Product Featrues
1 Thin cylinder body height, suitable for narrow space use
2 Cylinder small size, light weight
3 Working pressure :150-200Mpa
4 Cylinder surface after special treatment, for a variety of harsh environments

Product Parameter

Model	Capacity (T)	Working Stroke (mm)	Collapsed Height (mm)	Outside Diameter (mm)	Piston rod  outside Diameter (mm)	Working Pressure(MPa)
SOV-STC-5T-10	5	10	30	60	21	150
SOV-STC-10T-10	10	10	30	70	30	150
SOV-STC-25T-10	25	10	30	90	47	150
SOV-STC-50T-10	50	10	30	115	68	150
SOV-STC-65T-10	65	10	30	120	75	150
SOV-STC-100T-10	100	10	30	144	95	150
SOV-STC-50T-10	50	10	30	144	95	70
SOV-STC-100T-10	100	10	32	205	135	70
SOV-STC-100T-20	100	20	55	205	135	70
SOV-STC-100T-12	100	12	45	185	130	70
SOV-STC-120T-10	120	10	30	160	100	150
SOV-STC-120T-20	120	20	55.5	220	150	70
SOV-STC-150T-10	150	10	31	176	115	150
SOV-STC-150T-30	150	30	80	215	165	70
SOV-STC-200T-10	200	10	32	205	135	150
SOV-STC-100T-10	100	10	32	198	135	70

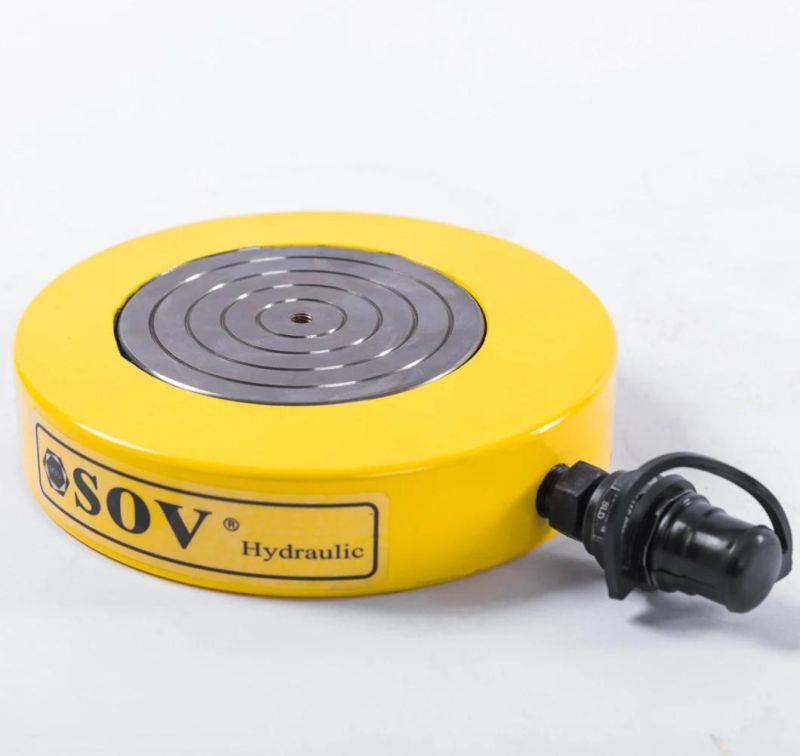

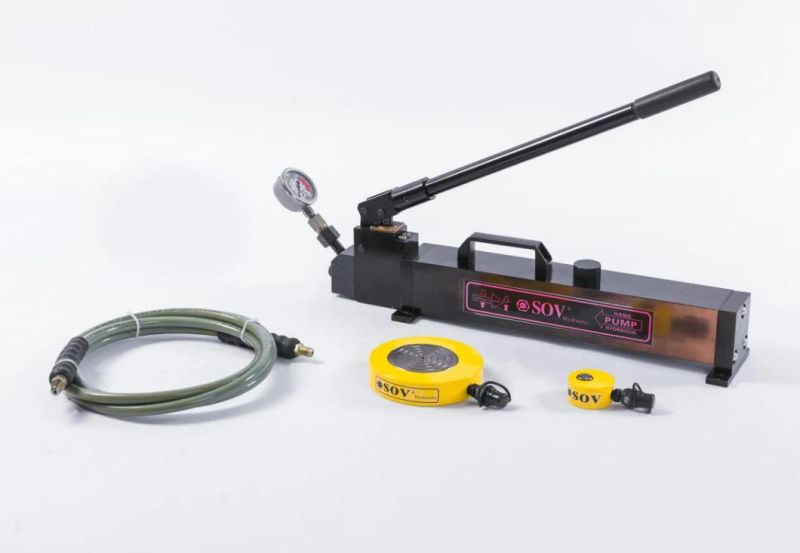

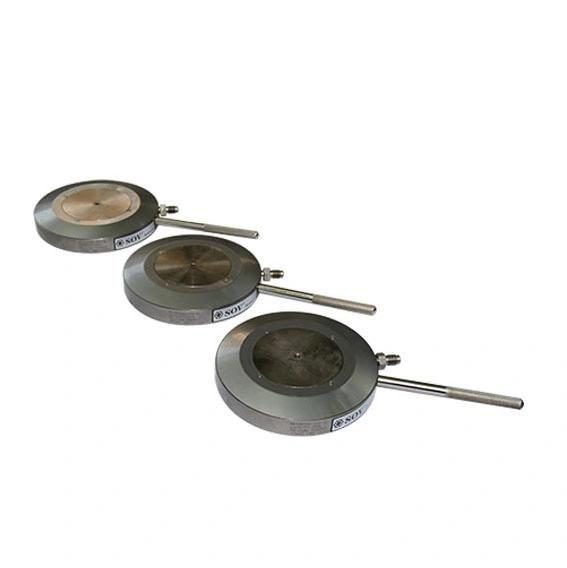

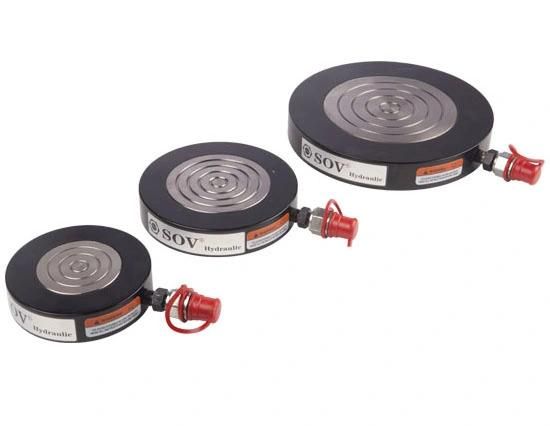

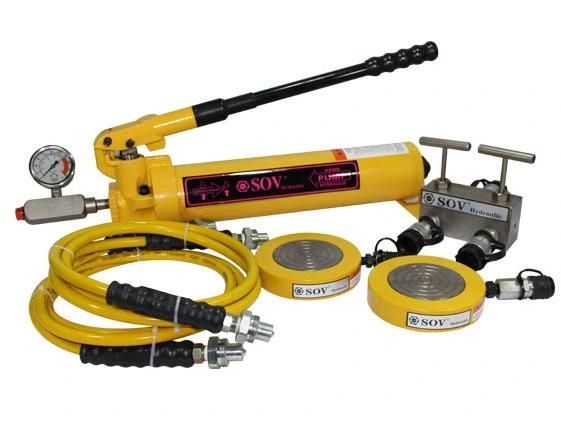

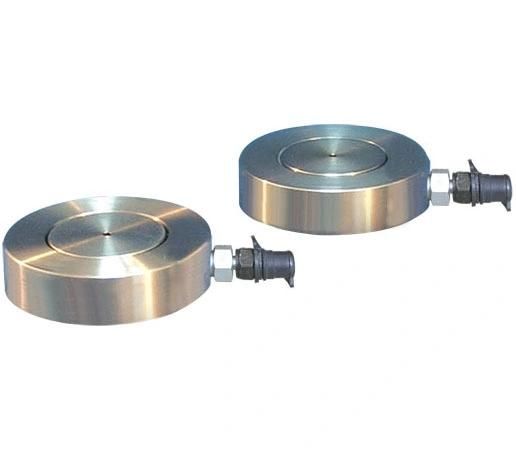

Product Photos

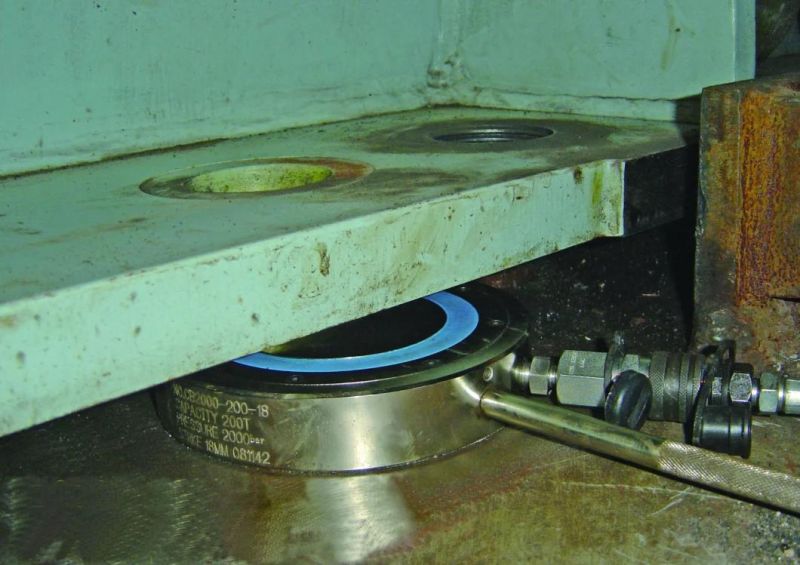

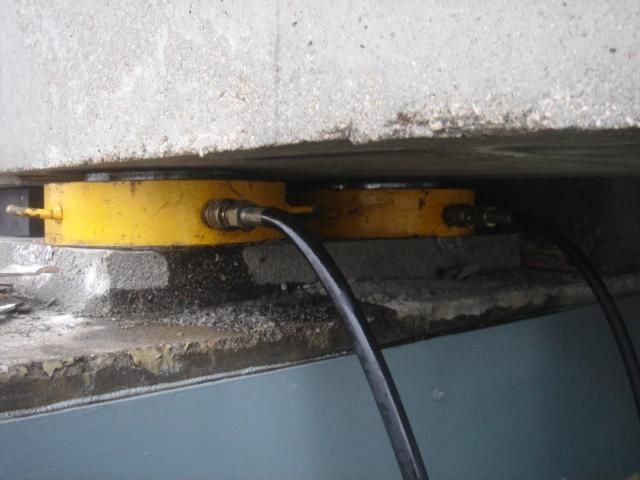

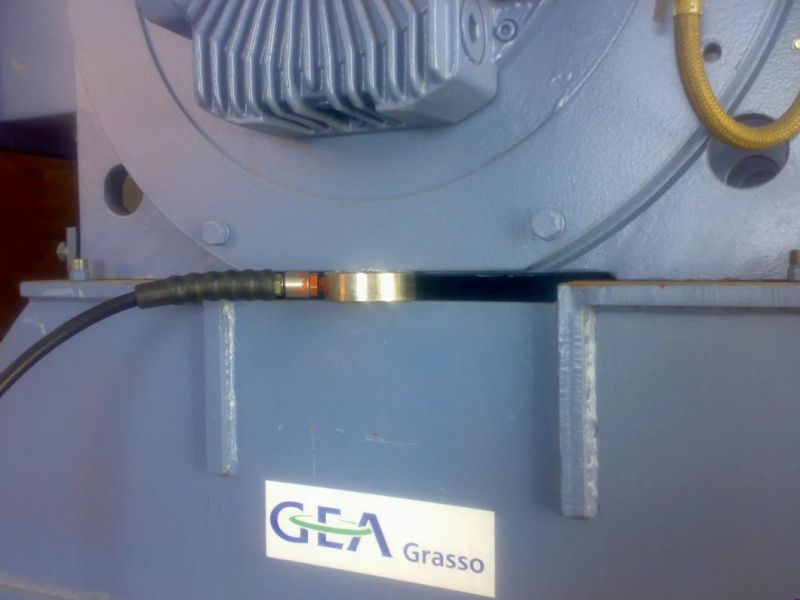

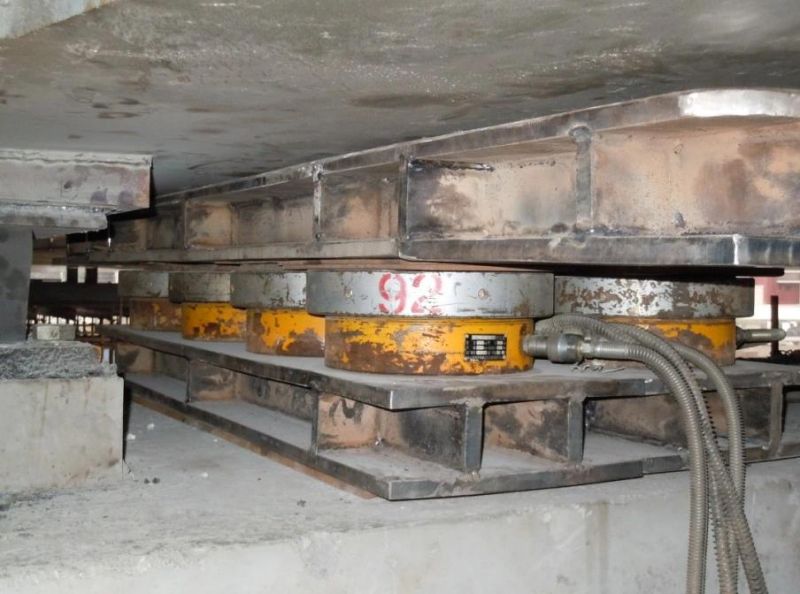

Application

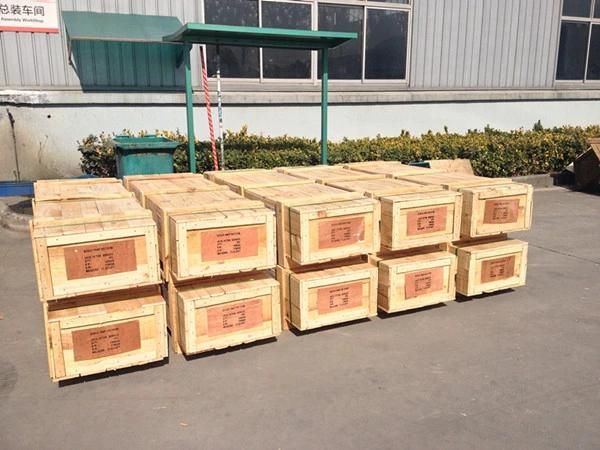

Package and Delivery
1. Outer packing: standard export wooden case
2. Inner packing: careful stretch film and cardboard
3. Lead time: 1~3workdays when products in stock, 7~15workdays when out of stock
4. Delivery time: Prompt delivery
Shipping Methods
1. Light Weight: by international air express, within 3-7days arriving
2. Heavy Weight: by ocean cargo, arriving time depends on your destination port


Our Services
One Year Warranty, repair and service for the whole life,  question report response in 24 hours, and reply in 48 hours.

Company Information
SOV is a professional manufacturing in hydraulic tools and products,we have been in the industry for more than 20 years.Since the establishment in 1995,we successfully transformed from OEM manufacturer to create our own brand SOV,and our factory has been approved by CE,ISO9001:2008 consecutively.Our products have been widely used in petrochemical,cement,shipbuilding,steel plant,and heavy constructions areas,etc.

Our main product category includes:
Hydraulic cylinders and jacks
Hydraulic bolting tools such as hydraulic torque wrench
Hydraulic bolt tensioners,nut splitters.

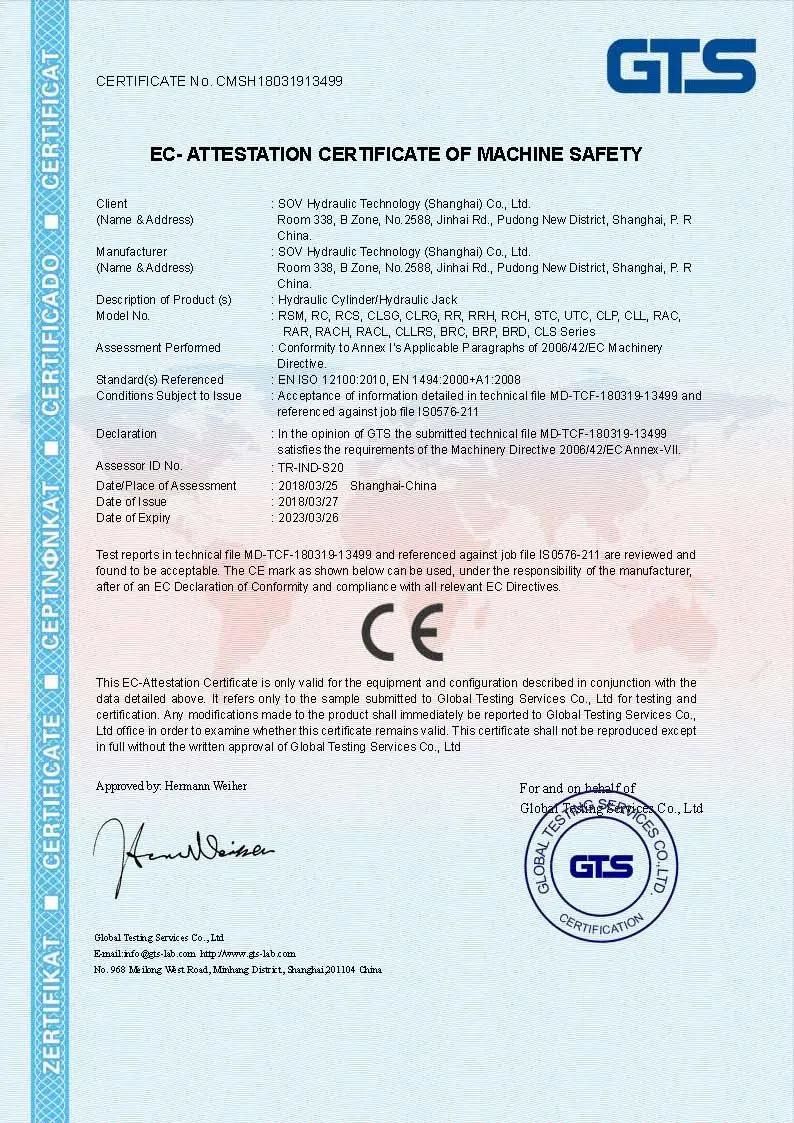

Certificate



Clients
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
