• Model NO.：Z2FS6
• Trademark：Power or OEM
• Origin：China
• HS Code：8481201000
• Production Capacity：1000PCS,M

Basic Info.

Model NO. Z2FS6 Trademark Power or OEM Origin China HS Code 8481201000 Production Capacity 1000PCS/M

Product Description

1. Product Description

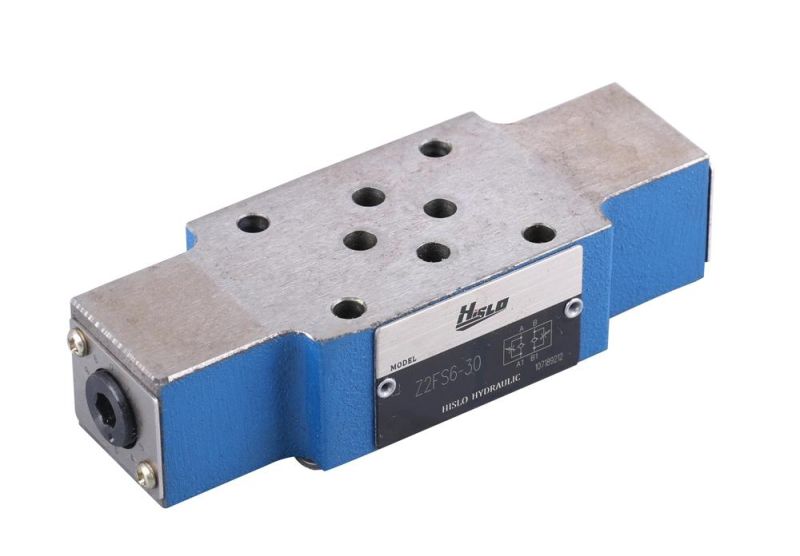

Double throttle/check valve type Z2FS6…L4XValve type Z2FS 6 is a double throttle/check valve with sandwich plate structure.

It's used to control the flow by changing the throttling. In the opposite direction, fluid flow freely via check valve.
For meter-in control fluid passes from port A1 to port A2 via the throttling point (1), which is made up of the valve seat (2) and the throttling spool (3). The throttling spool (3) is axially adjustable via the adjustment screw (4).

Fluid flows from A2 to A 1, valve seat (2) is opened against spring (5) and valve acts as check valve. Depending on the installation position, the throttling effect may be arranged as a meter-in or a meter-out control.

Standard version used for controlling main flow (Z2FS6… /2Q)
In order to change the velocity of an actuator (limiting of main flow), the double throttle/check valve is Installed between the directional valve and the sub-plate.

Fine control version used for controlling pilot flow (Z2FS6… /1Q)
In order to limit the pilot flow, the double throttle/check valve is installed between the main valve and the pilot valve.

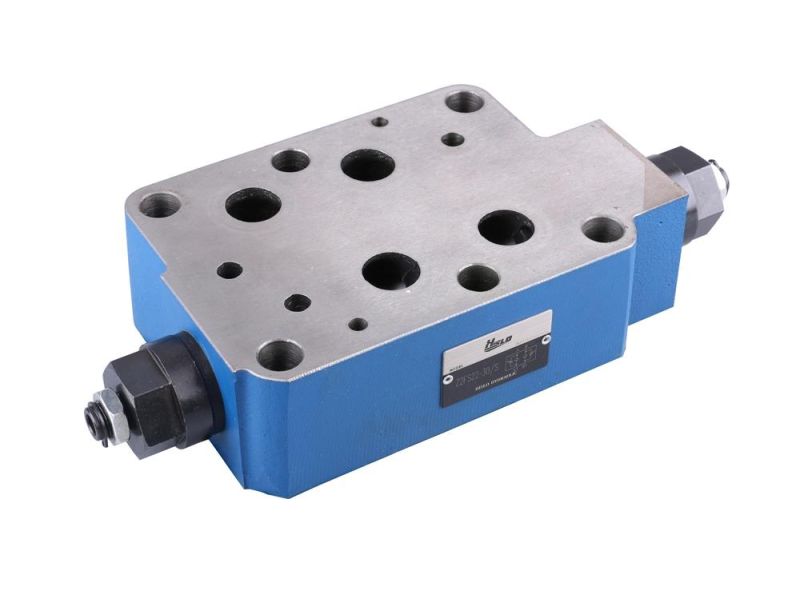

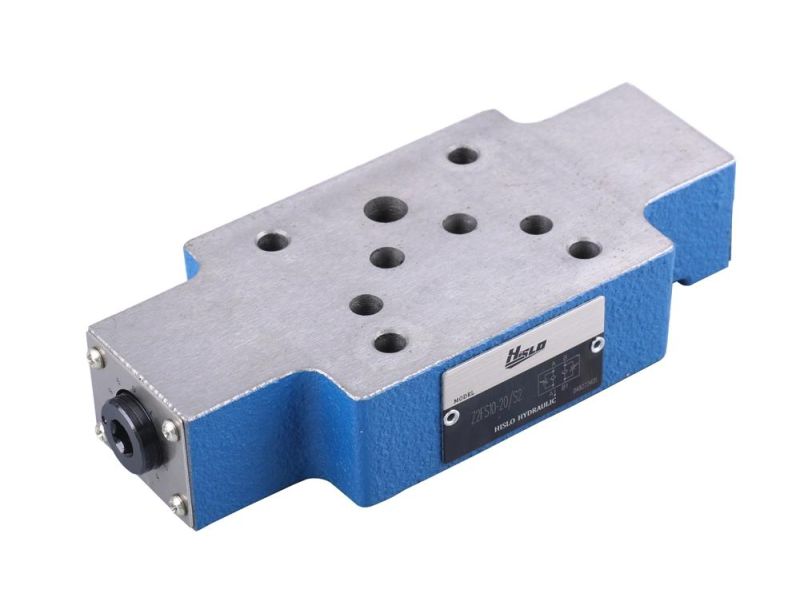

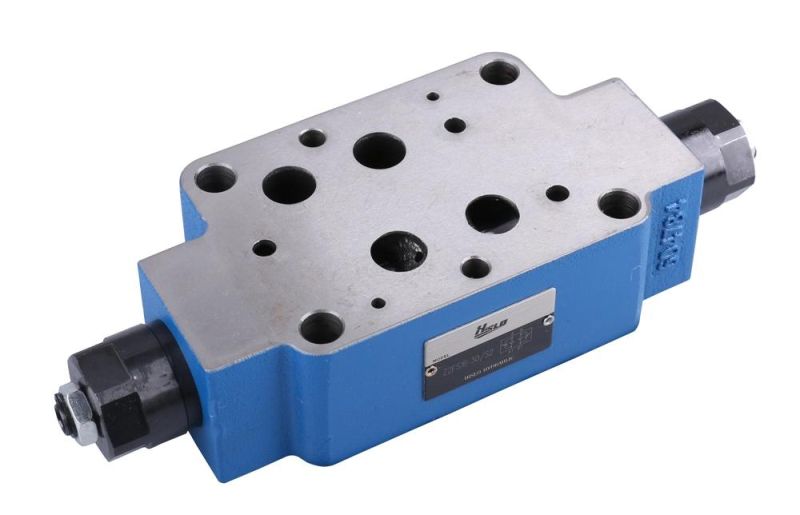

2.Product Photos3. Company Profile
      NNINGBO POWER HYDRAULIC MOTOR CO.,LTD is a wel-trusted manufacturer in hydraulic industy.
      The company have achieved IS09001:2015 quality system, relying on strong technology development and production capacity,our annual output 600 thousand pieces. We produce all kinds of hydraulic valve, mainly include Rexroth and Yuken series of hydraulic valve products. Our products are widely used in mining, engineering, construction, plastics, chemicals, machine tools and so on. Our goal is to continue to deliver cost-effective products and more improved electro-hydraulic technology solutions.
     We also aim to help our customer to attain competitive advantage. It is our business to create more solutions, not just to satisfy the needs of our customers but also to help them progress in the industry.


4. Certificates

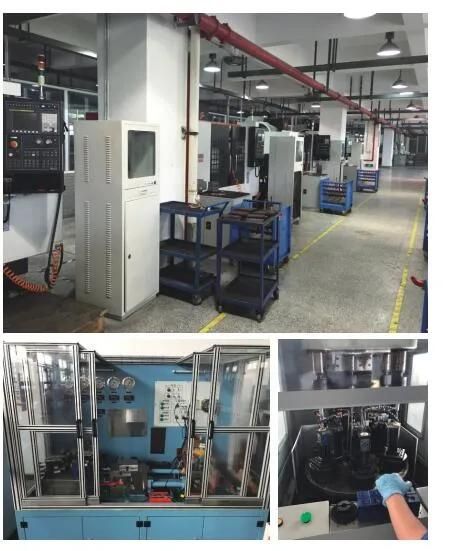

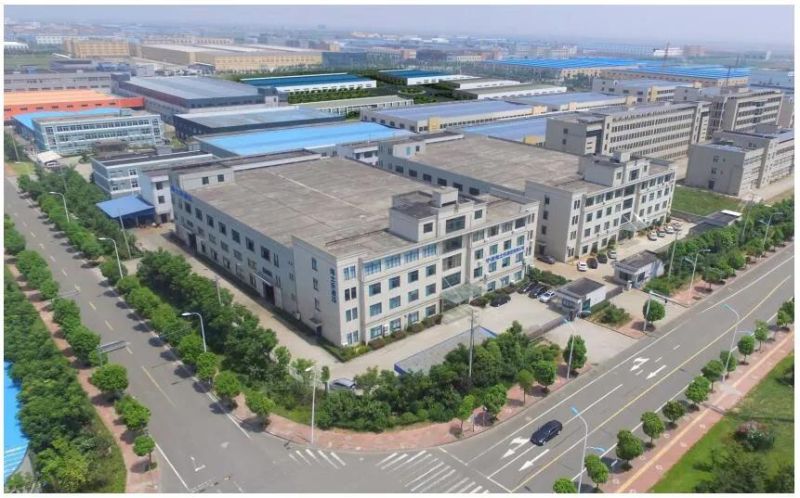

5. Factory
6. FAQ
Q1: Are you trading company or manufacturer ?

A: We are factory.

Q2: How long is your delivery time?

A: Generally it is 3-5 days if the goods are in stock, or it is 20-30 days if the goods are not in stock, it is according to quantity.

Q3: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q4: What is your terms of payment ?

A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us.
