China Small High Speed (1950rpm) Orbit Hydraulic Orbital Motor Omm

Dongguan Blince Machinery & Electronics Co., Ltd.
  • Speed：High Speed
  • Type：Hydraulic Motor
  • Model Code：Omm8,12.5,20,32,40,50 Hydraulic Motor
  • Max Speed：Contin400~1950rpm
  • Max Torque：Contin 11~46 N.M
  • Output Shaft：Parallel Key, Splined Key

Base Info

  • Model NO.：OMM
  • Flange：Circle-Flange, Rhomb-Flange
  • Motor of Material：Cast Iron
  • Output Power：Contin1.8~2.4kw
  • Pressure：Contin 70~100bar
  • Fuel：Hydraulic Oil
  • Item：Hydraulic Power Unit
  • Hydraulic Valve：Proportional Control Valve
  • Auxiliary Components：Pipe and Pipe Fittings
  • Hydraulic Motor：Orbital Hydraulic Motor
  • Hydraulic Actuator：Orbital Hydraulic Motor
  • Transport Package：Plastic Tube +Carton+Wooden Pallets
  • Specification：CE, CCC, ISO
  • Trademark：Blince
  • Origin：Dongguan, China
  • HS Code：8412291000
  • Production Capacity：3000 Per Month

Description

Basic Info.

Model NO. OMM Flange Circle-Flange, Rhomb-Flange Motor of Material Cast Iron Output Power Contin1.8~2.4kw Pressure Contin 70~100bar Fuel Hydraulic Oil Item Hydraulic Power Unit Hydraulic Valve Proportional Control Valve Auxiliary Components Pipe and Pipe Fittings Hydraulic Motor Orbital Hydraulic Motor Hydraulic Actuator Orbital Hydraulic Motor Transport Package Plastic Tube +Carton+Wooden Pallets Specification CE, CCC, ISO Trademark Blince Origin Dongguan, China HS Code 8412291000 Production Capacity 3000 Per Month

Product Description

Product Description

Blince micro Hydraulic motor omm/bmm
OMM all series hydraulic motor:
1,Displacement:
OMM8,OMM12.5,OMM20,OMM32,OMM40,OMM50

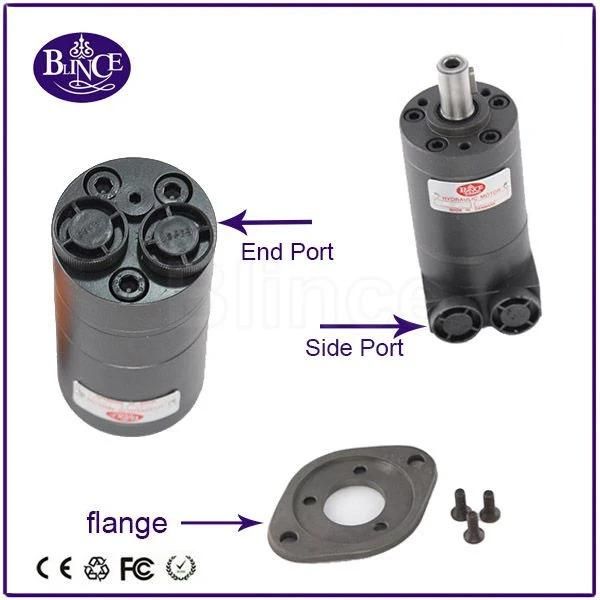

2,Flange:
1)3-M6 Circle-flange, pilot Ø 31.5× 5;
2) 3-1/4-28UNF Circle flange, pilot Ø 31.5× 5;
3) 2-Ø 9 Rhomb-flange, pilot Ø 63× 2;

3,Shaft:
1)shaft Ø 16, parallel key 5× 5× 16;
2) Shaft Ø 15.875, parallel key 4.8× 4.8× 19.05;
3)Shaft Ø 16.5, involute B17× 14, DIN5482;

4,Ports and drain port:
1)G3/8, G1/8;
2)9/16-18UNF, 3/8-24UNF;
3)End port G3/8, G1/8;
4) End port 9/16-18UNF, 3/8-24UNF;

China Small High Speed (1950rpm) Orbit Hydraulic Orbital Motor Omm
China Small High Speed (1950rpm) Orbit Hydraulic Orbital Motor Omm
China Small High Speed (1950rpm) Orbit Hydraulic Orbital Motor Omm


China Small High Speed (1950rpm) Orbit Hydraulic Orbital Motor Omm
China Small High Speed (1950rpm) Orbit Hydraulic Orbital Motor Omm
China Small High Speed (1950rpm) Orbit Hydraulic Orbital Motor Omm
China Small High Speed (1950rpm) Orbit Hydraulic Orbital Motor Omm
Our warranty
1,sample service: samples can provide preferential.
2,customized services:a variety of motors can be customized according to customer demad.
3,Aftermarket service: according to consumer requirements, technical guidance on the useand other aspects. In case of quality problems under normal use, free replacement within one year of free maintenance for life.

Payment terms
1,Small amount accept Paypal
2,Western Union
3,Large orders We usually accept T/T(with 30% deposit,the balance before shipment)

Packing details of Blince OMM Hydraulic motors
  1,sale packing contians carton or wood case
  2,interior packing is high quality film
  3,as your requests

China Small High Speed (1950rpm) Orbit Hydraulic Orbital Motor Omm
China Small High Speed (1950rpm) Orbit Hydraulic Orbital Motor Omm
China Small High Speed (1950rpm) Orbit Hydraulic Orbital Motor Omm

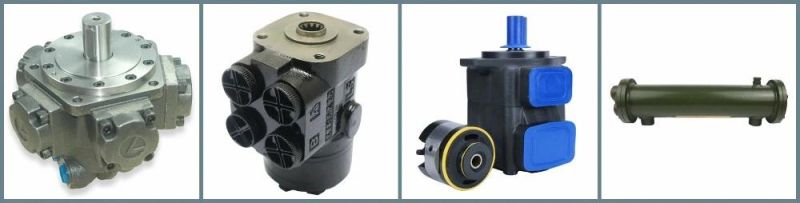

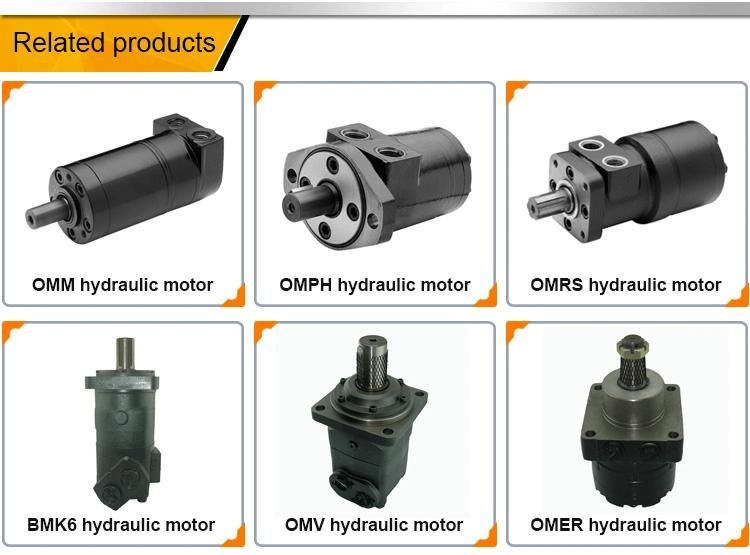

We also provide hydraulic motors such as OMM,OMP,OMR,OMS,OMT,OMV,OZ,OK,OM1,OM2,OM3,OM4,OMH,OMJ.
Vane pumps such as PV2R series,V series and VQ series,SQP series.
All these products are standard,best quality. If you are interested in any one of this products,don't hesitate to contact me.
