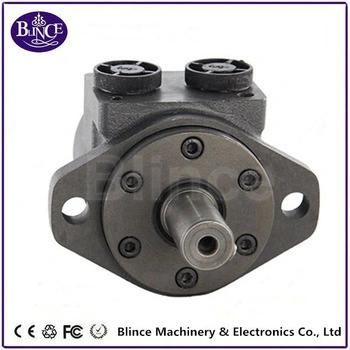

• Model NO.：OMS125cc
• Material：Cast Iron
• Flange：Square,Rhombic,Elliptical
• Hydraulic Valve：Proportional Control Valve
• Hydraulic Fluid：Mineral Oil
• Pressure Control Valve：Overflow Valve
• Hydraulic Control Unit：Selector Valve
• Hydraulic Motor：Piston Hydraulic Motor
• Transport Package：Plastic Tube +Carton+Wooden Pallets
• Specification：CE, CCC, ISO
• Trademark：Blince
• Origin：Dongguan, China
• HS Code：8412291000
• Production Capacity：10000 Per Month

                          OMSY / OMSYS series Orbital Hydraulic MotorDisplacement80cc,100cc,125cc,160cc,200cc,250cc,315cc,400cc,475ccFlange: E2: 2-Ø13.5 Rhomb-flange Ø106.4,pilot Ø82.5×6.3
 E4: 4-Ø13.5 Rhomb-flange Ø106.4,pilot Ø82.5×6.3
 F6: 6-Ø13.5 Rhomb-flange Ø106.4,pilot Ø82.5×2.6
 W: 4-Ø13.5 Wheel-flange Ø160 ,pilot Ø125×8
 E2B: 2-Ø14.3 Rhomb-flange Ø146.05,pilot Ø101.6×9.4
 SP: 4-Ø11.5 Square-flange Ø106.4,pilot Ø82.5×6.3
 D: 4-Ø11 Circle-flange Ø125 ,pilot Ø100×6
 E: 4-Ø13.5 Square-flange Ø127 ,pilot Ø101.6×6.3Output Shaft: A: Shaft Ø25 , parallel key 8×7×32
 B: Shaft Ø32 , parallel key 10×8×45
 D:Shaft Ø25.4 , parallel key6.35×6.35×25.4
 G: Shaft Ø31.75 ,parallel key 7.96×7.96×31.75
 F: Shaft Ø31.75 ,splined tooth 14-DP12/24
 FD: Long Shaft Ø31.75 ,splined tooth 14-DP12/24
 SL: shaft Ø34.85,Splined key 6-34.85×28.14×8.64
 T1: Cone-shaft Ø35 ,parallel key B6×6×20
 T3: Cone-shaftØ31.75 ,parallel key 7.96×7.96×31.75
 S1: Shaft Ø25.4 ,splined tooth SAE 6B
 I: Sub-shaft Ø22,splined tooth 13-DP16/32Port and drain port: D: G1/2 Manifold Mount 2-M10 , G1/4
 M: M22×1.5 Manifold Mount 2-M10 , M14×1.5
 S: 7/8-14UNF O-ring manifold 2-3/8-16 , 7/16-20UNF
 P: 1/2-14NPTF manifold 2-3/8-16UNC , 7/16-20UNF

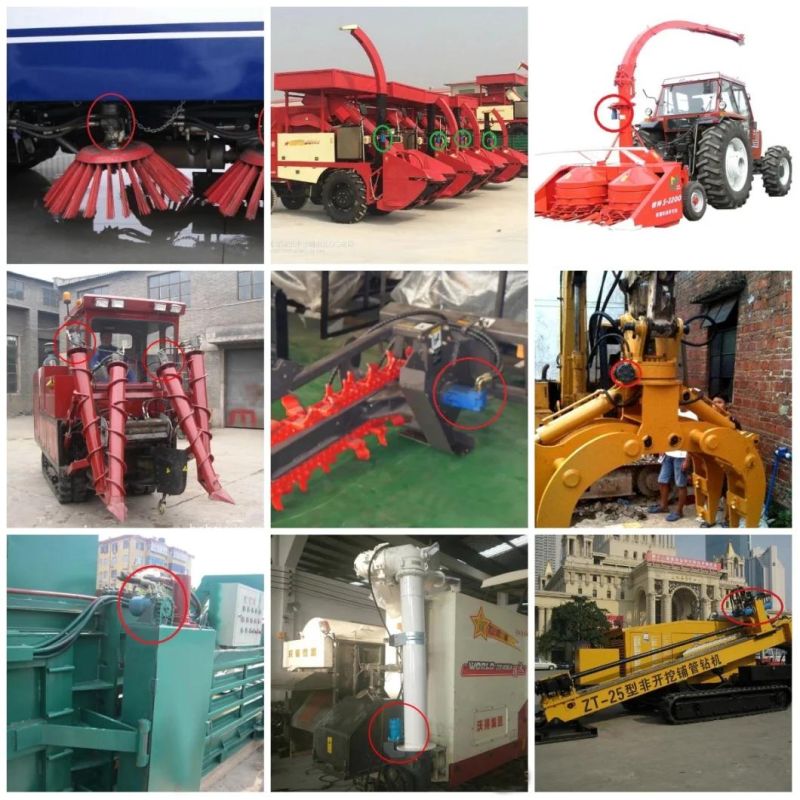

Application:Hydraulic motors are widely applied in agriculture machinery, fishing machinery, plastic industry, mining, and
construction machinery, especially fitted to lower load applications, such as plastic injection mold machine, cleaner,grass cutter, etc.

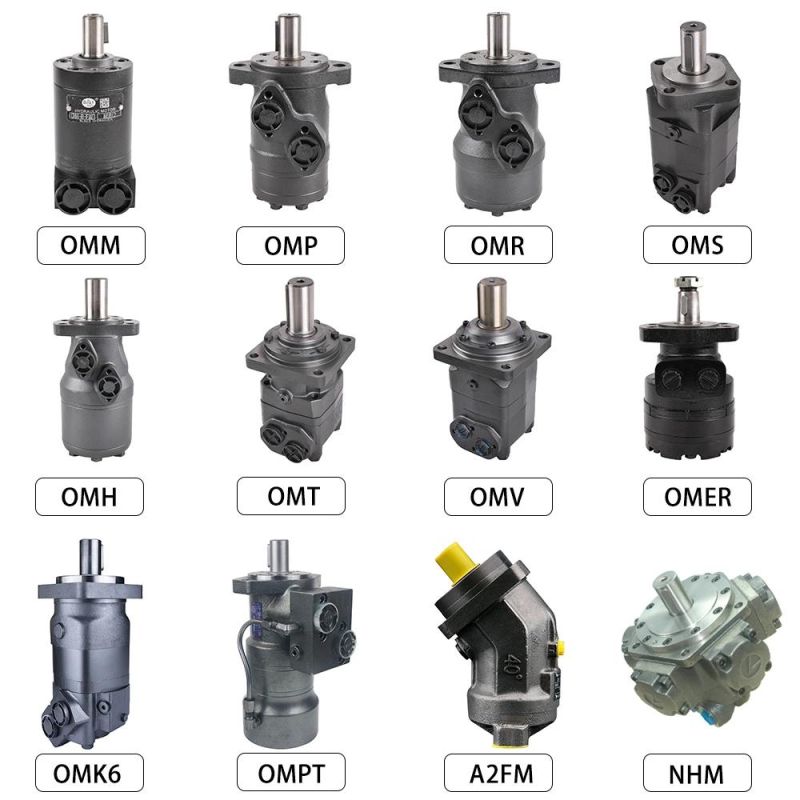

Related Products:
