• Model NO.：OMSY80,125,160,200,250,315,400,475
• Output Shaft：25mm,32mm,25.4mm Parallel Key, Splined Key
• Flange：Circle-Flange, Rhomb-Flange
• Motor of Material：Cast Iron
• Application：Large Machinery and Equipment
• Assignment Forms：Axial Flow
• Fuel：Hydraulic Oil
• OEM：Accept
• Transport Package：Sale Packing Contians Carton or Wood Case
• Specification：CE
• Trademark：Blince
• Origin：Guangdong, China (Mainland)
• HS Code：8412291000
• Production Capacity：100000 PCS,Year

Basic Info.

Model NO. OMSY80/125/160/200/250/315/400/475 Output Shaft 25mm/32mm/25.4mm Parallel Key, Splined Key Flange Circle-Flange, Rhomb-Flange Motor of Material Cast Iron Application Large Machinery and Equipment Assignment Forms Axial Flow Fuel Hydraulic Oil OEM Accept Transport Package Sale Packing Contians Carton or Wood Case Specification CE Trademark Blince Origin Guangdong, China (Mainland) HS Code 8412291000 Production Capacity 100000 PCS/Year

Product Description

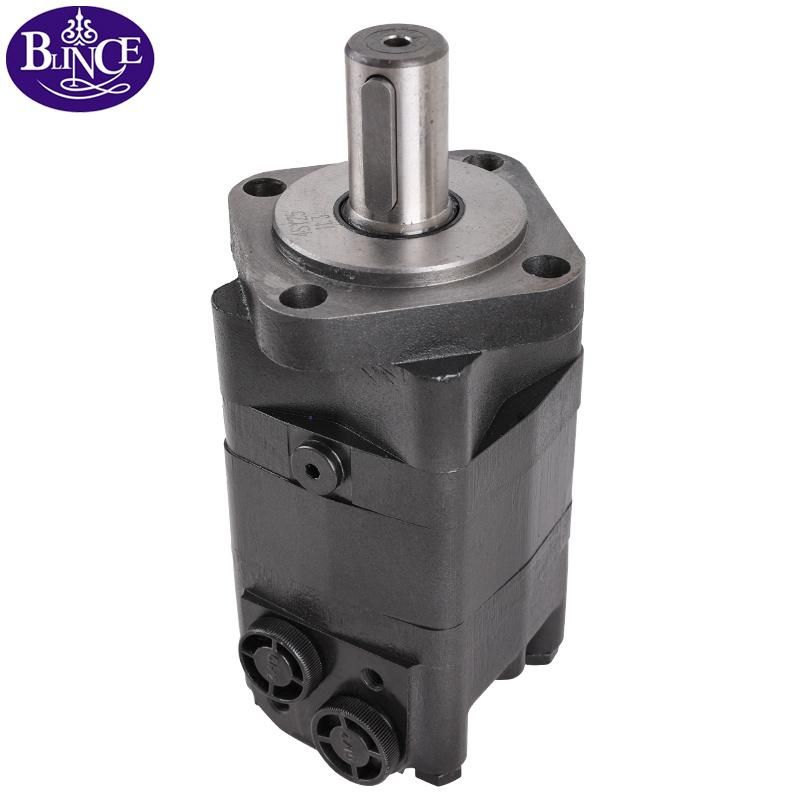

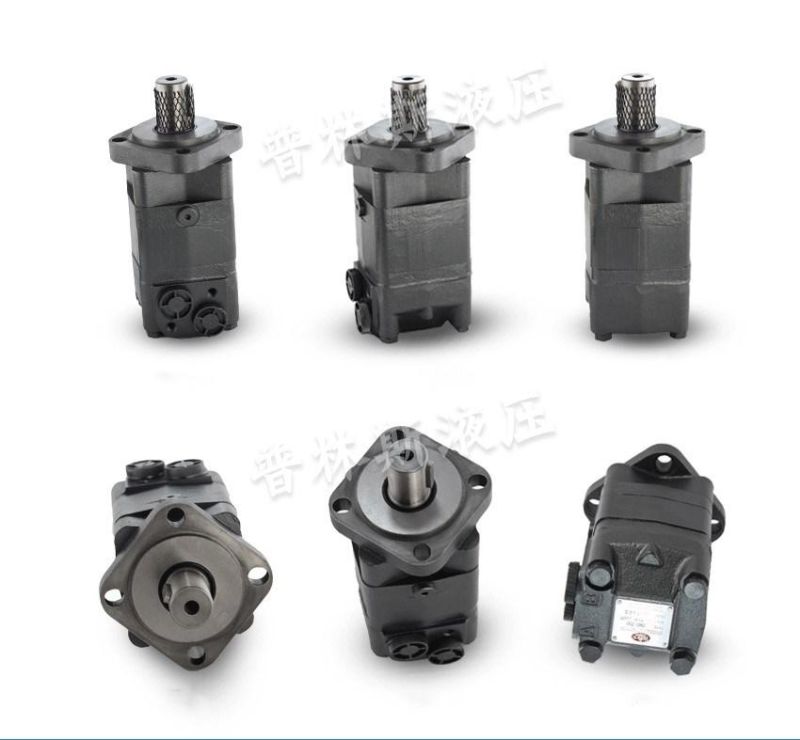

Orbital hydraulic motor OMS/OMSY series replace Eaton Char Lynn 2000 series
OMSY new series motor adopt the advanced Gerloler gear set designed with disc distribution flow and high pressure.The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.




Characteristic features:
 * The motor has the same dimensions and mounting data as the hydraulic motor type OMS.
 * The motor is described with 15-20% higher technical data(Max.torque and Max.pressure drop), thereby higher power. The new motor is suitable for vehicles with greater loads and pressure drop.



Flange:
  E2: 2-Ø13.5 Rhomb-flange Ø106.4,pilot Ø82.5×6.3
  E4: 4-Ø13.5 Rhomb-flange Ø106.4,pilot Ø82.5×6.3
  F6: 6-Ø13.5 Rhomb-flange Ø106.4,pilot Ø82.5×2.6
  W: 4-Ø13.5 Wheel-flange Ø160 ,pilot Ø125×8
  E2B: 2-Ø14.3 Rhomb-flange Ø146.05,pilot Ø101.6×9.4
  SP: 4-Ø11.5 Square-flange Ø106.4,pilot Ø82.5×6.3
  D: 4-Ø11 Circle-flange Ø125 ,pilot Ø100×6
  E: 4-Ø13.5 Square-flange Ø127 ,pilot Ø101.6×6.3

Shaft:
 A: Shaft Ø25 , parallel key 8×7×32
 B: Shaft Ø32 , parallel key 10×8×45
 D:Shaft Ø25.4 , parallel key6.35×6.35×25.4
 G: Shaft Ø31.75 ,parallel key 7.96×7.96×31.75
 F: Shaft Ø31.75 ,splined tooth 14-DP12/24
 FD: Long Shaft Ø31.75 ,splined tooth 14-DP12/24
 SL: shaft Ø34.85,Splined key 6-34.85×28.14×8.64
 T1: Cone-shaft Ø35 ,parallel key B6×6×20
 T3: Cone-shaftØ31.75 ,parallel key 7.96×7.96×31.75
 S1: Shaft Ø25.4 ,splined tooth SAE 6B
 I: Sub-shaft Ø22,splined tooth 13-DP16/32

Port:
 D: G1/2 Manifold Mount 2-M10 , G1/4
 M: M22×1.5 Manifold Mount 2-M10 , M14×1.5
 S: 7/8-14UNF O-ring manifold 2-3/8-16 , 7/16-20UNF
 P: 1/2-14NPTF manifold 2-3/8-16UNC , 7/16-20UNF

Application Scope: any need for high torque, low speed applications.For example:
- Sprinkler
- Mini excvavtor
- Driven scraper conveyor
- Screw
- Baler
- hydraulic Winch
- Fishing boat
-Municipal machinery, agriculture, forestry and construction equipment etc...


Packing details:



Payment mode:
1,Small amount accept Paypal
2,Western Union
3,Large orders We usually accept T/T(with 30% deposit,the balance before shipment)


My friends,
we also provide hydraulic motors such as OMM,OMP,OMPH,OMR,OMRS,OMS,OMT,OMV,OZ,OK,OM1,OM2,OM3,OM4,OMH,OMJ.
Vane pumps such as PV2R series,V series and VQ series,SQP series.
All these products are standard,best quality. If you are interested in any one of this products,don't hesitate to contact me.
