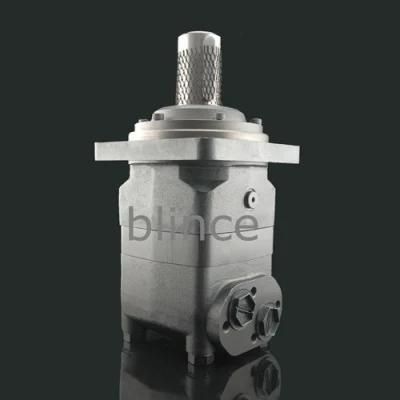

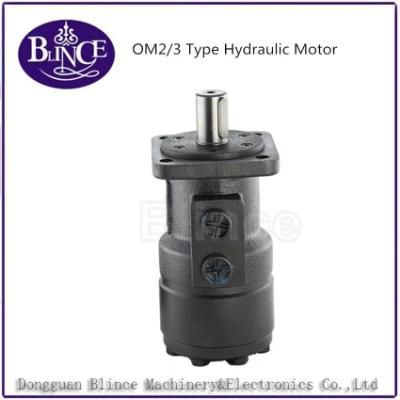

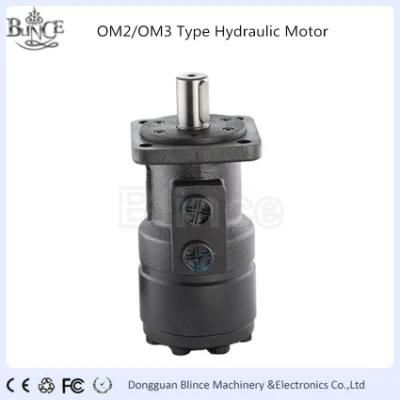

Om2/Om3 Hydraulic Pump Motor for Concrete Mixer
Dongguan Blince Machinery & Electronics Co., Ltd.- Certification：CE, ISO9001
- Excitation Mode：Excited
- Power Rating：2500W
- Casing Protection：Protection Type
- Number of Poles：4
- Speed：High Speed
Base Info
- Model NO.：OM2-125,160,200,250,315,400 OM3-500,630
- Type：Hydraulic Motor
- Structural：Hydraulic Orbit Motor
- Usage：Hydraulic Oil
- Material：Cast Iron
- Shaft Type：Parallel Key ,Splined Key Shaft
- Flange Type：Square-Flange
- Diameter of Shaft：25mm,30mm,42mm
- Standard & Non-Standard：Standard
- Hydraulic Motor：Piston Hydraulic Motor
- Hydraulic Actuator：Combination Hydraulic Cylinders
- Hydraulic Power Units：Vane Pump
- Transport Package：Plastic Tube +Carton+Wooden Pallets
- Specification：ISO9001
- Trademark：Blince
- Origin：Guangdong, China (Mainland)
- HS Code：8412291000
- Production Capacity：1000 Sets Per Month Meet Your Requirment
Description
TypeOM2
125
OM2
160 OM2
200 OM2
250 OM2
315 OM2
400 OM3
500 OM3
630 Displacement (cm3/rev.) 124.1 164.7 200 248.3 319.2 400 518 666 Max.speed (rpm) cont. 400 310 250 200 150 125 160 125 int. 500 400 310 250 200 150 200 160 Max.
torque
(N?m) cont. 215 285 347 385 495 477 772 993 int. 268 355 459 470 568 620 1054 1355 Max.
Output
(kW) cont. 8.8 9.0 9.0 8.0 8.0 6.0 13 13 int. 11 11 11 10 9.0 9.0 17 17 Max. pressure
drop(MPa cont. 14 14 14 12.5 12.5 10 12.5 12.5 int. 17 17 17 14 14 12.5 16 16 Max. flow (L/min) cont. 20 20 20 20 20 20 20 20 int. 25 25 25 25 25 25 25 25 Net Weight (kg) 7.2 7.8 8.1 8.4 9.0 9.5 17.5 18.5
The Blince OM2/OM3 series motors are used in the following application areas:
* Construction equipment
* Agricultural equipment
* Material handling & Lifting equipment
* Forestry equipment
* Lawn and turf equipment
* Special purpose
* Machine tools and stationary equipment
* Marine equipment
* And more
WHY US:
1. We are leading profesional manufacturer of Hydraulic motor in Guangdong China. Our products have been exported to more than 50 countries including Africa, Middle East, South America and Asia.
2. We are not only produce normal models, but also produce new models according to your design.
3. Professional service team and competitive price will give you a perfect purchasing experience.
Warranty:
1. Guarantee for one year or 1000 hours (according to whichever ends first) from the purchasing date on.
2. During the guarantee period, our company will provide the easy-damaged spare parts for problems
Caused by our quality of production or raw material. Pls provide the defective appearance and related invoice number.
3. Sorry for you should responsible for the freight come-and-go, and the custom tax.
4. After expiration, our company can provides cost spare-parts maintenance for engines.
5. To save the cost, you can choose send the motor back without packing.
6. My dear friend, your emails can be get within one business day. If you do not receive our reply, please kindly re-sent your email or give us a call any time.
Blince profssion supply all series hydraulic motor like OMM/OMP/OZ/OMR/OK/OMH/OMP1/OYM/OMRL/OM1/OM2/OM3/OM4/OMSY/OMT/OMV /OMER hydraulic orbit motor,hydraulic pump like ( PV2R series/V/VQ series/SQP series ).
If you have any questions or other hydraulics informations what I can do for you. Please contact me directly or visit our website. The best service you will get soon! : )
Amy chen
Phone): +86-13560881920
Tel: +86-769-85156586
Fax: +86-769-851580786
THANKS FOR YOUR READING, AND HOPE YOU HAVE A NICE DAY. ( n. N ) **
