Sauer Danfoss Omm 12.5 Hydraulic Motor/Hydraulic Motor Omm 20 /Eaton Char-Lynn J Hydraulic Motor
Dongguan Blince Machinery & Electronics Co., Ltd.- Number of Poles：12
- Type：Hydraulic Power Units
- Displacement(Cc/Rev)：40
- Continuous Max Speed(Rpm)：500
- Continuous Max Torque(N.M)：45
- Max Pressure(MPa)：10
Base Info
- Model NO.：OMM Series Hydraulic Motor
- Hole Middle Distance：80mm
- Cylinde Parallel Shaft Size：16mm
- Flange：Standard 2 Hole Diamond Flange
- Ports and Drain Port：G3,8, G1,8
- Material：Rust-Proof Cast Iron
- Warranty：One Year
- Hydraulic Power Units：Gear Pump
- Hydraulic Valve：Hydraulic Motor
- Auxiliary Components：Hydraulic Motor
- Hydraulic Motor：Omm40 Hydraulic Motor
- Transport Package：Sale Packing Contians Carton or Wood Case
- Specification：CE
- Trademark：Blince
- Origin：Guangdong Province, China (Mainland)
- HS Code：8412291000
- Production Capacity：1000 Units Per,Month
Description
TypeOMM
8 OMM
12.5 OMM
20 OMM
32 OMM
40 OMM
50 Geometric displacement 8.2 12.9 19.9 31.6 39.8 50.3 Max.speed (rpm) cont. 1950 1550 1000 630 500 400 int. 2450 1940 1250 800 630 500 Max.torque(N.m) cont. 11 16 25 40 45 46 int. 15 23 35 57 70 88 Max.output(KW) cont. 1.8 2.4 2.4 2.4 2.2 1.8 Int. 2.6 3.2 3.2 3.2 3.2 3.2 Max.pressure
Drop (Mpa)
cont. 10 10 10 10 9 7 int. 14 14 14 14 14 14 Max.flow(L/min) cont. 16 20 20 20 20 20 int. 20 25 25 25 25 25 Weight(kg) 1.9 2 2.1 2.2 2.3 2.4
Blince profssion supply all series hydraulic motor like:

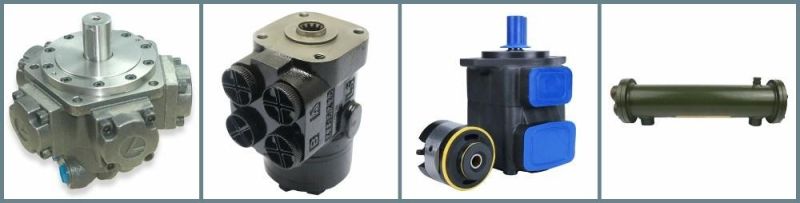

OMM/OMP/OMPH/OMR/OMRS/OZ/OK/OMH/OMSY/OMT/OMV hydraulic orbit motor, hydraulic pump like ( PV2R series / V V series / SQP series ) vane pumps. If you are interested in any our blince hydraulic motor pls contact me. Thanks! !
