• Model NO.：OMTS315
• Material：Cast Iron
• Flow Distribution：Plane Distribution Type
• Shaft Type：16 Teeth Spline Shaft
• Flange Type：Square-Flange,Wheel-Flange
• Connection：3,4" Bsp, Leakage 1,4"
• Flange：4 Bolt Mount
• Application：Heavy to Medium Duty Tasks
• Standard & Non-Standard：Standard
• Transport Package：Plastic Tube +Carton+Wooden Pallets
• Specification：ISO9001
• Trademark：Blince
• Origin：Guangdong, China (Mainland)
• HS Code：8412291000
• Production Capacity：60000PCS Per Month

TypeOMT160
OMTs160OMT200
OMTS200OMT230
OMTS230OMT250
OMTS250OMT315
OMTS315OMT400
OMTS400OMT500
OMTS500OMT630
OMTS630OMT800
OMTS800displacement
(cm3/rev.)
161.1
201.4
232.5
251.8
326.3
410.9
523.6
629.1
801.8Max.speed
 (rpm)cont.625625536500380305240196154int.780750643600460365285233185
Max. torque
(Nm)cont.4705906707309501080122013181464int.56071082188011401260137014981520peak66983895810361346.31450.31643.81618.81665Max.output (kW)cont.27.734.934.734.534.931.228.825.322.2int.3240404040353527.526.8Max. pressure
drop
(MPa)cont.202020202018161412.5int.242424242421181613peak282828282824211916Max.flow (L/min)cont.100125125125125125125125125int.125150150150150150150150150Max. inlet
pressure (MPa)cont.212121212121212121int.252525252525252525peak303030303030303030Net Weight  (kg)19.52020.420.52122232425
BLINCE OMT series Orbit Hydraulic Motor
 Displacement:
 160cc,200cc,230cc,250cc,315cc,400cc,500cc,630cc,800ccFlange:flange4: 4-Ø14 Square-flangeØ160,pilotØ125×9
flangeK6: 4-Ø14.5Square-flangeØ162,pilotØ127×9
flangeW: 4-Ø18 Wheel-flangeØ200,pilotØ160×7
flangeD: 4-Ø14 Circle-flange Ø160,pilot Ø125×8
flangeE: 4-Ø14.5 Square-flange Ø162,pilot Ø127×10Output Shaft:shaft M: Shaft Ø40 , parallel key 12×8×70shaft G: Shaft Ø38.1 ,parallel key 9.52×9.52×57.15shaft F: Shaft Ø38.1 ,splined tooth 17-DP12/24shaft FD: Shaft Ø38.1 ,splined tooth 17-DP12/24shaft T: Cone-shaft 1:10 Ø45 ,parallel key B12×8×28
shaft T1: Cone-shaft 1:8 Ø45 ,parallel key 11.13×11.13×31.75shaft SL: shaft Ø34.85,Splined key,Splined key 6-34.85×28.14×8.64shaft G1: shaftØ31.75 ,parallel key 7.96×7.96×40shaft F1: Shaft Ø31.75,splined tooth 14-DP12/24
** Bearingless 16-12/24 short shaftPort and Drain port:D: G3/4 Manifold Mount,4-M10 , G1/4 M: M27×2 Manifold Mount,4-M10, M14×1.5S: 1-1/16-12UN O-ring, 9/16-18UNFS1: 1-1/16-12UN O-ring, 7/16-20UNFG: G3/4,G1/4M3: M27×2,M14×1.5
Application areas:
1) Conveyors
2) Metal working machine
3) Agriculture machines
4) Road building machines
5) Mining machinery
6) Food industries
7) Special vehicles
8) Plastic and rubber machinery
9) And more


WHY US:
1. We are leading profesional manufacturer of Hydraulic motor in Guangdong China. Our products have been exported to more than 50 countries including Africa, Middle East, South America and Asia.
2. We are not only produce normal models, but also produce new models according to your design.
3. Professional service team and competitive price will give you a perfect purchasing experience.

Warranty:
1. Guarantee for one year or 1000 hours (according to whichever ends first) from the purchasing date on.
2. During the guarantee period, our company will provide the easy-damaged spare parts for problems
Caused by our quality of production or raw material. Pls provide the defective appearance and related invoice number.
3. Sorry for you should responsible for the freight come-and-go, and the custom tax.
4. After expiration, our company can provides cost spare-parts maintenance for engines.
5. To save the cost, you can choose send the motor back without packing.
6. My dear friend, your emails can be get within one business day. If you do not receive our reply, please kindly re-sent your email or give us a call any time.

Related Products:

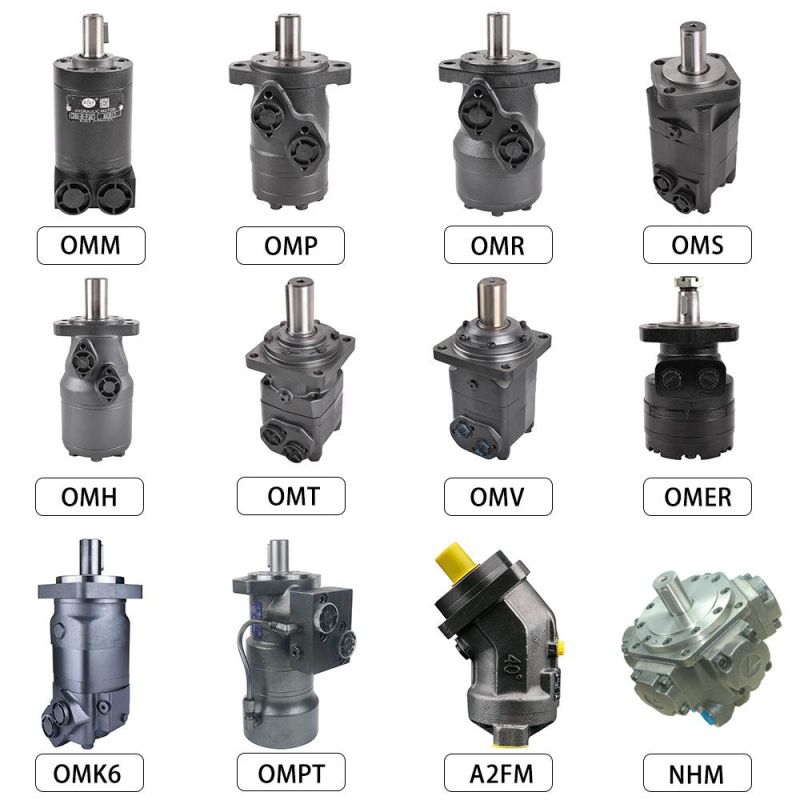

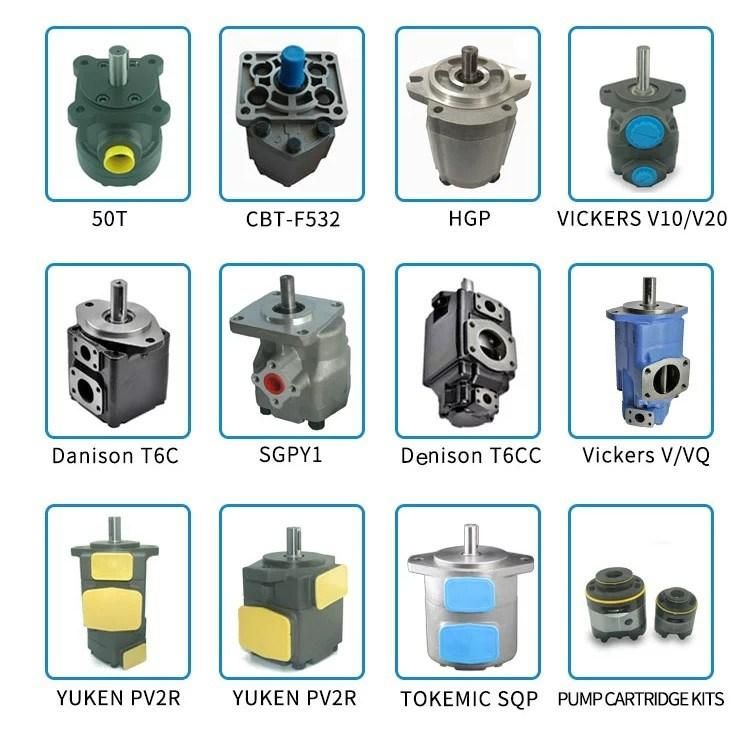

Blince profssion supply all series hydraulic motor like OMM/OMP/OZ/OMR/OK/OMH/OMP1/OYM/OMRL/OM1/OM2/OM3/OM4/OMSY/OMT/OMV /OMER hydraulic orbit motor,hydraulic pump like ( PV2R series/V/VQ series/SQP series ).
