Eaton Char-Lynn 2000 Series Disc Geroler Motor 104-1006-006, 308 Rpm, 20 Gpm

Shijiazhuang Hanjiu Technology Co., Ltd.
  • Certification：CE, ISO9001
  • Type：-
  • Transport Package：Carton Packing
  • Specification：2000 series
  • Trademark：Hanjiu
  • Origin：China

Base Info

  • Model NO.：2000 series
  • HS Code：84122910
  • Production Capacity：500000 Per Year

Description

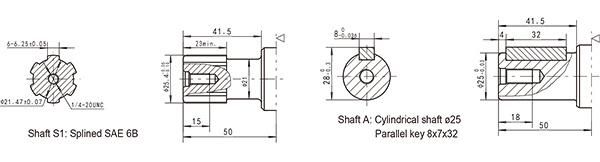

FeatureCodeDescriptionPRODUCTMMOTORSERIES022000 SERIESDISPLACEMENT149244.3 CM3/R [14.91 IN3/R]MOUNTING TYPEACSTANDARD, 2 BOLT; 82.6 [3.25] PILOT DIA. 13.59 [.535] DIA. HOLES ON 106.4 [4.19] DIA. BOLT CIRCLE. SAE AOUTPUT SHAFT0125.40 [1.000] DIA. STRAIGHT SHAFT WITH .250-20UNC-2B THREAD IN END, 6.35 [.250] WIDE X 25.40 [1.000] DIA. WOODRUFF KEYPORTSAA.875-14 UNF-2B SAE O-RING PORTS - STAGGERED PORTSCASE FLOW OPTION01.4375-20 UNF-2B SAE O-RING PORT





This is a Aftermarket Char-Lynn 2000 series motor 104-1006-006

Eaton Char-Lynn 2000 Series Disc Geroler Motor 104-1006-006, 308 Rpm, 20 GpmEaton Char-Lynn 2000 Series Disc Geroler Motor 104-1006-006, 308 Rpm, 20 GpmEaton Char-Lynn 2000 Series Disc Geroler Motor 104-1006-006, 308 Rpm, 20 GpmEaton Char-Lynn 2000 Series Disc Geroler Motor 104-1006-006, 308 Rpm, 20 GpmEaton Char-Lynn 2000 Series Disc Geroler Motor 104-1006-006, 308 Rpm, 20 Gpm

Features


The popular Char-Lynn 2000 Series Disc Valve Hydraulic Motors similar motor provide torque up to 7500 lb Inch. This proven design is reliable and durable. We have added options that make the motor more flexible to use in a wide variety of applications. The integral cross-over relief valve is the latest innovation in the 2000 series motors.



*Design for longer life and true bi-directionality
*Bearings that meet the highest standards of the industry
*Options to optimize performance in every application
*Integrated cross-over relief valve option
*Directional Boring any place pressure relief protection is optimal for system or motor performance and life applications

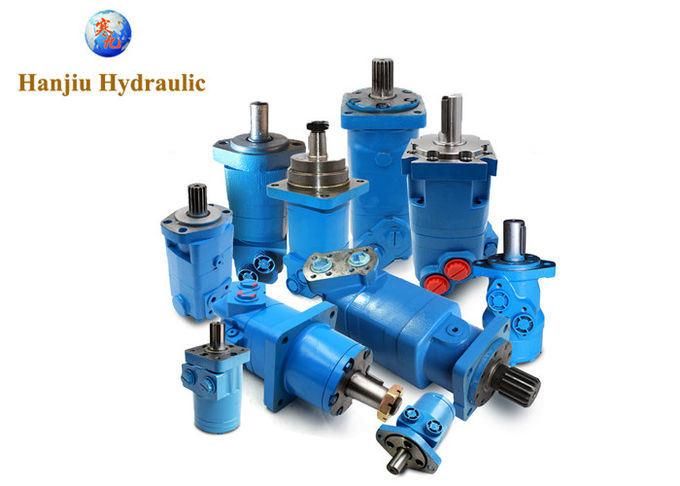

Below is reference photo of aftermarket Char-Lynn 2000 series motor 104-1006-006, and also more aftermarket notors of Eaton.

Eaton Char-Lynn 2000 Series Disc Geroler Motor 104-1006-006, 308 Rpm, 20 Gpm



A compact, highly efficient hydraulic motor is a key component of a hydraulic drive system. Hanjiu offers a wide variety of motors with unique performance characteristics which are designed for superior, efficient system performance. Contact us today to discuss your questions or application needs with our team.
