Custom-Made Hydraulic Power Unit (Hydraulic Power Pack) for Heavy Industry
Jiangyin Landi Machinery Co., Ltd.- Pressure：High Pressure
- Work Temperature：Normal Temperature
- Voltage：380V
- Installation：Horizontal
- Material：Carbon Steel
- Max. Pressure：35MPa
Base Info
- Model NO.：Customized
- Hydraulic Valve：Proportional Control Valve
- Auxiliary Components：Tank
- Hydraulic Fluid：Mineral oil
- Flow Control Valve：Throttle Valve
- Pressure Control Valve：Overflow Valve
- Hydraulic Control Unit：Check Valve
- Hydraulic Motor：Gear-Type Hydraulic Motor
- Hydraulic Actuator：Combination Hydraulic Cylinders
- Hydraulic Power Units：Gear Pump
- Transport Package：Plywood,Wood Case, Pallet
- Specification：European Standard, Chinese Standard
- Origin：China
- HS Code：8412299090
Description
Basic Info.
Model NO. Customized Hydraulic Valve Proportional Control Valve Auxiliary Components Tank Hydraulic Fluid Mineral oil Flow Control Valve Throttle Valve Pressure Control Valve Overflow Valve Hydraulic Control Unit Check Valve Hydraulic Motor Gear-Type Hydraulic Motor Hydraulic Actuator Combination Hydraulic Cylinders Hydraulic Power Units Gear Pump Transport Package Plywood/Wood Case, Pallet Specification European Standard, Chinese Standard Origin China HS Code 8412299090Product Description
Hydraulic power unit (hydraulic power pack) sees its extremely wide application in nearly every corner of industry all around the world. Hydraulics remains the first choice of power transmission for a vast array of different equipments.Our company supplies a variety of non-standard hydraulic power units (hydraulic power packs), typically used in metallurgical industry, welded steel pipe mill, mining industry, marine industry, construction industry, etc. We design the hydraulic systems according to customers' specific requirements. Each system is expertly configured to ensure reliable fluid power performance in hydraulic installations. Our hydraulic power units are flexible, integrated and intellectualized, providing a high-end hydraulic solution tailored individually to each project.
A hydraulic power unit is usually composed of hydraulic pump, electric motor, oil tank, manifold block, valves, electric box, filter, cooler, pressure gauge, oil temperature gauge, etc. The brands of the components can be designated by customers, i.e. well known brands which are readily available from local distributors in customers' area (this will make the spare parts purchasing and maintenance easier in future).

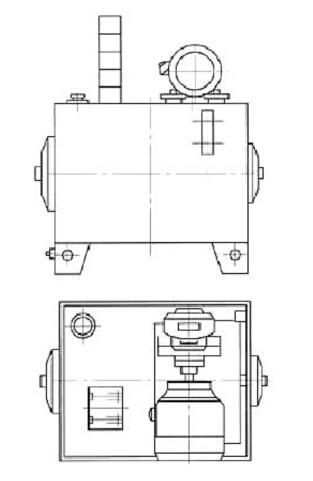

Figure 1: Horizontal hydraulic power unit

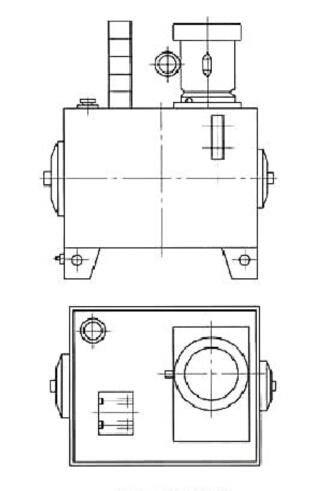

Figure 2: Vertical hydraulic power unit
