• Model NO.：4WE6
• Fluid：Mineral Oil or Phospate Ester
• Temperature Rang：-30-80 Celsius Degree
• Voltage Type：DC & AC
• Available Voltage：12, 24, 42, 60, 96, 110, 180, 205, 220, 380
• Protection to DIN：IP65
• Weight：2.2kg
• Transport Package：Cartons and Pallets
• Specification：4,3-, 4,2- or 3,2-way version
• Trademark：Longli
• Origin：China
• HS Code：8412299090
• Production Capacity：5000PCS,Month

Basic Info.

Model NO. 4WE6 Fluid Mineral Oil or Phospate Ester Temperature Rang -30-80 Celsius Degree Voltage Type DC & AC Available Voltage 12, 24, 42, 60, 96, 110, 180, 205, 220, 380 Protection to DIN IP65 Weight 2.2kg Transport Package Cartons and Pallets Specification 4/3-, 4/2- or 3/2-way version Trademark Longli Origin China HS Code 8412299090 Production Capacity 5000PCS/Month

Product Description

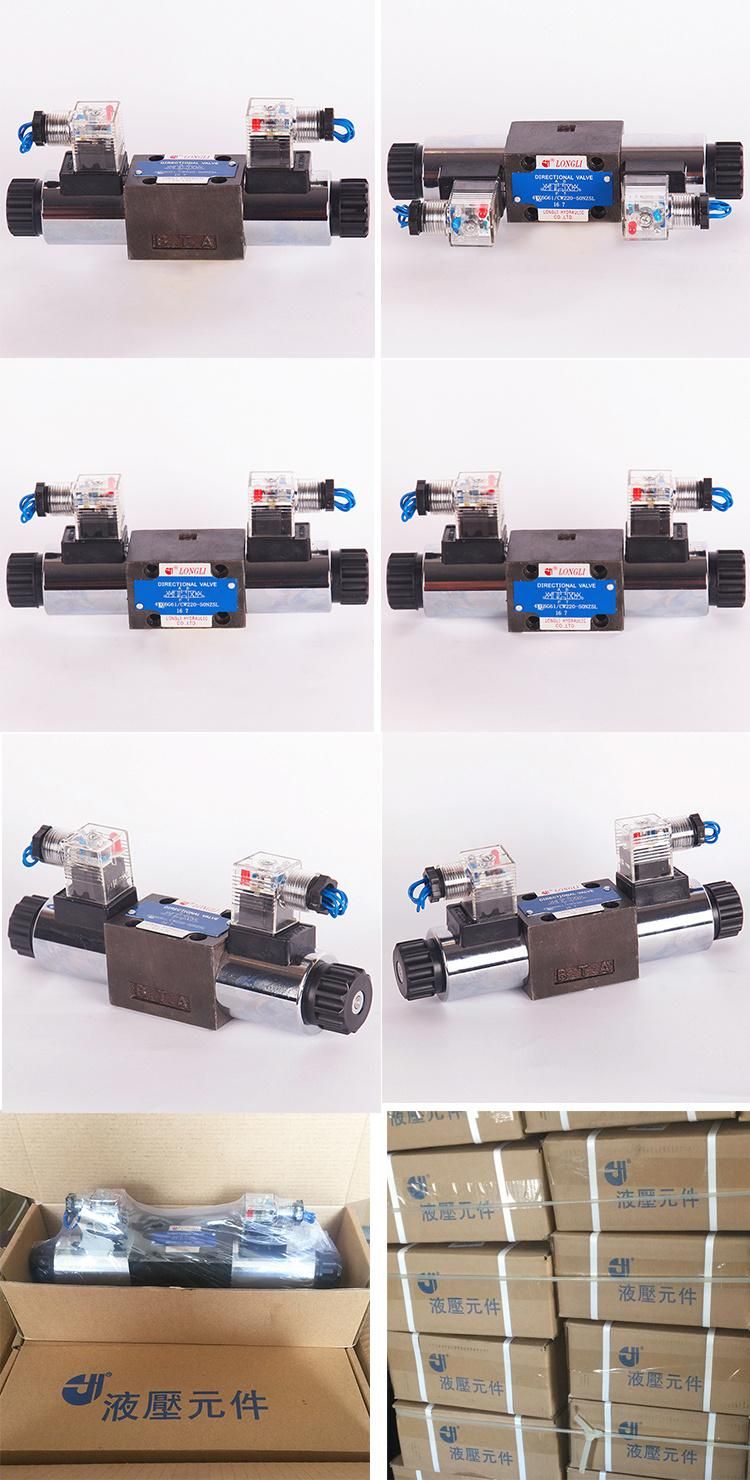

High quality 4WE6 Solenoid Directional Control Valves

Directional Valves of type WE are solenoid-actuated Directional Spool Valves. They control the start, stop and direction of a flow.
The directional valves basically consist of the housing, one or two solenoids, the control spool, and one or two return springs. In the de-energized condition, control spool is held in the central position or in the initial position by the return springs. The control spool is actuated by wet-pin solenoids.
To ensure proper functioning, make sure that the pressure chamber of the solenoid is filled with oil!
The force of the solenoid acts via the plunger on the control spool and pushes the latter from its rest position to the required end position. In this way, the required direction of flow according to the symbol is released. After de-excitation of the solenoid, the return spring pushes the control spool back to its rest position.
The manual override allows control spool to be moved without solenoid energization.

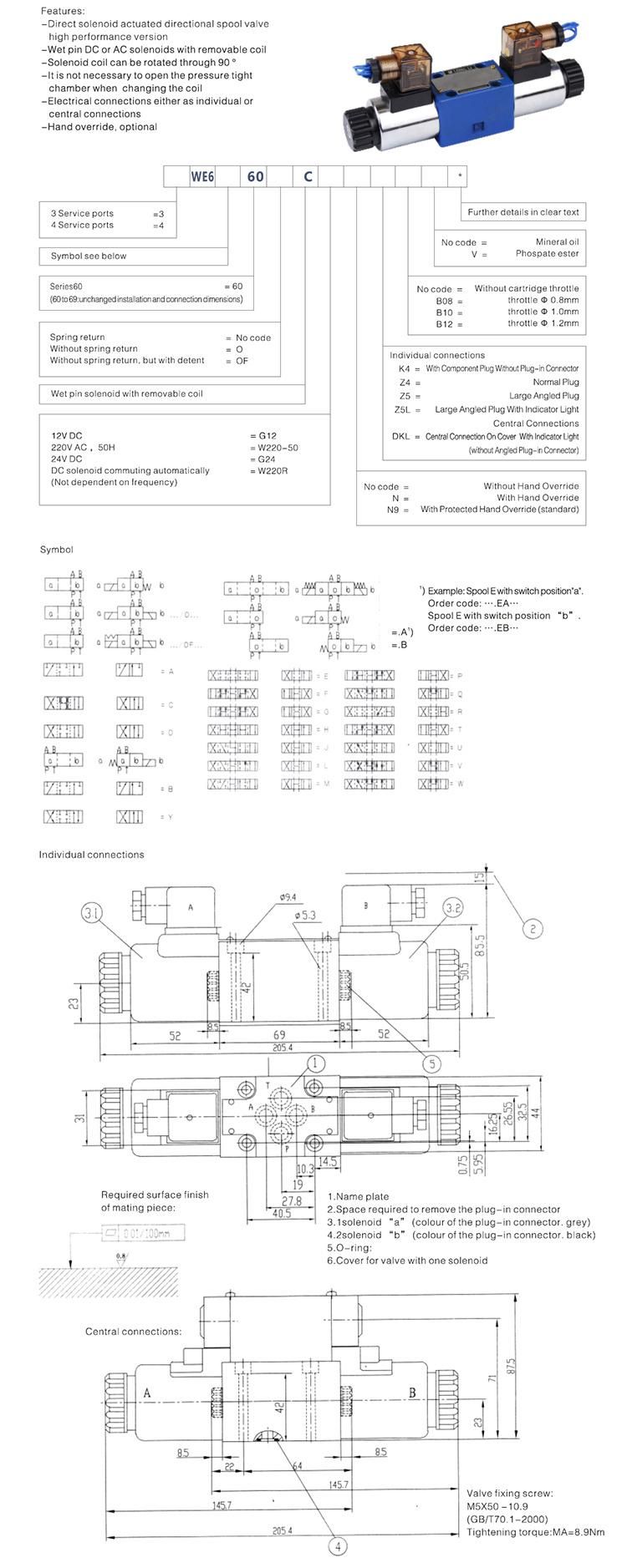

• 4/3-, 4/2- or 3/2-way version
• Standard version
• Porting pattern according to DIN 24340, form A
• Wet-pin DC solenoids
• Solenoid Coil can be rotated
• The coil can be changed without having to open the pressure-tight chamber
• Electrical connection as individual connection
• Concealed manual override

Why Choose Us
1. With 30 years experience of hydraulic components in China.
2. Best manufacturing machinery, quality level, best price, best service.
3. We have very good and comprehensive after-sales service.
4. We have no MOQ for clients and tailor0made to clients request for our huge inventory.

Our Service
Pre-sale service: We provide presales in our first cooperation make clear your situation and give you some advice.
In-sale Service: We will track the production progress and quality, check the exact model and quantity one by one before delivering.
After-sale Service: We will provide a one year free warranty and lifetime maintenance. We will change all questions in 7*24hours if you buy from us.

Packing
Eternal Brand, Neutral or Customer's requires label.
Neutral carton or same as the Customer's requires, export standard carton.
All cartons should be packed into the pallets more carefully.
All of the productions are inspected carefully one by one by QC before delivery.

Payment term:
T/T 50% as deposit in advance, the balance should be paid before delivery. 100% L/C is acceptable. Western Union and PayPal is acceptable.
Transportation: By sea; By air; By truck; By express (DHL, TNT, UPS, FedEx)
Trading term: FOB, CFR, CIF
