• Model NO.：4WE6
• Fluid：Mineral Oil or Phospate Ester
• Temperature Rang：-30-80 Celsius Degree
• Voltage Type：DC & AC
• Available Voltage：12,24,42,60,96,110,180,205,220,380
• Protection to DIN：IP65
• Weight：1.7
• Transport Package：Cartons and Pallets
• Specification：4,3-, 4,2- or 3,2-way version
• Trademark：Longli
• Origin：China
• HS Code：8412299090
• Production Capacity：5000PCS,Month

Basic Info.

Model NO. 4WE6 Fluid Mineral Oil or Phospate Ester Temperature Rang -30-80 Celsius Degree Voltage Type DC & AC Available Voltage 12,24,42,60,96,110,180,205,220,380 Protection to DIN IP65 Weight 1.7 Transport Package Cartons and Pallets Specification 4/3-, 4/2- or 3/2-way version Trademark Longli Origin China HS Code 8412299090 Production Capacity 5000PCS/Month

Product Description

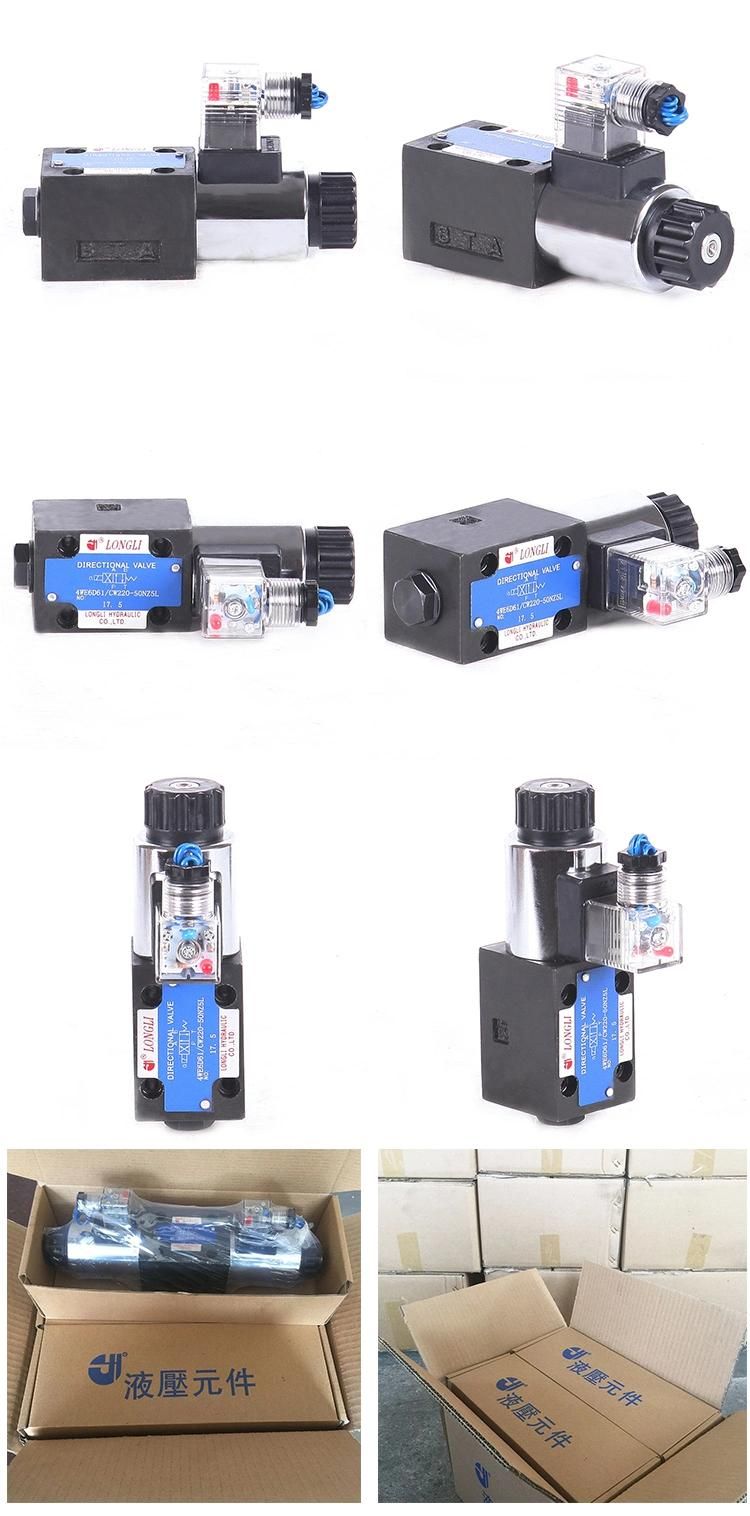

Single head 4WE6 hydraulic Solenoid Directional Valve



The Rexroth 4WE6C, 4WE6D,4WE6A,4WE6B and 4WE6Y directional control Hydraulic Valve single solenoid is a four-way valve, it will operate in its position until the coil energized, and returning to its previous position when the power is removed, with the qualified coils are moisture and dirt resistant. The standard accessories are manual override, indicating signal lights, bolt kit, plastic connectors are easy for replacement.

Cetop 3 4WE6D,4WE6A,4WE6B and 4WE6Y directional control hydraulic valve single solenoid. The Cetop3 directional control hydraulic valve amounted with wet solenoids and maximum insulating properties, which is impervious to moisture and dirt situation. Plug in coil, which is easy to replace and maintenance, and changeable voltage for different requirements.

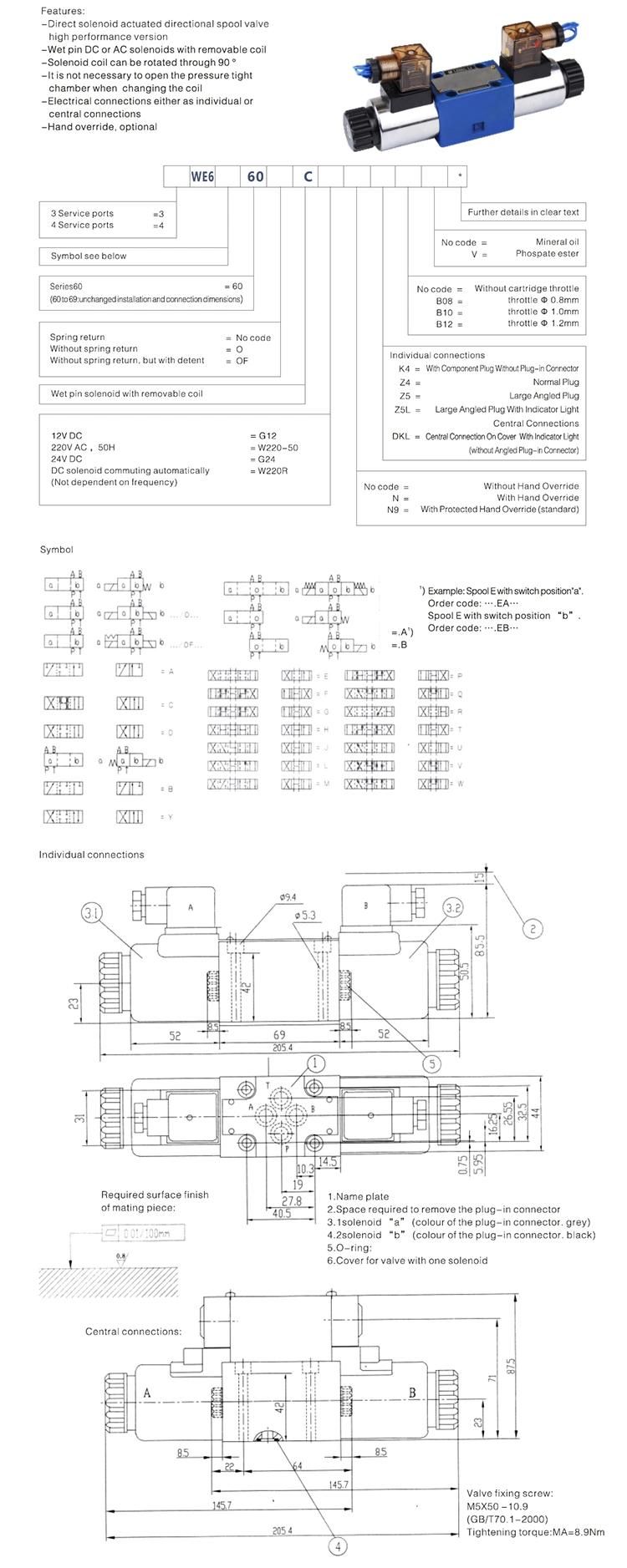

Features:

- Direct solenoid actuated directional spool valve high performance version

- Wet pin DC or AC solenoids with removable coil

- Solenoid Coil can be rotated through 90degree

- It is not necessary to open the pressure tight chamber when changing the coil

- Electrical connections either as individual or central connections

- Hand override, optional

Why Choose Us
1. With 30 years experience of hydraulic components in china.
2. Best manufacturing machinery, quality level, best price, best service.
3. We have very good and comprehensive after-sales service.
4. We have no MOQ for clients and tailor0made to clients request for our huge inventory.

Our Service
Pre-sale service: we provide presales in our first cooperation make clear your situation and give you some advice.
In-sale Service: We will track the production progress and quality, check the exact model and quantity one by one before delivering.
After-sale Service: We will provide a one year free warranty and lifetime maintenance. We will change all questions in 7*24hours if you buy from us.

Packing
Eternal Brand, Neutral or Customer's requires label.
Neutral carton or same as the Customer's requires, export standard carton.
All cartons should be packed into the pallets more carefully.
All of the productions are inspected carefully one by one by QC before delivery.

Payment term:
T/T 50% as deposit in advance, the balance should be paid before delivery.100% L/C is acceptable. Western Union and PayPal is acceptable.
Transportation: By sea; By air; By truck; By express (DHL,TNT,UPS,FEDEX)
Trading term: FOB,CFR,CIF
