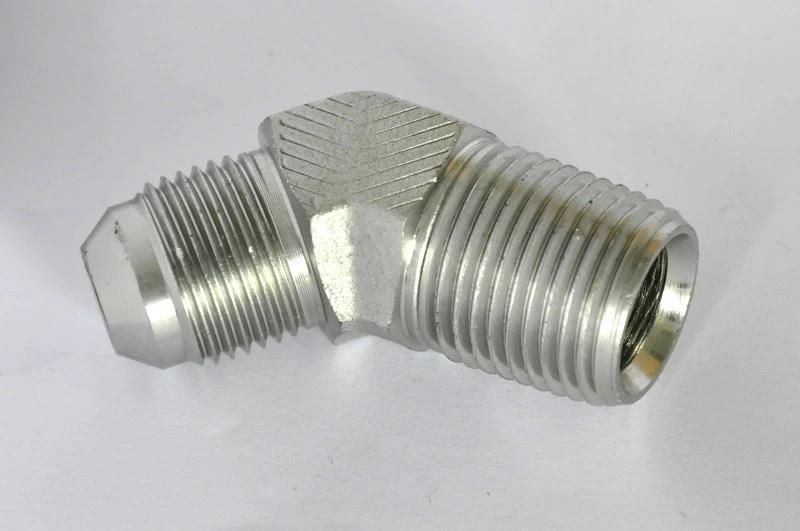

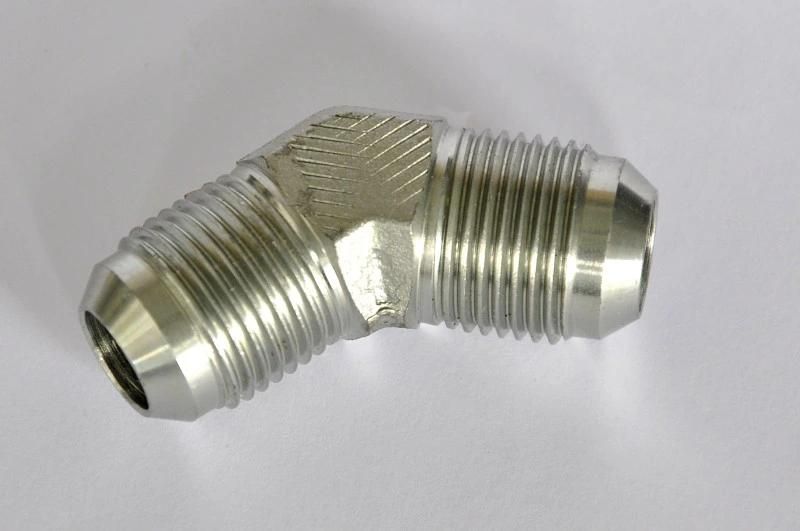

Male Jic to Male Pipe 45&Deg Adapter
YUYAO RUIFENG HYDRAULIC CO., LTD.- Pressure：High Pressure
- Work Temperature：High Temperature
- Feature：Heat-Resistant, Cold-Resistant
- Material：Stainless Steel
- Size: 04,06,08,10,12,16,20,24,32：Surface Finished: White or Yellow Zinc
- Type：Hydraulic Power Units
Base Info
- Model NO.：2503
- Auxiliary Components：Pipe and Pipe Fittings
- Transport Package：Plastic Bag+Box +Pallet
- Specification：04-32
- Trademark：OEM OR NO BRAND
- Origin：Ningbo, China
- HS Code：73079900
- Production Capacity：500000PCS,Month
Description
| ITEM | P/N | T1(UNF-2A) | L1 | T2(NPTF) | L2 | Y FLATS |
| 1 | 2503-02-02 | 5/16-24 | 0.69 | 1/8-27 | 0.52 | 0.5 |
| 2 | 2503-03-02 | 3/8-24 | 0.69 | 1/8-27 | 0.52 | 0.438 |
| 3 | 2503-04-02 | 7/16-20 | 0.72 | 1/8-27 | 0.64 | 0.438 |
| 4 | 2503-04-04 | 7/16-20 | 0.82 | 1/4-18 | 0.86 | 0.562 |
| 5 | 2503-04-06 | 7/16-20 | 0.85 | 3/8-18 | 0.95 | 0.75 |
| 6 | 2503-04-08 | 7/16-20 | 0.87 | 1/2-14 | 1.17 | 0.875 |
| 7 | 2503-05-02 | 1/2-20 | 0.77 | 1/8-27 | 0.64 | 0.562 |
| 8 | 2503-05-04 | 1/2-20 | 0.82 | 1/4-18 | 0.86 | 0.562 |
| 9 | 2503-05-06 | 1/2-20 | 0.85 | 3/8-18 | 0.95 | 0.812 |
| 10 | 2503-06-02 | 9/16-18 | 0.83 | 1/8-27 | 0.67 | 0.562 |
| 11 | 2503-06-04 | 9/16-18 | 0.83 | 1/4-18 | 0.86 | 0.562 |
| 12 | 2503-06-06 | 9/16-18 | 0.87 | 3/8-18 | 0.95 | 0.75 |
| 13 | 2503-06-08 | 9/16-18 | 0.88 | 1/2-14 | 1.17 | 0.875 |
| 14 | 2503-06-12 | 9/16-18 | 0.93 | 3/4-14 | 1.2 | 1.062 |
| 15 | 2503-08-04 | 3/4-16 | 0.98 | 1/4-18 | 0.95 | 0.75 |
| 16 | 2503-08-06 | 3/4-16 | 0.98 | 3/8-18 | 0.95 | 0.75 |
| 17 | 2503-08-08 | 3/4-16 | 0.99 | 1/2-14 | 1.17 | 0.875 |
| 18 | 2503-08-12 | 3/4-16 | 1.04 | 3/4-14 | 1.2 | 1.062 |
| 19 | 2503-10-06 | 7/8-14 | 1.11 | 3/8-18 | 0.98 | 0.875 |
| 20 | 2503-10-08 | 7/8-14 | 1.11 | 1/2-14 | 1.17 | 0.875 |
| 21 | 2503-10-12 | 7/8-14 | 1.16 | 3/4-14 | 1.2 | 1.062 |
| 22 | 2503-12-08 | 1 1/16-12 | 1.28 | 1/2-14 | 1.2 | 1.062 |
| 23 | 2503-12-12 | 1 1/16-12 | 1.28 | 3/4-14 | 1.2 | 1.062 |
| 24 | 2503-12-16 | 1 1/16-12 | 1.42 | 1-11 1/2 | 1.48 | 1.312 |
| 25 | 2503-14-12 | 1 3/16-12 | 1.45 | 3/4-14 | 1.3 | 1.312 |
| 26 | 2503-16-08 | 1 5/16-12 | 1.47 | 1/2-14 | 1.29 | 1.312 |
| 27 | 2503-16-12 | 1 5/16-12 | 1.47 | 3/4-14 | 1.29 | 1.312 |
| 28 | 2503-16-16 | 1 5/16-12 | 1.47 | 1-11 1/2 | 1.48 | 1.312 |
| 29 | 2503-16-20 | 1 5/16-12 | 1.54 | 1 1/4-11 1/2 | 1.67 | 1.625 |
| 30 | 2503-20-16 | 1 5/8-12 | 1.59 | 1-11 1/2 | 1.64 | 1.625 |
| 31 | 2503-20-20 | 1 5/8-12 | 1.59 | 1 1/4-11 1/2 | 1.67 | 1.625 |
| 32 | 2503-20-24 | 1 5/8-12 | 1.65 | 1 1/2-11 1/2 | 1.77 | 1.875 |
| 33 | 2503-24-24 | 1 7/8-12 | 1.78 | 1 1/2-11 1/2 | 1.77 | 1.875 |
| 34 | 2503-32-32 | 2 1/2-12 | 2.22 | 2-11 1/2 | 2.11 | 2.5 |
