• Model NO.：DSG 02
• Fluid：Mineral Oil or Phospate Ester
• Temperature Rang：-30-80 Celsius Degree
• Voltage Type：DC & AC
• Available Voltage：12,24,42,60,96,110,180,205,220,380
• Protection to DIN：IP65
• Weight：1.9
• Transport Package：Cartons and Pallets
• Specification：4,3-, 4,2- or 3,2-way version
• Trademark：Longli
• Origin：China
• HS Code：8412299090
• Production Capacity：5000PCS,Month

Basic Info.

Model NO. DSG 02 Fluid Mineral Oil or Phospate Ester Temperature Rang -30-80 Celsius Degree Voltage Type DC & AC Available Voltage 12,24,42,60,96,110,180,205,220,380 Protection to DIN IP65 Weight 1.9 Transport Package Cartons and Pallets Specification 4/3-, 4/2- or 3/2-way version Trademark Longli Origin China HS Code 8412299090 Production Capacity 5000PCS/Month

Product Description

DSG 02 Yuken Solenoid Operated Directional Valve



Yuken solenoid operated directional valve is used for changing the hydraulic oil flow ways in order to keep the devices in a requirement condition, our valves mounting surface meets the standard of ISO 4401, CETOP, DIN24340, NFPA specifications , interoperability strong. We are using the high quality solenoids allow the valves to realize the optimum performance in different working surroundings. Our adopt coils have such good advantage:
1.Wet immersion oil design, with a buffer to reduce noise and eliminate friction between the spool and seal leakage problems cited and increase service life.
2. With the specifications of the spool, coil, galvanized iron pipe can be replaced, easy to install and reduce costs.
3. High pressure can be tested to 1500V/min, coil insulation class H, experience more than 50M ohm resistor, temperature reaches to 180 ºC.
4. The valve body is made of resin sand casting, and after ultrasonic cleaning machine cleaning , to eliminate residual foreign high reliability, which is completed meets the mounting requirements of solenoids.
5. Galvanized iron rod of solenoid was welded in three sessions with a special device to prevent residual magnetism impact, strength, can withstand high pressure.

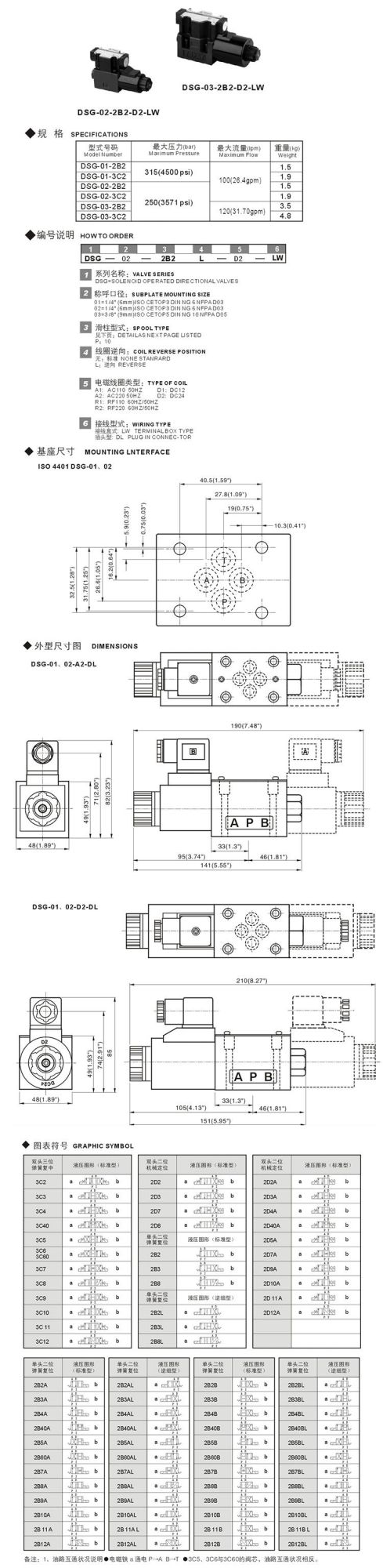

Product name: DSG 02 Hydraulic Solenoid Directional Valve
Model: DSG-02 Series
Place of Origin: Shandong,China (Mainland)
Power: Hydraulic
Standard or Nonstandard: Standard
Pressure: Medium Pressure
Structure: Control
Material: Casting
Temperature of Media: Medium Temperature
Media: Oil
Brand Name: Longli
Product description:: DSG series side10mm, Yuken type solenoid operated Hydraulic Directional Control Valve
Connection type:: Sandwich plate vertical stacking connection
Max. operation pressure:: 315bar
Porting pattern:: DIN 24340, ISO 4401, NFPA 2002 D03, interchangeable with other brand
Max. flow rate:: 100lpm (26.4gpm)
Voltage application:: 220VAC,110AC,24VDC,12VDC
Working temperature:: -30+80ºC of NBR seals and -20+80ºCof FPM seals
Recommended medium filtration:: Class9 NAS 1638 at min. filter fineness 10 more than and equals to 75
Medium viscosity range:: 28-500mm2/S
Valve net weight:: 1.9Kgs



Why Choose Us
1. With 30 years experience of hydraulic components in china.
2. Best manufacturing machinery, quality level, best price, best service.
3. We have very good and comprehensive after-sales service.
4. We have no MOQ for clients and tailor0made to clients request for our huge inventory.

Our Service
Pre-sale service: we provide presales in our first cooperation make clear your situation and give you some advice.
In-sale Service: We will track the production progress and quality, check the exact model and quantity one by one before delivering.
After-sale Service: We will provide a one year free warranty and lifetime maintenance. We will change all questions in 7*24hours if you buy from us.

Packing
Eternal Brand, Neutral or Customer's requires label.
Neutral carton or same as the Customer's requires, export standard carton.
All cartons should be packed into the pallets more carefully.

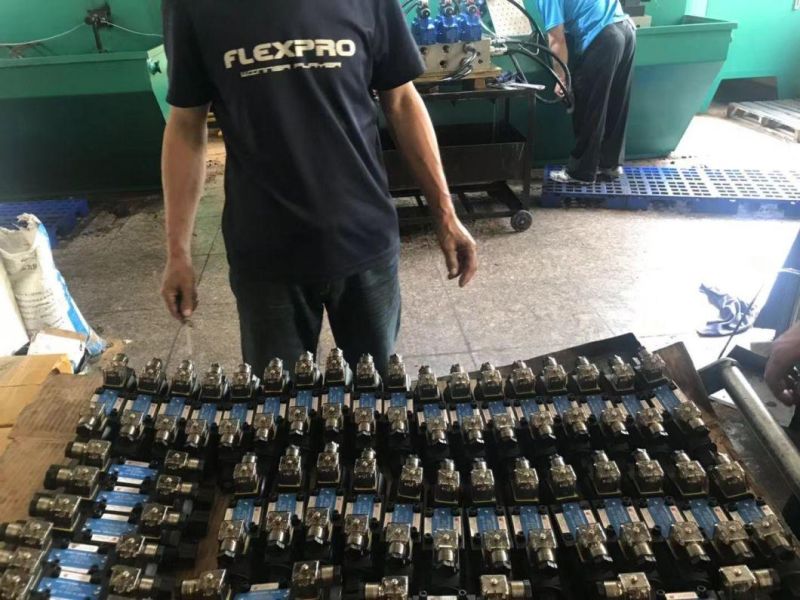

All of the productions are inspected carefully one by one by QC before delivery.

Payment term:
T/T 50% as deposit in advance, the balance should be paid before delivery.100% L/C is acceptable. Western Union and PayPal is acceptable.
Transportation: By sea; By air; By truck; By express (DHL,TNT,UPS,FEDEX)
Trading term: FOB,CFR,CIF
