• Model NO.：SV08-34H

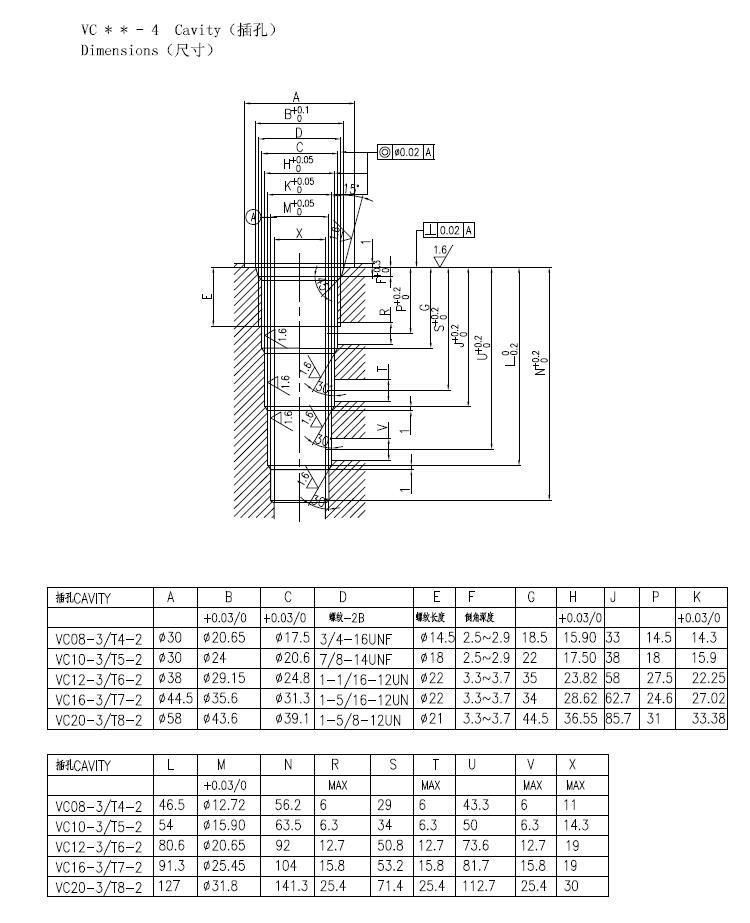

• Cavity：T4-3,VC08-4
• Internal Leakage：164cc,min
• Fluid：Mineral Oil or Phospate Ester
• Temperature Rang：-30-120 Celsius Degree
• Voltage Type：DC & AC
• Available Voltage：12,24,42,60,96,110,180,205,220,380
• Protection to DIN：IP65
• Certificate：ISO9001
• Transportation：Ocean,Land,Air,Express
• Transport Package：Cartons and Pallets
• Specification：T4-3,VC08-4
• Trademark：Longli
• Origin：China
• HS Code：8412299090
• Production Capacity：6000PCS,Month

Basic Info.

Model NO. SV08-34H Cavity T4-3/VC08-4 Internal Leakage 164cc/min Fluid Mineral Oil or Phospate Ester Temperature Rang -30-120 Celsius Degree Voltage Type DC & AC Available Voltage 12,24,42,60,96,110,180,205,220,380 Protection to DIN IP65 Certificate ISO9001 Transportation Ocean,Land,Air,Express Transport Package Cartons and Pallets Specification T4-3/VC08-4 Trademark Longli Origin China HS Code 8412299090 Production Capacity 6000PCS/Month

Product Description

DESCRIPTION
A solenoid-operated, 4-way, 3-position, direct-acting, spool-type, open center, screw-in hydraulic cartridge valve.

OPERATION
When de-energized, the SV08-47B allows flow to all ports. When coil S1 is energized, flow is allowed from 3 to 4, and from 2 to 1. When coil S2 is energized, flow is allowed from 3 to 2, and from 4 to 1. In circuits where work port flows are unequal due to cylinder ratios, the higher return flow should be directed to port 2. While 1 may be fully pressurized, it is not intended for use as the valve's inlet.

Operation of Manual Override Option: To override, push the knurled button to activate the coil S2 function, or pull the knob to activate the coil S1 function.

FEATURES
• Continuous-duty rated solenoid.
• Hardened precision spool and cage for long life.
• Optional coil voltages and terminations.
• Manual override option.
• Optional waterproof E-Coils rated up to IP69K.
• Efficient wet-armature construction.
• All ports may be fully pressurized.
• Cartridges are voltage interchangeable.
• Unitized, molded coil design.
• Industry-common cavity-compact size.

RATINGS
Operating Pressure: 207 bar (3000 psi)
Flow: Up to 11 lpm (3 gpm)
Internal Leakage: 328 cc/minute (20 cu. in./minute) max. at 207 bar (3000 psi)
Temperature: -40 to 100 °C (-40 to 212 °F) with Buna seals;
   -26 to 204 °C (-15 to 400 °F) with Fluorocarbon seals
Coil Duty Rating: Continuous from 85% to 115% of nominal voltage
Initial Coil Current Draw at 20° C: Standard Coil: 1.2 A at 12 Vdc;
   0.13 A at 115 Vac (full wave rectified).
   E-Coil: 1.4 A at 12 Vdc; 0.7 A at 24 Vdc
Minimum Pull-in Voltage: 85% of nominal at 207 bar (3000 psi)

Why Choose Us
1. With 30 years experience of hydraulic components in china.
2. Best manufacturing machinery, quality level, best price, best service.
3. We have very good and comprehensive after-sales service.
4. We have no MOQ for clients and tailor0made to clients request for our huge inventory.

Our Service
Pre-sale service: we provide presales in our first cooperation make clear your situation and give you some advice.
In-sale Service: We will track the production progress and quality, check the exact model and quantity one by one before delivering.
After-sale Service: We will provide a one year free warranty and lifetime maintenance. We will change all questions in 7*24hours if you buy from us.

Packing
Eternal Brand, Neutral or Customer's requires label.
Neutral carton or same as the Customer's requires, export standard carton.
All cartons should be packed into the pallets more carefully.
All of the productions are inspected carefully one by one by QC before delivery.

Payment term:
T/T 50% as deposit in advance, the balance should be paid before delivery.100% L/C is acceptable. Western Union and PayPal is acceptable.
Transportation: By sea; By air; By truck; By express (DHL,TNT,UPS,FEDEX)
Trading term: FOB,CFR,CIF
