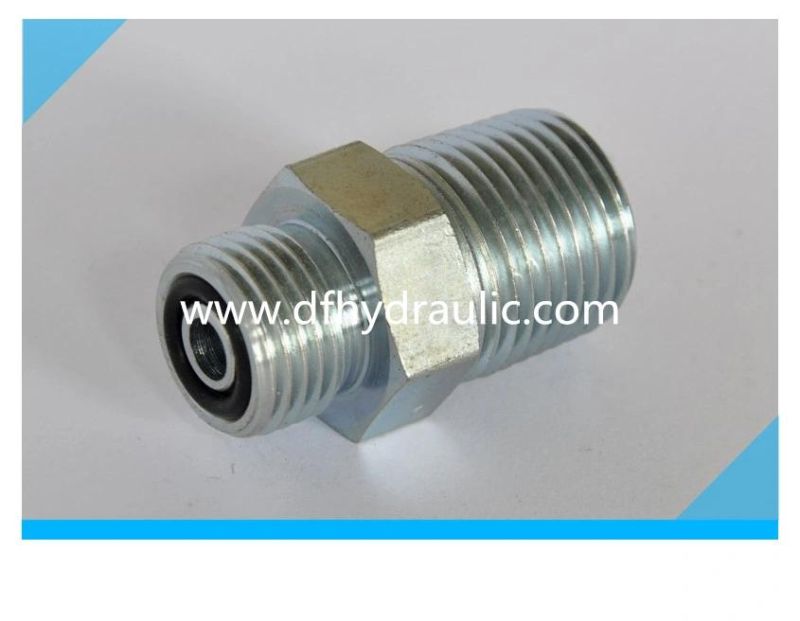

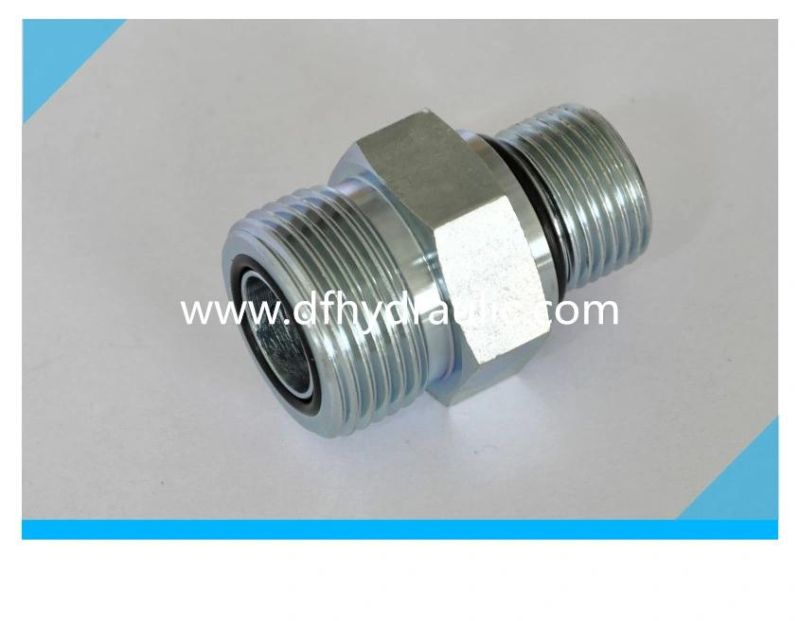

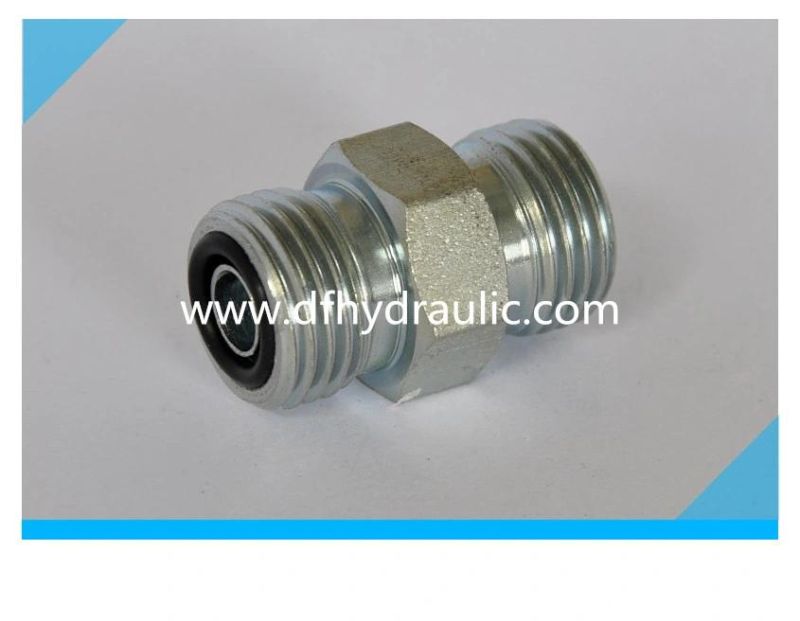

Orfs to Male O-Ring Fs6400
YUYAO RUIFENG HYDRAULIC CO., LTD.- Pressure：High Pressure
- Work Temperature：High Temperature
- Thread Type：External Thread
- Installation：Sleeve Type
- Material：Carbon Steel
- Type：Hydraulic Power Units
Base Info
- Model NO.：FS6400
- Size: 03,04,05,06,08,10,12,16,20,24,32：Surface Treatment: White or Yellow Zinc
- Auxiliary Components：Pipe and Pipe Fittings
- Transport Package：Plastic Bag+Box +Pallet
- Specification：SGS
- Trademark：OEM OR NO BRAND
- Origin：Ningbo, China
- HS Code：73079200
- Production Capacity：500000PCS,Month
Description
| ITEM | P/N | T1(UNF-2A) | L1 | T2(UNF-2A) | L2 | C HEX |
| 1 | FS6400-04-04-O | 9/16-18 | 0.700 | 7/16-20 | 0.433 | 0.625 |
| 2 | FS6400-04-05-O | 9/16-18 | 0.700 | 1/2-20 | 0.433 | 0.625 |
| 3 | FS6400-04-06-O | 9/16-18 | 0.730 | 9/16-18 | 0.472 | 0.750 |
| 4 | FS6400-04-08-O | 9/16-18 | 0.770 | 3/4-16 | 0.551 | 0.875 |
| 5 | FS6400-04-10-O | 9/16-18 | 0.850 | 7/8-14 | 0.630 | 1.000 |
| 6 | FS6400-06-04-O | 11/16-16 | 0.910 | 7/16-20 | 0.433 | 0.750 |
| 7 | FS6400-06-06-O | 11/16-16 | 0.780 | 9/16-18 | 0.472 | 0.750 |
| 8 | FS6400-06-08-O | 11/16-16 | 0.830 | 3/4-16 | 0.551 | 0.875 |
| 9 | FS6400-06-10-O | 11/16-16 | 0.900 | 7/8-14 | 0.630 | 1.062 |
| 10 | FS6400-06-12-O | 11/16-16 | 0.960 | 1 1/16-12 | 0.728 | 1.250 |
| 11 | FS6400-08-06-O | 13/16-16 | 1.000 | 9/16-18 | 0.472 | 0.875 |
| 12 | FS6400-08-08-O | 13/16-16 | 0.890 | 3/4-16 | 0.551 | 0.875 |
| 13 | FS6400-08-10-O | 13/16-16 | 0.960 | 7/8-14 | 0.630 | 1.062 |
| 14 | FS6400-08-12-O | 13/16-16 | 1.020 | 1 1/16-12 | 0.728 | 1.250 |
| 15 | FS6400-10-06-O | 1-14 | 1.170 | 9/16-18 | 0.472 | 1.062 |
| 16 | FS6400-10-08-O | 1-14 | 1.230 | 3/4-16 | 0.551 | 1.062 |
| 17 | FS6400-10-10-O | 1-14 | 1.070 | 7/8-14 | 0.630 | 1.062 |
| 18 | FS6400-10-12-O | 1-14 | 1.130 | 1 1/16-12 | 0.728 | 1.250 |
| 19 | FS6400-12-08-O | 1 3/16-12 | 1.360 | 3/4-16 | 0.551 | 1.250 |
| 20 | FS6400-12-10-O | 1 3/16-12 | 1.360 | 7/8-14 | 0.630 | 1.250 |
| 21 | FS6400-12-12-O | 1 3/16-12 | 1.190 | 1 1/16-12 | 0.728 | 1.250 |
| 22 | FS6400-12-16-O | 1 3/16-12 | 1.230 | 1 5/16-12 | 0.728 | 1.500 |
| 23 | FS6400-16-08-O | 1 7/16-12 | 1.410 | 3/4-16 | 0.551 | 1.500 |
| 24 | FS6400-16-10-O | 1 7/16-12 | 1.410 | 7/8-14 | 0.630 | 1.500 |
| 25 | FS6400-16-12-O | 1 7/16-12 | 1.410 | 1 1/16-12 | 0.728 | 1.500 |
| 26 | FS6400-16-16-O | 1 7/16-12 | 1.250 | 1 5/16-12 | 0.728 | 1.500 |
| 27 | FS6400-16-20-O | 1 7/16-12 | 1.330 | 1 5/8-12 | 0.728 | 1.875 |
| 28 | FS6400-20-16-O | 1 11/16-12 | 1.550 | 1 5/16-12 | 0.728 | 1.875 |
| 29 | FS6400-20-20-O | 1 11/16-12 | 1.330 | 1 5/8-12 | 0.728 | 1.875 |
| 30 | FS6400-24-24-O | 2-12 | 1.400 | 1 7/8-12 | 0.728 | 2.125 |
