• Model NO.：Rexroth MCR05
• Type：Hydraulic Motor
• Color：Orange, Black
• Transport Package：Standard Export Packing
• Specification：ISO9001
• Trademark：Helm Tower
• Origin：Ningbo
• HS Code：841229100
• Production Capacity：6500PCS,Month

Basic Info.

Model NO. Rexroth MCR05 Type Hydraulic Motor Color Orange, Black Transport Package Standard Export Packing Specification ISO9001 Trademark Helm Tower Origin Ningbo HS Code 841229100 Production Capacity 6500PCS/Month

Product Description

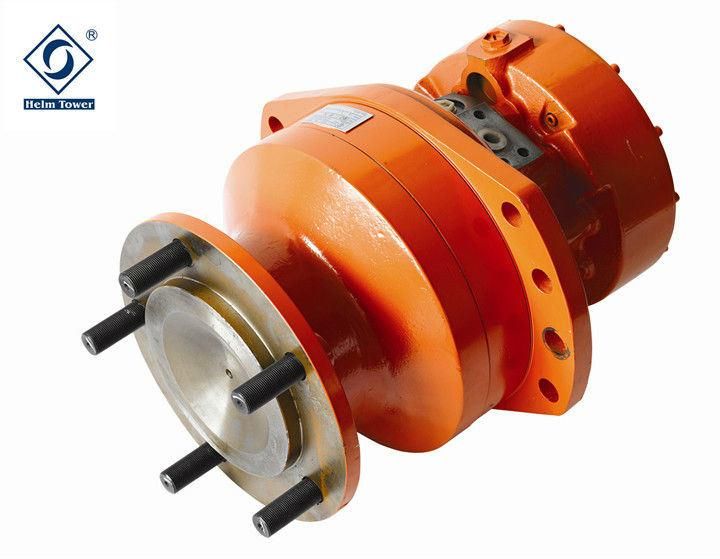

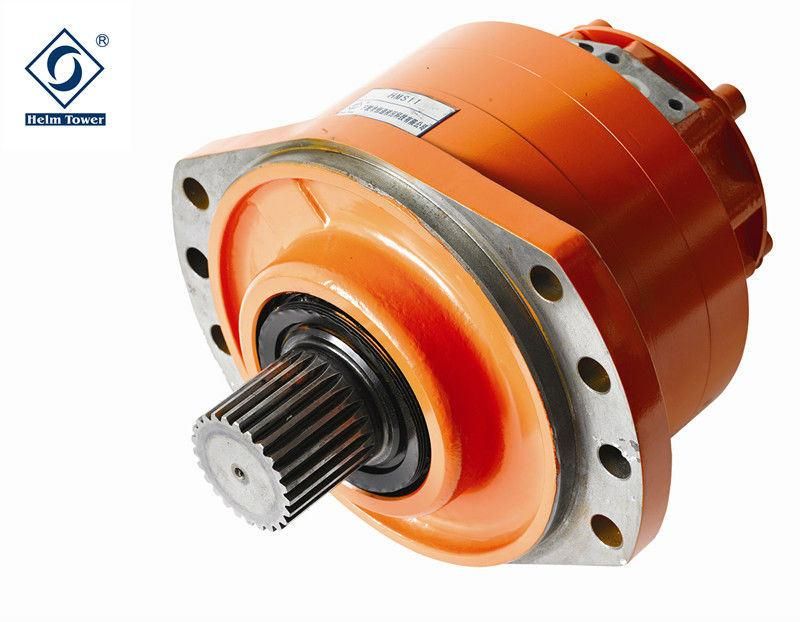

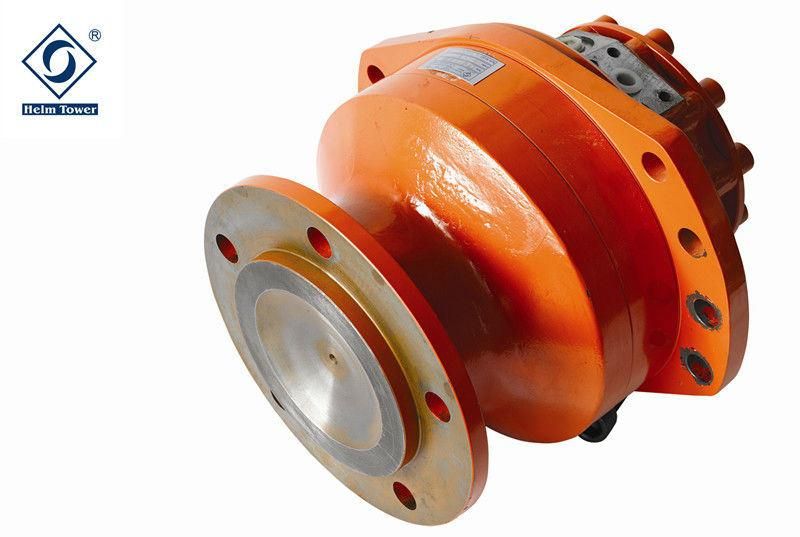

MCR05 Wheel hydraulic motor
Rexroth Hydraulic motor
Radial piston type,
Adopt Imported Bearing and Oil Seal, etc,
Rexroth same series motor perfect replacement,
Designed in control modules, combine freely,
High efficiency, High pressure, low noise,
Radial piston, Low speed, High torque.

Complete type example:
MCR05A565A60Z3X32A0M1L
MCR05C565F120Z32A0M


MCR05 Applications:
Mining Machinery: Coal Winning Machine, Road Header, Heavy Duty Handling Car, Coal Mine Drill
Engineering Machinery: Skid Steer Loader, Break Machine,

Type	MCR05-380	MCR05-470	MCR05-520	MCR05-565	MCR05-680	MCR05-750
Displacement(ml/r)	380	470	520	565	680	750
Continuous output power(kw)	29	29	29	29	35	35
Differential pressure 10Mpa torque(Nm)	604	748	827	899	1082	1194
Rated torque(Nm)	1419	1756	1942	2111	2540	2802
Pressure rating(Mpa)	25	25	25	25	25	25
Max. pressure(Mpa)	40	40	40	40	40	40
Max. speed(rpm)	220	220	220	220	220	170



1. REXROTH  MCR05/MCRE05 HYDRAULIC MOTOR:



2. Product Features:

Poclain MCR05 Hydraulic Motor :

1). Radial piston type;

2). Adopt Imported Bearing and Oil Seal, etc.

3). Modular design, High efficiency, High pressure and smooth running even at very low speeds.

4). Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control.



3. Applications:

Construction Machinery:Horizontal Directional Drill (HDD), Jumbolter, Road Roller, Cement Concrete Mixing Machine, Forging Manipulators.

Marine Machinery:Windlass,Crane.

Mining Machinery:Road Header, Heavy Duty Handling Car, Coal Mine Drill.

Our MCR AND MS MSE series hydraulic motor are widely applied to agriculture machine, construction machine, coal mine machine, marine equipment, forestry machine etc.

For instance:
- BELL 220A Telelogger
- HAMM 4011 Road Roller
- BOMAG 211 Soil compactor
- BOMAG 130 AD Road Roller
- BOMAG Roller BW213 D2
- Carterpillar 226B,
- Carterpillar CS-563 compactor
- John Deere 280 skid steer,
- T190 skid steer and excavators
- VERMEER Horizontal Directional Drill
- SANDVIK Machine
- Gehl 6635 Skid steer
- Greenbeans and pea Harvesting Machine(PMC-979-AT)

Packaging & Shipping

Packaging

1) By air: Anti-rust treatment + suitable carton box + outer carton box + packing belt.

2) By sea: Anti-rust treatment + suitable carton box + wooden box + metal belt.
3) As the client's requirement.

Shipping

urgent & small gross weight by air

big gross weight by sea

Company Information

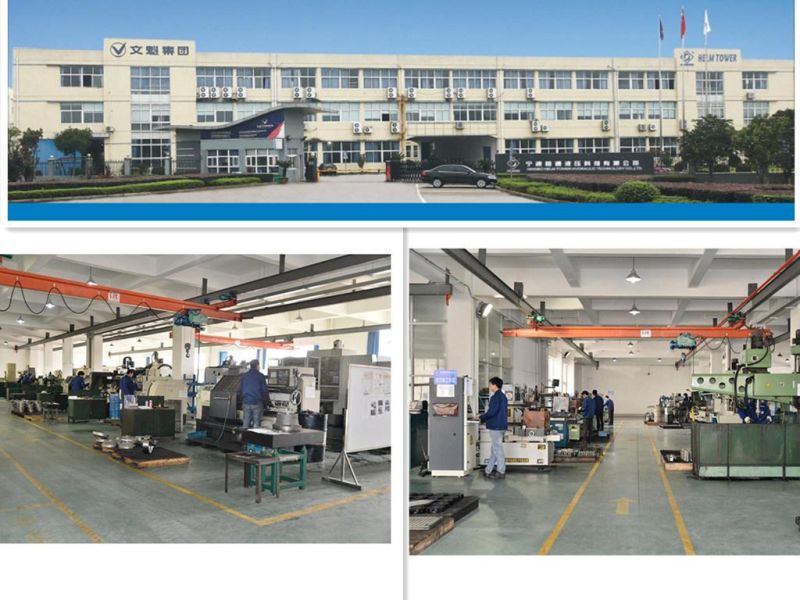

About US
   Ningbo Helm Tower Noda Hydraulic Co., Ltd is belong to Ningbo wenkui group. which is a professional manufacturer for hydraulic systems, motors, pumps and parts.

    Including:
Japanese IHI vane motor with three series of HVK,HVN,HVL total 10 size which can used in ship crane and port crane.
Poclain MS series Motors and Parts:MS02,MS05,MS08,MS11,MS18,MS25,MS35,MS50,MS83,MS125
Rexroth Motors and Parts:MCR03,MCR05,MCR10,
Hydraulic drum cutter.HDC05,HDC08,HDC11,HDC18,HDC50..
Rexroth Pumps and Parts:A10VSO,A2F,A2FE,A2FO,A6V,A7V,A4VSO,
Danfoss Orbit Motor: OMP,OMR,OMS,OMT,OMV,OMM,
Vickers: PVB,PVQ,PVH,V,Cartridge kits,
Komatsu pumps:705,704series
Daikin pump:V8,V15,V38 etc.
Hydraulic radial piston pump: YCY/MCY/SCY/PCY series ,RK series
Hydraulic Winch, Rexroth GFT,GFB Series Gearbox..

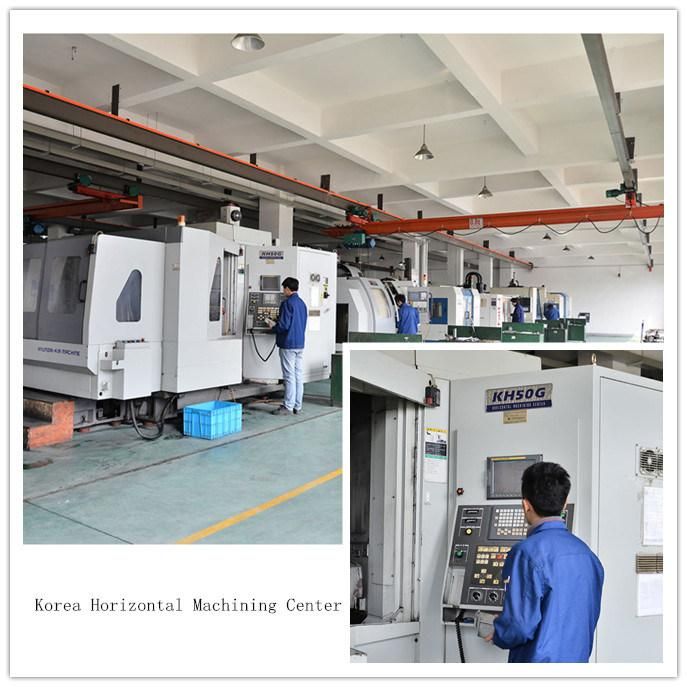

 High precision testing facilities and experienced inspectors.



Certifications

The spare parts of our HMS and HMCR series motors can completely replace the imported motor parts.

Meanwhile, our motor's performance is close to the imported motors'.

HMS02/hms05/hms08/hms11/hms18/hmcr03 series Motors have passed the quality tested by Chinese machinery testing Centre.

FAQ

Q: Are you a manufacturer or trading company?

A: Manufacturer

Q: Your payment?

A: 100% TT in advance

Q: Your minmun order quantity(MOQ)?

A: 1 set

Q: Warranty time?

A: 1 year
