High Torque 800n. M Motor Omsy-315 High Pressure Hyraulic Motor

Dongguan Blince Machinery & Electronics Co., Ltd.
  • Certification：CE, ISO9001
  • Speed：High Speed
  • Type：Hydraulic Motor
  • Flow Structure：Disc Distribution Flow
  • Internal Structure：Geroler Gear Set
  • Material：Cast Iron

Base Info

  • Model NO.：OMSY 315
  • Max Speed：470rpm
  • Max Torque：316nm
  • Max Pressure：15MPa
  • Flange：Square,Rhombic,Elliptical
  • Diameter of Shaft：32mm,31.75
  • Color：No Paint,Blue,Black,Silvery Grey
  • Hydraulic Fluid：Mineral Oil
  • Transport Package：Plastic Tube +Carton+Wooden Pallets
  • Specification：CE, CCC, ISO
  • Trademark：Blince
  • Origin：Dongguan, China
  • HS Code：8412291000
  • Production Capacity：1000 Per Month

Description


                                  OMSY series Orbital Hydraulic MotorDisplacement80cc,100cc,125cc,160cc,200cc,250cc,315cc,400cc,475ccFlange: E2: 2-Ø13.5 Rhomb-flange Ø106.4,pilot Ø82.5×6.3
 E4: 4-Ø13.5 Rhomb-flange Ø106.4,pilot Ø82.5×6.3
 F6: 6-Ø13.5 Rhomb-flange Ø106.4,pilot Ø82.5×2.6
 W: 4-Ø13.5 Wheel-flange Ø160 ,pilot Ø125×8
 E2B: 2-Ø14.3 Rhomb-flange Ø146.05,pilot Ø101.6×9.4
 SP: 4-Ø11.5 Square-flange Ø106.4,pilot Ø82.5×6.3
 D: 4-Ø11 Circle-flange Ø125 ,pilot Ø100×6
 E: 4-Ø13.5 Square-flange Ø127 ,pilot Ø101.6×6.3Output Shaft: A: Shaft Ø25 , parallel key 8×7×32
 B: Shaft Ø32 , parallel key 10×8×45
 D:Shaft Ø25.4 , parallel key6.35×6.35×25.4
 G: Shaft Ø31.75 ,parallel key 7.96×7.96×31.75
 F: Shaft Ø31.75 ,splined tooth 14-DP12/24
 FD: Long Shaft Ø31.75 ,splined tooth 14-DP12/24
 SL: shaft Ø34.85,Splined key 6-34.85×28.14×8.64
 T1: Cone-shaft Ø35 ,parallel key B6×6×20
 T3: Cone-shaftØ31.75 ,parallel key 7.96×7.96×31.75
 S1: Shaft Ø25.4 ,splined tooth SAE 6B
 I: Sub-shaft Ø22,splined tooth 13-DP16/32Port and drain port: D: G1/2 Manifold Mount 2-M10 , G1/4
 M: M22×1.5 Manifold Mount 2-M10 , M14×1.5
 S: 7/8-14UNF O-ring manifold 2-3/8-16 , 7/16-20UNF
 P: 1/2-14NPTF manifold 2-3/8-16UNC , 7/16-20UNFHigh Torque 800n. M Motor Omsy-315 High Pressure Hyraulic Motor
High Torque 800n. M Motor Omsy-315 High Pressure Hyraulic Motor
High Torque 800n. M Motor Omsy-315 High Pressure Hyraulic Motor

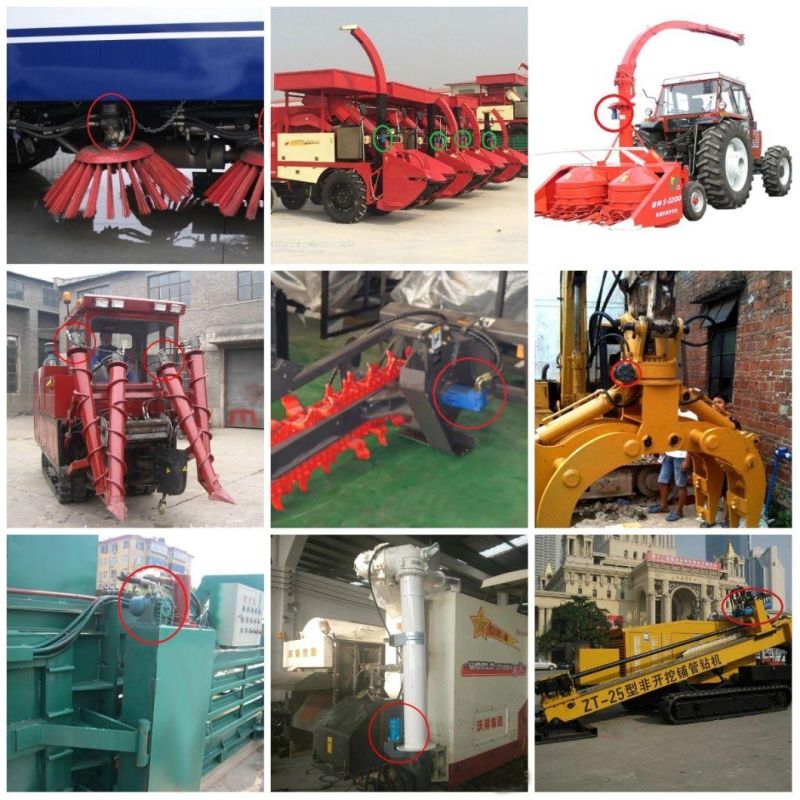

Application Scope:Any need for high torque, low speed applications.
* Sprinkler                              * Mini excavator
* Driven scraper conveyor     * Screw
* Baler                                    * Hydraulic Winch
* Fishing boat                        * Plastic injection mold machine
* Cleaner,                                   * Grass cutter
* Winches                              * Conveyors
* Slews                                   * Sweeper Drives
* Augers Cutters                    * Mowers
* Chippers                              * Drilling machine
-Municipal machinery, agriculture, forestry and construction equipment etc...
High Torque 800n. M Motor Omsy-315 High Pressure Hyraulic Motor

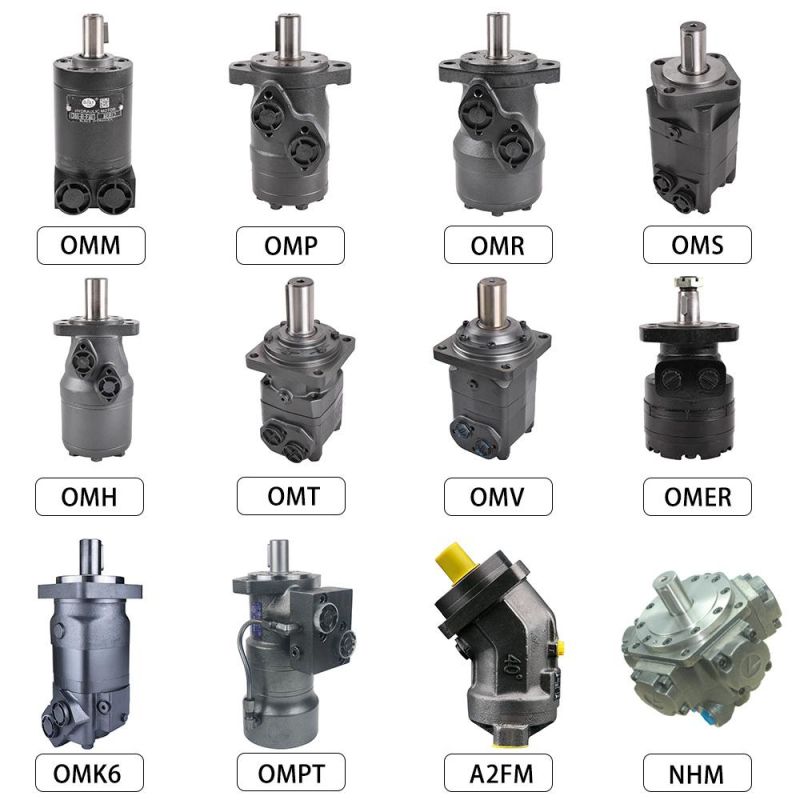

BLINCE hydraulic motor can substitue for:
Sauer-Danfoss orbit motor  DH,DS, OML/ OMM/ OMP/ OMR/ OMH/ OMER/ OMS/ OMT/ OMV series.
Eaton Char Lynn orbit motor  J (129-),H(101-),S(103-),T(158-),2000(104-),4000,6000,10000 series.
Bosch Rexroth orbit motor: MGX/ MGP,GXP/ MGR,GMR/ MGS,GMS / MGT,GMT/ MGV,GMV series
M+S orbit motor MLHM/MLHP/MLHR/ MLHH/ MLHS/MLHT/MLHV series
Parker orbit motor  OMP/TC/TB/TE/TH/TF/TL/TG/OMS/OMT series.
White orbit motor  WP/WG/WR/RS/DR/RE/CE/HB/WS/D9 series.
Brevini orbit Motor  BGM/ BG/ BR/ HPR/ HT Series
SAM orbit motor  BG/BR/BS/AR/HR/HT
Japen OPN ORB-GS Series
High Torque 800n. M Motor Omsy-315 High Pressure Hyraulic Motor
