• Model NO.：Z2FS10
• Fluid：Mineral Oil or Phospate Ester
• Temperature Rang：-30-80 Celsius Degree
• Material：Casting
• Porting Pattern：ISO 4401-05-04-0-05, Nfpa T3.5.1 R2, ANSI B93-7 D0
• Throttle Control Type：Meter in Control, Meter out Control
• Medium Viscosity Range：28-500mm2,S
• Weight：3.1kg
• Transport Package：Cartons and Pallets
• Specification：6, 10, 16, 22
• Trademark：Longli
• Origin：China
• HS Code：8412299090
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. Z2FS10 Fluid Mineral Oil or Phospate Ester Temperature Rang -30-80 Celsius Degree Material Casting Porting Pattern ISO 4401-05-04-0-05, Nfpa T3.5.1 R2, ANSI B93-7 D0 Throttle Control Type Meter in Control, Meter out Control Medium Viscosity Range 28-500mm2/S Weight 3.1kg Transport Package Cartons and Pallets Specification 6, 10, 16, 22 Trademark Longli Origin China HS Code 8412299090 Production Capacity 10000PCS/Month

Product Description

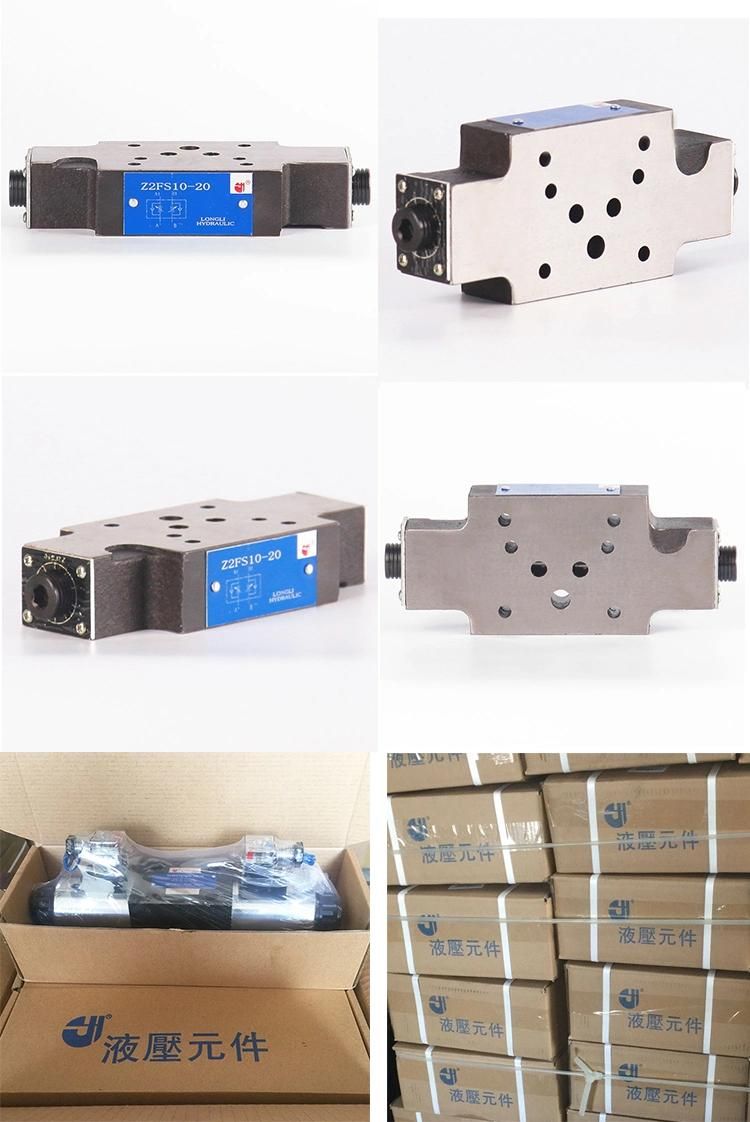

Z2FS10 Rexroth Sandwich plate Hydraulic Flow Control Valve

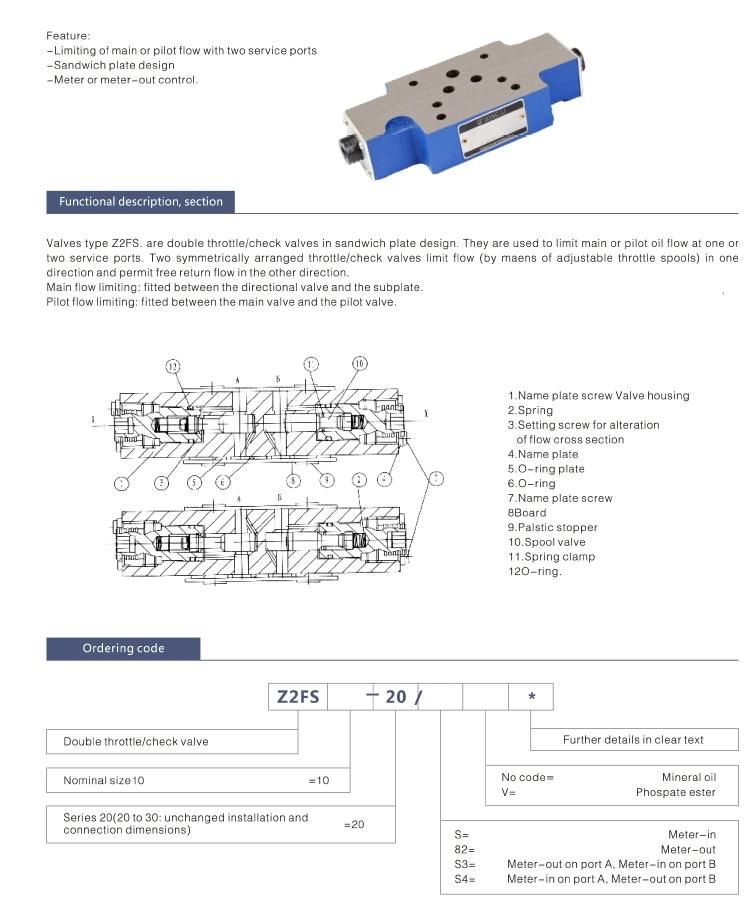

Rexroth Z2FS10 sandwich plate hydraulic Flow Control Valve consists of a one-way valve and a Throttle Valve in combination and two valve parallel in the oil line
When the hydraulic oil through the one-way valve directly, the throttle function is not available. Then the reverse hydraulic oil goes through the throttle valve, the check function is not available at the point but the throttle valve is working. The Throttle Check Valves are used for conventional hydraulic lift, dump body of the vehicle cargo box.
Rexroth Z2FS10 Sandwich plate Hydraulic Flow Control Valve
The ascending or descending speed of the cylinder can be adjusted if the throttle valve with the function of adjustment. Lift machine with this valve, the cylinder will down slowly and smoothly in order to keep the safe speed when the cylinder suddenly drops.

Model: Z2FS10
Place of Origin: Shandong,China (Mainland)
Power: Hydraulic
Standard or Nonstandard: Standard
Pressure: High Pressure
Structure: Check
Material: Casting
Temperature of Media: Medium Temperature
Media: Oil
Brand Name: Longli
Product description:: Rexroth Z2FS10, size 10mm, sandwich plate hydraulic flow control valve, double throttle
Connection type:: Sandwich plate connection
Porting pattern:: ISO 4401-05-04-0-05, NFPA T3.5.1 R2, ANSI B93-7 D05
Max. operation pressure:: 350bar
Max. flow rate:: 80L/min.
Throttle control type:: Meter in control, Meter out control
Working temperature:: -30/+80ºC of NBR seals and -20/+80ºC of FPM seals
Recommended medium filtration:: Class9 NAS 1638 at min. filter fineness β10≥75
Medium viscosity range:: 28-500mm2/S
Valve net weight:: 3.10Kgs
