• Model NO.：Z2FS6
• Fluid：Mineral Oil or Phospate Ester
• Temperature Rang：-30-80 Celsius Degree
• Weight：1kg
• Transport Package：Cartons and Pallets
• Specification：6, 10, 16, 22
• Trademark：Longli
• Origin：China
• HS Code：8412299090
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. Z2FS6 Fluid Mineral Oil or Phospate Ester Temperature Rang -30-80 Celsius Degree Weight 1kg Transport Package Cartons and Pallets Specification 6, 10, 16, 22 Trademark Longli Origin China HS Code 8412299090 Production Capacity 10000PCS/Month

Product Description

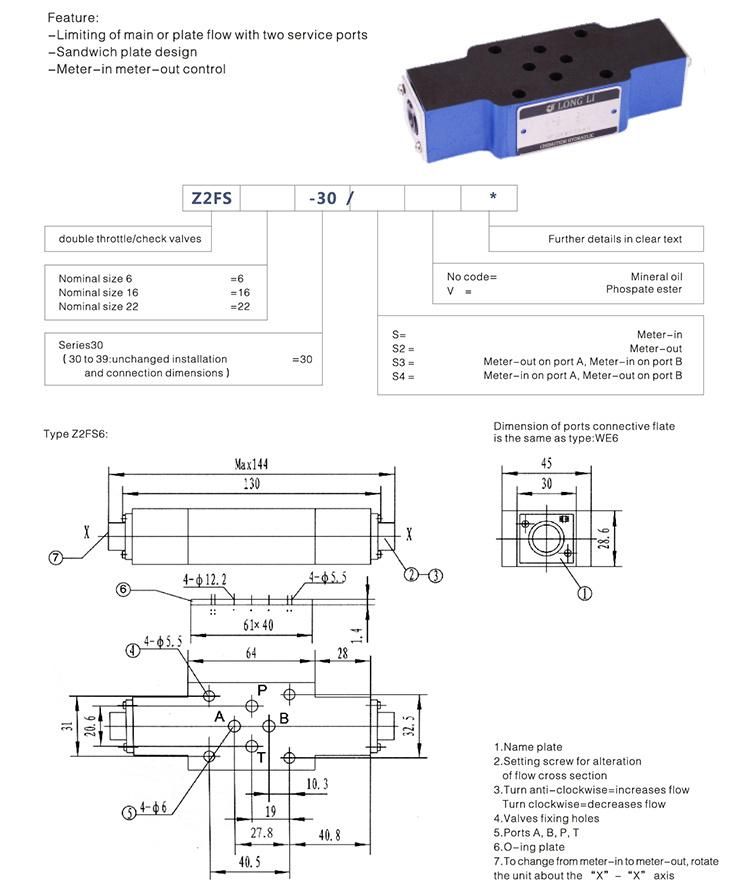

Z2FS6 Hydraulic Throttle Check Flow Control Valve



Rexroth Z2FS6 double throttle check sandwich flow control valve is functioned with throttle cross-section by changing the length or Throttle Valve to control fluid flow.
The double throttle check sandwich flow control valve in parallel is one-way throttle which is a simple one-way flow control valve used in the displacement pumphydraulic systems with the throttle valve and Pressure Relief Valve. The throttle control system can be composed of three types, into the oil throttle system, back to the oil throttle control system and bypass throttle system.
The hydraulic flow control Throttle Check Valve without the function of negative feedback of throttle can't compensate for load changes caused by the speed of instability, changes in general not only for load speed stability or less demanding applications.

Model: Z2FS6
Place of Origin: Shandong,China (Mainland)
Power: Hydraulic
Standard or Nonstandard: Standard
Pressure: High Pressure
Structure: Regulating
Material: Casting
Temperature of Media: Normal Temperature
Media: Oil
Brand Name: Longli
Product description:: Rexroth size 6mm, Z2FS6 series of twin throttle check sandwich flow control valve
Connection type:: Sandwich plate connection
Porting pattern:: DIN 24340, ISO 4401, NFPA 2002 D03
Installation bolts:: M5 Socket head cap screw GB/T70.1-10.9Class
Max. operation pressure:: 315bar
Max. flow rate:: 80L/min.
Working temperature:: -30/+80ºC of NBR seals and -20/+80ºC of FPM seals
Recommended medium filtration:: Class9 NAS 1638 at min. filter fineness β10≥75
Medium viscosity range:: 28-500mm2/S
Valve net weight: 1Kgs

Why Choose Us
1. With 30 years experience of hydraulic components in china.
2. Best manufacturing machinery, quality level, best price, best service.
3. We have very good and comprehensive after-sales service.
4. We have no MOQ for clients and tailor0made to clients request for our huge inventory.

Our Service
Pre-sale service: we provide presales in our first cooperation make clear your situation and give you some advice.
In-sale Service: We will track the production progress and quality, check the exact model and quantity one by one before delivering.
After-sale Service: We will provide a one year free warranty and lifetime maintenance. We will change all questions in 7*24hours if you buy from us.

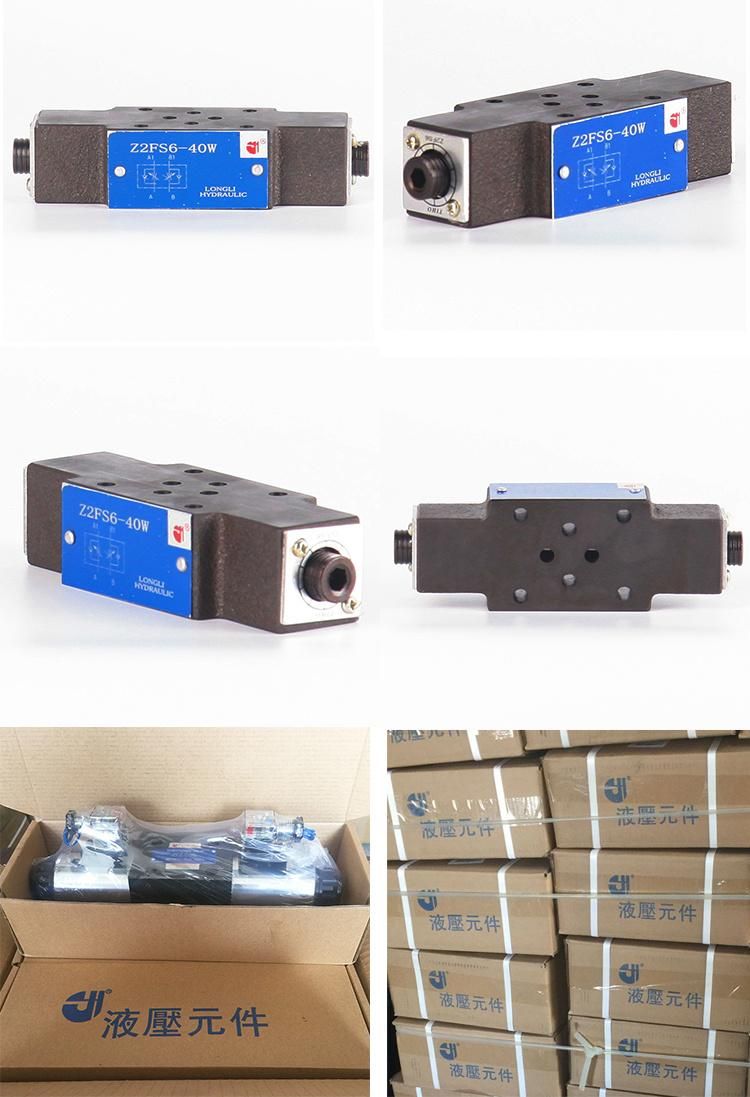

Packing
Eternal Brand, Neutral or Customer's requires label.
Neutral carton or same as the Customer's requires, export standard carton.
All cartons should be packed into the pallets more carefully.
All of the productions are inspected carefully one by one by QC before delivery.

Payment term:
T/T 50% as deposit in advance, the balance should be paid before delivery.100% L/C is acceptable. Western Union and PayPal is acceptable.
Transportation: By sea; By air; By truck; By express (DHL,TNT,UPS,FEDEX)
Trading term: FOB,CFR,CIF
